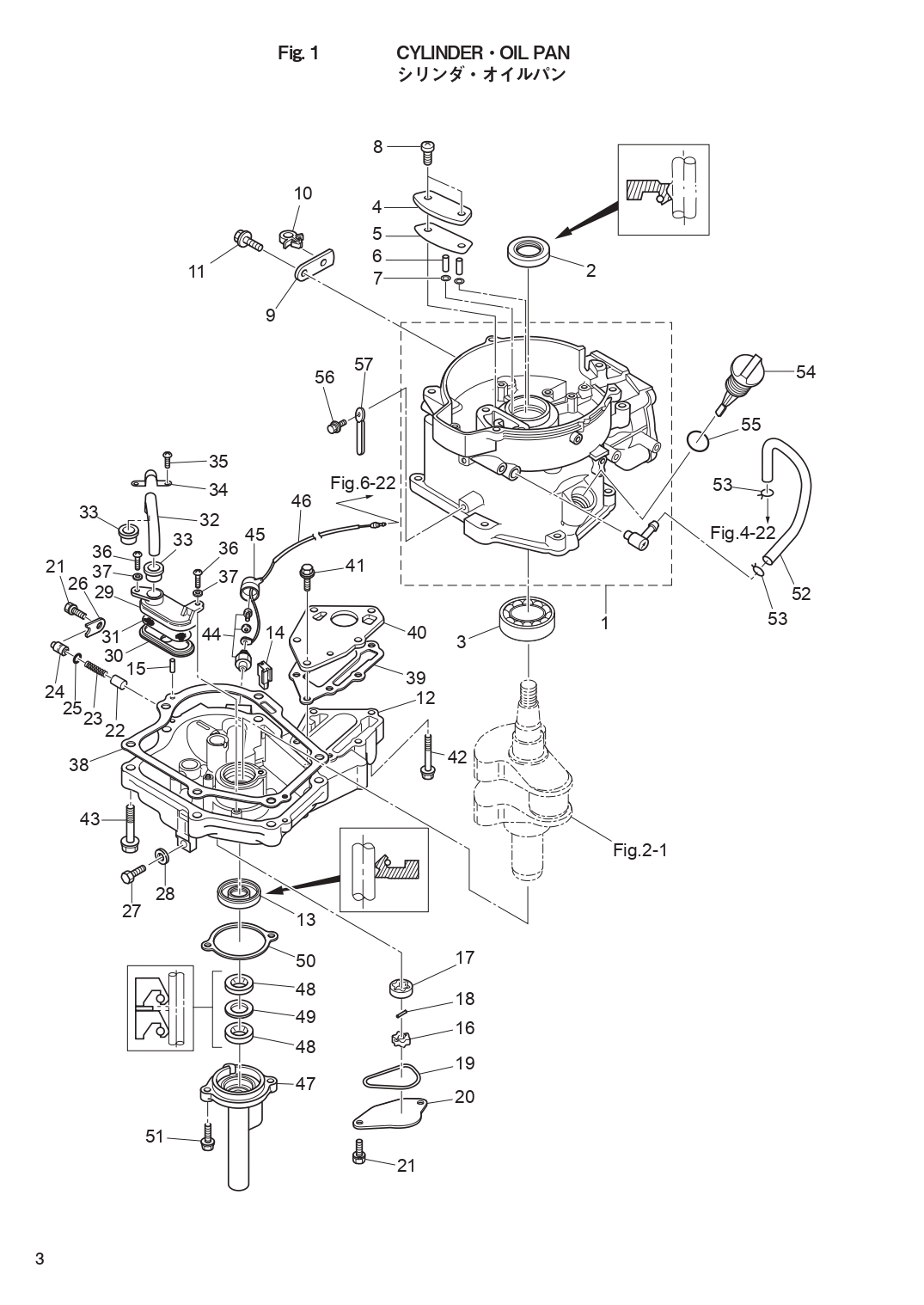

CYLINDER OIL PAN для Tohatsu MFS6D - 2021 года выпуска

№

Артикул

Название
1

3GRB01184-1 CYLINDER BLOCK

CYLINDER BLOCK
2

3AB-00121-0 OIL SEAL 20-35-7

OIL SEAL 20-35-7
3

9601-3-6205 BALL BEARING 6205
Upper Bearing

BALL BEARING 6205
Upper Bearing
4

3ASB07431-0 BREATHER CHAMBER COVER

BREATHER CHAMBER COVER
5

3AS-07432-0 GASKET

GASKET
6

3R1-07439-0 COLLAR 8-10-20.1

COLLAR 8-10-20.1
7

941403-0500 WAVE WASHER d=5

WAVE WASHER d=5
8

921521-6616 SCREW

SCREW
9

3GR-63505-0 CABLE HOLDER

CABLE HOLDER
10

3GR-06973-0 CLAMP 6-9.5L

CLAMP 6-9.5L
11

910103-5612 BOLT

BOLT
12

3AS-07709-0 OILPAN SUB-ASSY

OILPAN SUB-ASSY
13

3GR-00122-0 OIL SEAL 25-40-8

OIL SEAL 25-40-8
14

3H6-07404-0 GROMMET

GROMMET
15

345-01111-0 DOWEL PIN 6-12

DOWEL PIN 6-12
16

3H6-07601-0 OIL PUMP ROTOR (INNER)

OIL PUMP ROTOR (INNER)
17

3H6-07602-0 OIL PUMP ROTOR (OUTER)

OIL PUMP ROTOR (OUTER)
18

3H6-07603-0 PIN

PIN
19

3R1-07605-0 O-RING φ3.1

O-RING φ3.1
20

3H6-07606-0 OIL PUMP COVER

OIL PUMP COVER
21

910121-6616 BOLT

BOLT
22

3H6-07621-0 PLUNGER CONTROL

PLUNGER CONTROL
23

3H6-07622-0 SPRING

SPRING
24

3H6-07623-0 SEAT

SEAT
25

345-66021-0 O-RING 1.9-6.8

O-RING 1.9-6.8
26

3H6-67115-0 PLUNGER COVER

PLUNGER COVER
27

3H6-07705-1 DRAIN BOLT 10-14 P1.25

DRAIN BOLT 10-14 P1.25
28

3H6-07406-0 WASHER 10.2-19-1

WASHER 10.2-19-1
29

3H6-07411-0 STRAINER BODY

STRAINER BODY
30

3H6-07412-0 STRAINER CAP

STRAINER CAP
31

3H6-07413-0 MESH

MESH
32

3H6-07415-0 PIPE

PIPE
33

3H6-07416-0 SEAL

SEAL
34

3H6-07417-0 STRAINER STOPPER

STRAINER STOPPER
35

921521-6512 SCREW

SCREW
36

3C8-02420-0 BOLT 5-16

BOLT 5-16
37

940121-0500 WASHER

WASHER
38

3H6-07402-0 OILPAN GASKET

OILPAN GASKET
39

3H6-02305-0 EXHAUST COVER GASKET

EXHAUST COVER GASKET
40

3H6-02302-1 EXHAUST COVER (INNER)

EXHAUST COVER (INNER)
41

9101F4-5620 BOLT

BOLT
42

9101F4-5640 BOLT

BOLT
43

910124-5840 BOLT

BOLT
44

3H6-07611-1 OIL PRESSURE SWITCH

OIL PRESSURE SWITCH
45

3KY-07612-0 GROMMET

GROMMET
46

3GR-07613-0 OIL PRESSURE SWITCH LEAD WIRE L=240

OIL PRESSURE SWITCH LEAD WIRE L=240
47

369-01210-4 CRANKCASE HEAD

CRANKCASE HEAD
48

3GR-01215-0 OIL SEAL 10.1-25-7

OIL SEAL 10.1-25-7
49

369-01217-0 SPACER 19-24.8-1

SPACER 19-24.8-1
50

3GR-01214-0 CRANKCASE HEAD GASKET

CRANKCASE HEAD GASKET
51

910103-5620 BOLT

BOLT
52

3R1-07435-0 BREATHER HOSE

BREATHER HOSE
53

3C7-02215-0 CLIP φ12

CLIP φ12
54

3H6-07421-0 OIL LEVEL GAUGE

OIL LEVEL GAUGE
55

3H6-07422-0 O-RING 2.6-18.7

O-RING 2.6-18.7
56

910103-5612 BOLT

BOLT
57

3PR-06972-0 CLAMP 6.5-47.5P

CLAMP 6.5-47.5P
