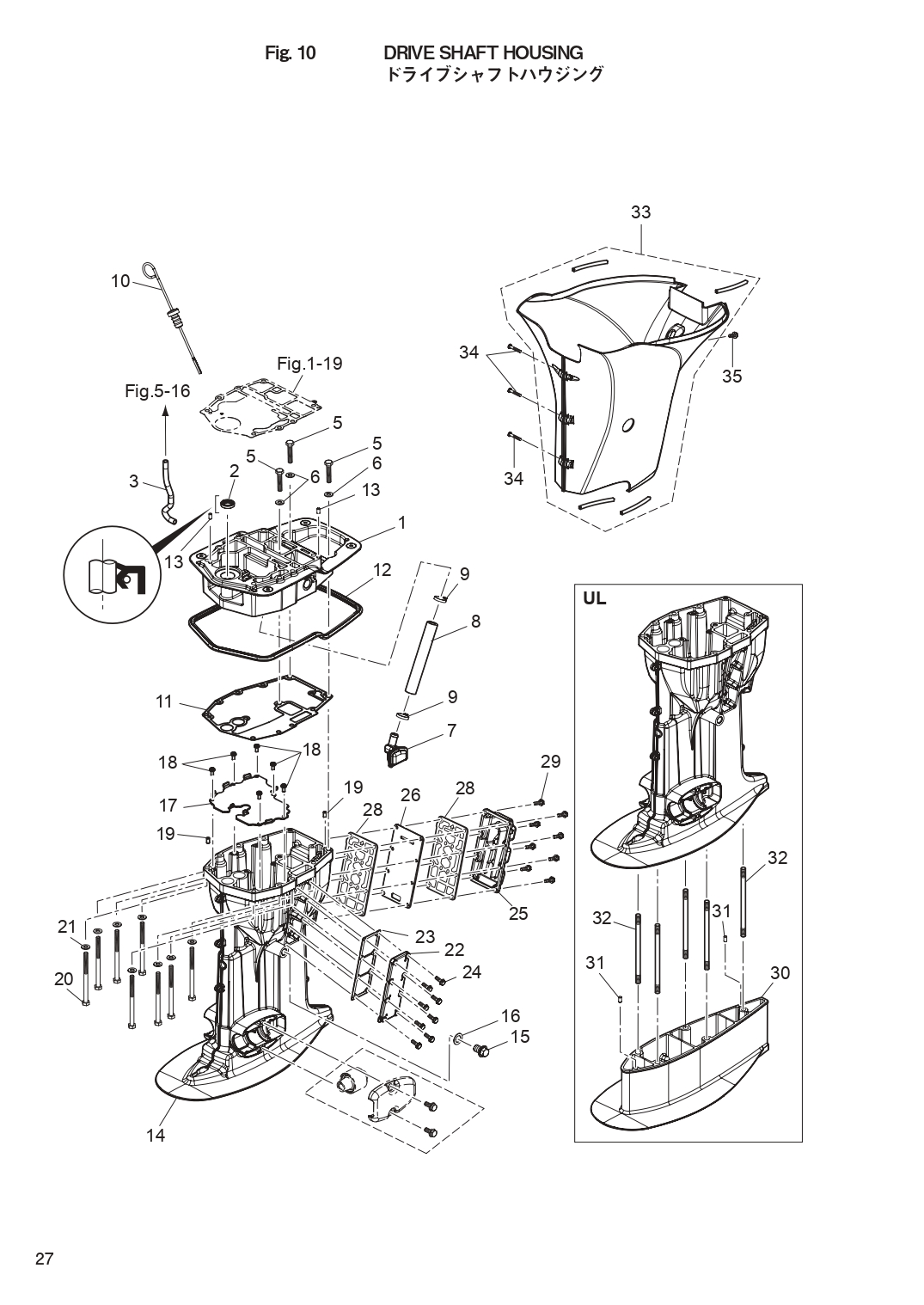

DRIVE SHAFT (HOUSING) для Tohatsu MFS60A - 2021 года выпуска`

№

Артикул

Название
1

3KYQ01300-0 ENGINE BASEMENT ASSY

ENGINE BASEMENT ASSY

31 470 ₽
2

346-01215-0 OIL SEAL 16-28-6

OIL SEAL 16-28-6

920 ₽
3

3KY-65210-0 COOLING HOSE
Engine Basement-Fuel Cooler

COOLING HOSE
Engine Basement-Fuel Cooler

760 ₽
5

3LD-01012-0 CYLINDER HEAD BOLT

CYLINDER HEAD BOLT

500 ₽
6

940103-0800 WASHER

WASHER

120 ₽
7

3KY-07710-0 OIL STRAINER ASSY

OIL STRAINER ASSY

2 700 ₽
8

3KY-07715-0 PIPE L=150
Engine Basement-Oil Strainer

PIPE L=150
Engine Basement-Oil Strainer

4 730 ₽
9

369-84398-1 BAND 202

BAND 202

210 ₽
10

3KY-07721-0 OIL LEVEL GAUGE

OIL LEVEL GAUGE

3 010 ₽
11

3KY-61012-0 DRIVE SHAFT HOUSING GASKET t=0.5

DRIVE SHAFT HOUSING GASKET t=0.5

3 360 ₽
12

3KY-67116-0 ENGINE BASEMENT SEAL

ENGINE BASEMENT SEAL

1 120 ₽
13

345-01111-0 DOWEL PIN 6-12

DOWEL PIN 6-12

170 ₽
14

3KYQ61030-1 DRIVE SHAFT HOUSING ASSY (L)

DRIVE SHAFT HOUSING ASSY (L)

63 020 ₽
14

3KYW61030-1 DRIVE SHAFT HOUSING ASSY (L)
for White Model

DRIVE SHAFT HOUSING ASSY (L)
for White Model

63 020 ₽
15

3R3-07705-1 DRAIN BOLT 14-14

DRAIN BOLT 14-14

880 ₽
16

3R3-07406-0 WASHER 14.5-24-1

WASHER 14.5-24-1

290 ₽
17

3KY-07740-0 GUIDE PLATE

GUIDE PLATE

1 900 ₽
18

921503-5512 SCREW

SCREW

70 ₽
19

345-01111-0 DOWEL PIN 6-12

DOWEL PIN 6-12

170 ₽
20

3B7-61018-2 BOLT 8-115

BOLT 8-115

610 ₽
21

9401E3-0800 WASHER

WASHER

120 ₽
22

3KYQ61028-0 COVER

COVER

2 370 ₽
22

3KYW61028-0 COVER
for White Model

COVER
for White Model

2 370 ₽
23

3KY-61029-0 GASKET

GASKET

710 ₽
24

9101E3-5620 BOLT

BOLT

360 ₽
25

3KYQ61208-0 IDLE EXHAUST PORT COVER

IDLE EXHAUST PORT COVER

5 850 ₽
25

3KYW61208-0 IDLE EXHAUST PORT COVER
for White Model

IDLE EXHAUST PORT COVER
for White Model

5 850 ₽
26

3KY-62114-0 PLATE

PLATE

3 010 ₽
28

3KY-61220-0 IDLE EXHAUST PORT GASKET

IDLE EXHAUST PORT GASKET

710 ₽
29

9101E3-5620 BOLT

BOLT

360 ₽
30

3KYQ61110-0 EXTENSION HOUSING (UL)
for Transom "UL"

EXTENSION HOUSING (UL)
for Transom "UL"

48 760 ₽
31

3AB-01111-0 DOWEL PIN 6-12
for Transom "UL"

DOWEL PIN 6-12
for Transom "UL"

330 ₽
32

3KY-61111-0 STUD M10-145
for Transom "UL"

STUD M10-145
for Transom "UL"

1 750 ₽
33

3KYQ61225-0 APRON ASSY
for Transom "L,UL"

APRON ASSY
for Transom "L,UL"

20 450 ₽
33

3KYW61225-0 APRON ASSY
for Transom "L" for White Model

APRON ASSY
for Transom "L" for White Model

20 450 ₽
34

3F3-02423-0 TAPPING SCREW 5-30
for Transom "L,UL"

TAPPING SCREW 5-30
for Transom "L,UL"

140 ₽
34

3F3-02423-0 TAPPING SCREW 5-30
for White Model

TAPPING SCREW 5-30
for White Model

140 ₽
35

9101E3-5616 BOLT

BOLT

320 ₽
