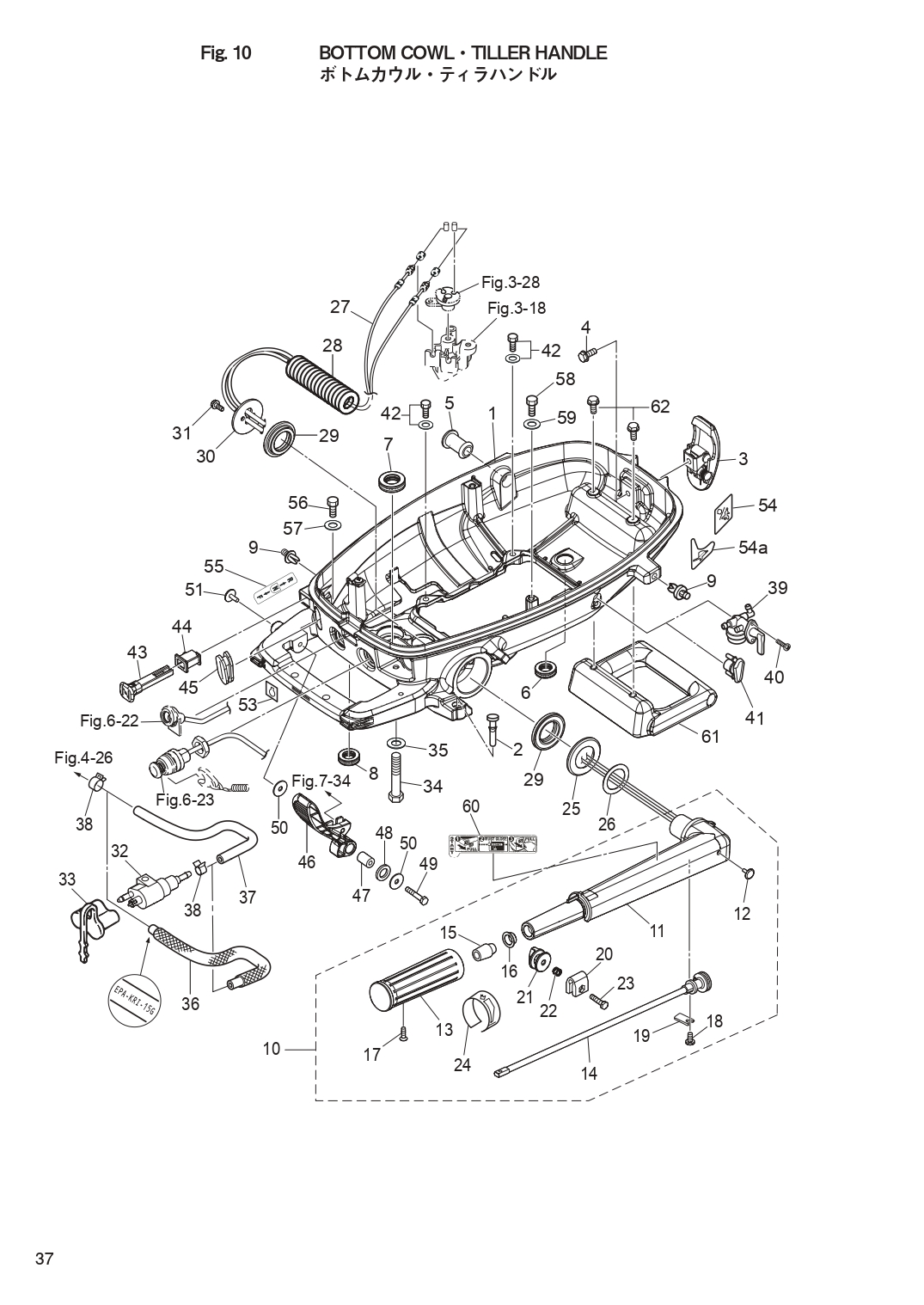

BOTTOM COWL TILLER HANDLE для Tohatsu MFS5D - 2021 года выпуска`
-
№АртикулНазвание
-
13WLQ67100-0 BOTTOM COWLBOTTOM COWL
-
23GR-67161-0 GROMMET 22-3GROMMET 22-3
-
33AA-67120-1 COWL LATCH ASSYCOWL LATCH ASSY
-
4910103-5616 BOLTBOLT
-
53GR-67187-0 GROMMET 15.5-27GROMMET 15.5-27
-
6338-67163-0 GROMMET 18-2.5GROMMET 18-2.5
-
73B7-76093-0 GROMMET 25-5GROMMET 25-5
-
8345-67117-0 GROMMET 17-2.7GROMMET 17-2.7
-
9350-67154-0 PLASTIC RIVET 6.5PLASTIC RIVET 6.5
-
103V1Q63003-5 TILLER HANDLE ASSYTILLER HANDLE ASSY
-
113V1Q63011-3 * TILLER HANDLE* TILLER HANDLE
-
12350-67154-0 * PLASTIC RIVET 6.5* PLASTIC RIVET 6.5
-
133R3-63012-0 * GRIP* GRIP
-
143V1-63041-0 * THROTTLE SHAFT* THROTTLE SHAFT
-
153H6-63048-0 * THROTTLE SHAFT DAMPER* THROTTLE SHAFT DAMPER
-
163H6-63510-0 * BUSHING 14-15.8-7* BUSHING 14-15.8-7
-
17920803-0518 * SCREW* SCREW
-
189215E3-0612 * SCREW* SCREW
-
193B2-63063-0 * THROTTLE SHAFT SUPPORT* THROTTLE SHAFT SUPPORT
-
203V1-63035-1 * FRICTION PIECE* FRICTION PIECE
-
213V1-63077-0 * ADJUSTING NUT* ADJUSTING NUT
-
223V1-63036-0 * SPRING* SPRING
-
23910103-0625 * BOLT* BOLT
-
243V9-72019-0 * THROTTLE DECAL* THROTTLE DECAL
-
253H6-63026-0 SPACER 33.5-55-3.3SPACER 33.5-55-3.3
-
263B2-63108-0 WASHER 30-45-1WASHER 30-45-1
-
273GR-63600-0 THROTTLE WIRETHROTTLE WIRE
-
283BA-06133-0 PROTECTOR φ10.7-180PROTECTOR φ10.7-180
-
293H6-63102-0 BUSHINGBUSHING
-
303GR-63107-0 COVERCOVER
-
31910103-5616 BOLTBOLT
-
32394-70260-0 FUEL CONNECTOR (MALE)FUEL CONNECTOR (MALE)
-
333H6-70262-0 FUEL CONNECTOR PROTECTORFUEL CONNECTOR PROTECTOR
-
34910103-0625 BOLTBOLT
-
35940203-0600 WASHERWASHER
-
363JF-02160-0 FUEL HOSE W/PROTECTOR 353-40-30
Low Permeation Parts USA EPA-KRI-15GFUEL HOSE W/PROTECTOR 353-40-30
Low Permeation Parts USA EPA-KRI-15G -
373JG-02203-0 FUEL HOSE 353-40-30
Separate Fuel Tank Model STD Connector-Fuel PunpFUEL HOSE 353-40-30
Separate Fuel Tank Model STD Connector-Fuel Punp -
383GT-35143-0 CLIP φ9.4
Separate Fuel Tank ModelCLIP φ9.4
Separate Fuel Tank Model -
393H9-70311-0 FUEL COCK ASSY
Dual Fuel Tank ModelFUEL COCK ASSY
Dual Fuel Tank Model -
403GR-83821-0 SCREW M4-10
Dual Fuel Tank ModelSCREW M4-10
Dual Fuel Tank Model -
413GR-67129-0 GROMMET
Separate Fuel Tank ModelGROMMET
Separate Fuel Tank Model -
429101E3-5616 BOLTBOLT
-
433H6-67151-1 CHOKE RODCHOKE ROD
-
443GR-67104-0 CHOKE ROD BUSHINGCHOKE ROD BUSHING
-
453GR-66260-0 GROMMET 30.2-12.7GROMMET 30.2-12.7
-
463GR-66110-0 SHIFT LEVERSHIFT LEVER
-
473GR-63066-0 COLLAR 15.9-17-9COLLAR 15.9-17-9
-
483GR-63108-0 WASHER 30-45-1WASHER 30-45-1
-
493H6-62445-0 BOLT 6-35BOLT 6-35
-
50345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
513A3-76037-0 CABLE TERMINAL PLUGCABLE TERMINAL PLUG
-
533BA-76199-0 OIL PRESSURE DECALOIL PRESSURE DECAL
-
543WL-72024-0 FUEL LEVER DECALFUEL LEVER DECAL
-
54a3WJ-72024-0 FUEL LEVER DECALFUEL LEVER DECAL
-
553WL-67578-0 SHIFT DECALSHIFT DECAL
-
56910103-0612 BOLT
Dual Fuel Tank ModelBOLT
Dual Fuel Tank Model -
57345-05122-1 WASHER 6.5-23-1.5
Dual Fuel Tank ModelWASHER 6.5-23-1.5
Dual Fuel Tank Model -
58910103-0612 BOLT
Separate Fuel Tank ModelBOLT
Separate Fuel Tank Model -
59345-05122-1 WASHER 6.5-23-1.5
Separate Fuel Tank ModelWASHER 6.5-23-1.5
Separate Fuel Tank Model -
613WL-61199-0 CARRYING HANDLECARRYING HANDLE
-
623V1-60108-0 PRE-COATED BOLT 6-16PRE-COATED BOLT 6-16
