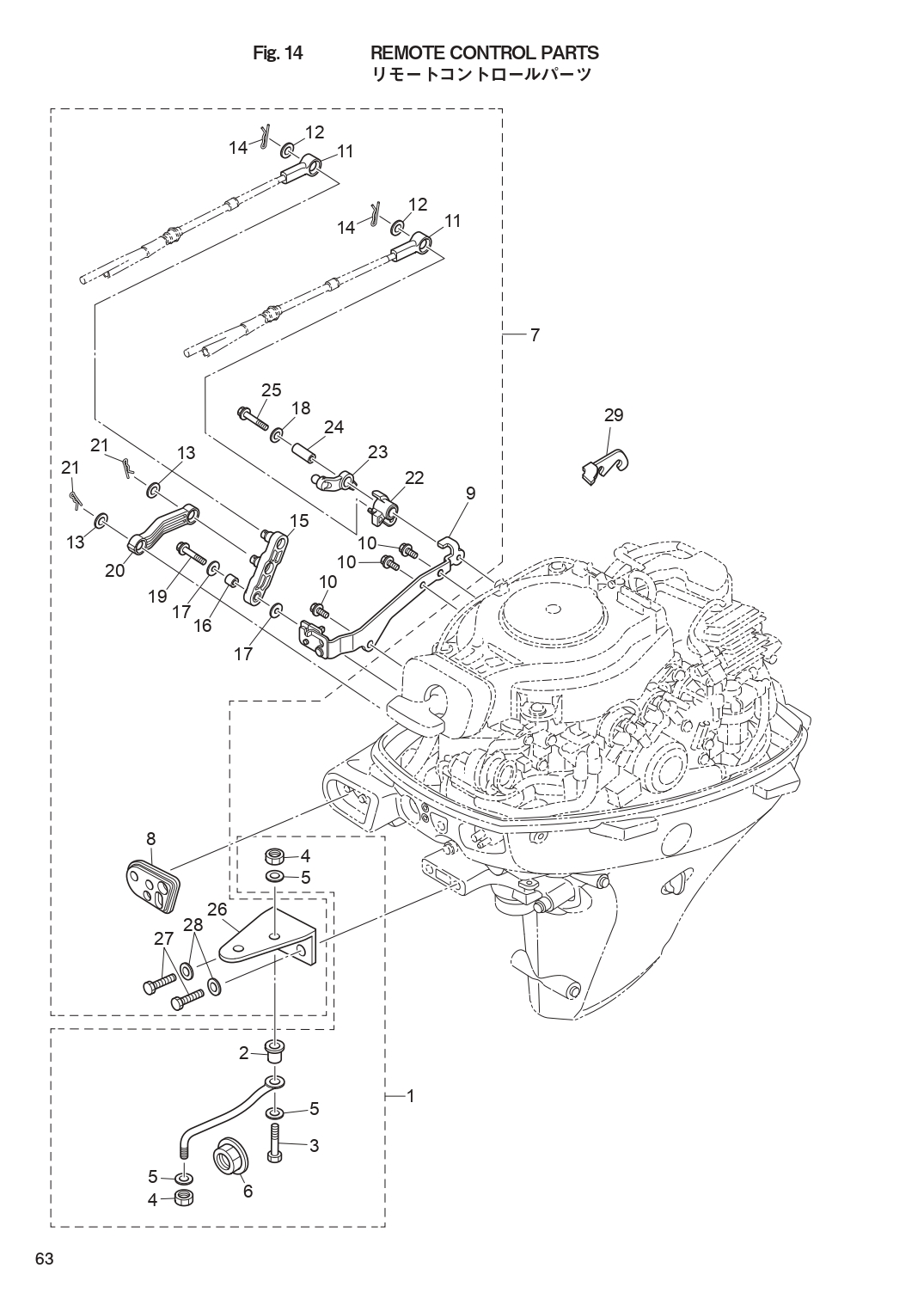

REMOTE CONTROL PARTS для Tohatsu MFS20E - 2021 года выпуска`
-
№АртикулНазвание
-
13BA-84905-0 DRAG LINK ASSYDRAG LINK ASSY
-
23E0-84914-0 * SPACER 9.6-19-13* SPACER 9.6-19-13
-
33C8-84964-0 * BOLT 3/8-35* BOLT 3/8-35
-
4353-84918-0 * NYLON NUT 3/8-24UNF* NYLON NUT 3/8-24UNF
-
5353-84916-0 * WASHER 9.6-18-2* WASHER 9.6-18-2
-
63F3-84908-0 * SEAL RING* SEAL RING
-
73RS-83880-0 REMOTE CONTROL FITTING ASSYREMOTE CONTROL FITTING ASSY
-
83RS-83732-0 * GROMMET* GROMMET
-
93RS-83820-0 * CABLE CLIP ASSY* CABLE CLIP ASSY
-
10910103-5616 * BOLT* BOLT
-
113B7-83715-2 * CABLE JOINT* CABLE JOINT
-
123AA-83719-0 * WASHER 8.5-18-1.6* WASHER 8.5-18-1.6
-
133AA-83719-0 * WASHER 8.5-18-1.6* WASHER 8.5-18-1.6
-
14951603-0800 * SNAP PIN d=8* SNAP PIN d=8
-
153RS-66122-0 * SHIFT ARM* SHIFT ARM
-
163KY-76079-0 * COLLAR 6.5-10.5-9.3* COLLAR 6.5-10.5-9.3
-
173C8-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
183C8-66308-0 * WASHER 6-16-1.5* WASHER 6-16-1.5
-
19910103-0625 * BOLT* BOLT
-
203RS-66134-0 * SHIFT LEVER ROD* SHIFT LEVER ROD
-
21951603-0800 * SNAP PIN d=8* SNAP PIN d=8
-
223RS-63751-0 * THROTTLE ARM* THROTTLE ARM
-
233RS-63612-0 * THROTTLE OPENER* THROTTLE OPENER
-
243RS-66124-0 * COLLAR* COLLAR
-
25910103-0640 * BOLT* BOLT
-
263RS-83830-0 * STEERING HOOK PLATE* STEERING HOOK PLATE
-
279111E3-1030 * BOLT* BOLT
-
289401E3-1000 * WASHER* WASHER
