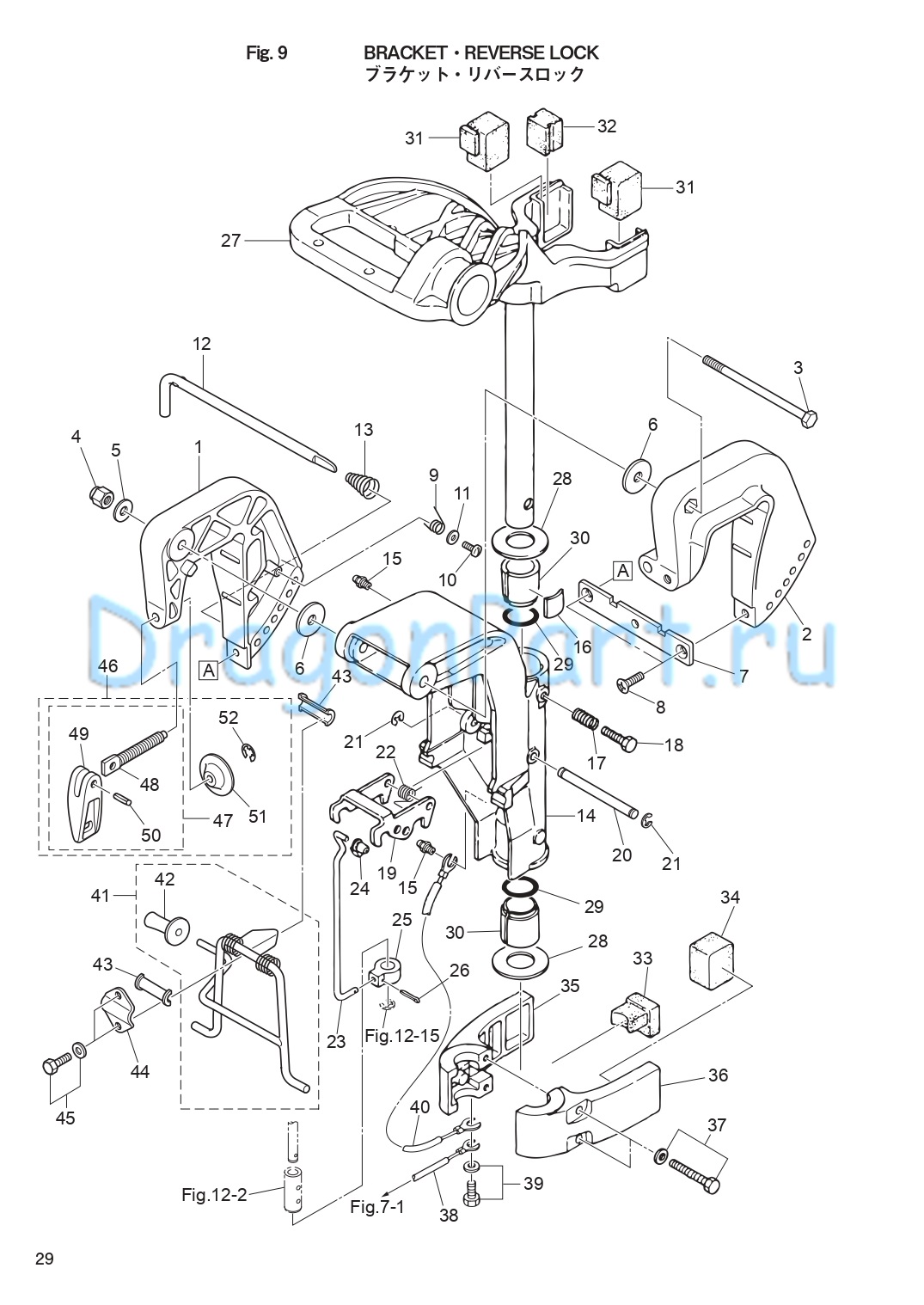

BRACKET REVERSE LOCK для Tohatsu M6B - 2021 года выпуска`
-
№АртикулНазвание
-
13V1Q62112-1 CLAMP BRACKET (R)
Starboard SideCLAMP BRACKET (R)
Starboard Side -
23V1Q62113-1 CLAMP BRACKET (L)
Port SideCLAMP BRACKET (L)
Port Side -
3309-62115-2 BOLT 8-122
Bracket BoltBOLT 8-122
Bracket Bolt -
4930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
59401E3-0800 WASHERWASHER
-
6307-62116-1 WASHER 8.5-28-1WASHER 8.5-28-1
-
73B2-62118-0 DISTANCE PLATEDISTANCE PLATE
-
89216E3-0612 SCREWSCREW
-
9369-62146-1 STERN BRACKET SPRINGSTERN BRACKET SPRING
-
10921703-0406 SCREWSCREW
-
11369-62147-0 WASHER 4.3-16-1.5WASHER 4.3-16-1.5
-
12350-62121-2 THRUST RODTHRUST ROD
-
13369-62122-2 THRUST ROD SPRINGTHRUST ROD SPRING
-
143B2Q62310-0 SWIVEL BRACKETSWIVEL BRACKET
-
15344-67177-1 GREASE FITTINGGREASE FITTING
-
16345-62441-0 FRICTION PIECEFRICTION PIECE
-
17346-62421-1 FRICTION SPRINGFRICTION SPRING
-
189101E3-0830 BOLTBOLT
-
193B2-66322-1 REVERSE LOCKREVERSE LOCK
-
203B2-66321-1 REVERSE LOCK RODREVERSE LOCK ROD
-
21945303-0500 E-RING d=5E-RING d=5
-
223B2-66315-0 REVERSE LOCK SPRINGREVERSE LOCK SPRING
-
233B2-66305-0 REVERSE LOCK LINKREVERSE LOCK LINK
-
24345-05224-0 ROD SNAP 5-2.5ROD SNAP 5-2.5
-
253B2-66302-0 REVERSE LOCK LINK JOINTREVERSE LOCK LINK JOINT
-
26951503-0214 SPLIT PINSPLIT PIN
-
273B2Q62010-0 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
283B2-62422-0 THRUST PLATE (UPPER) 22-44-2THRUST PLATE (UPPER) 22-44-2
-
293B2-62415-0 O-RING 4.25-19.5O-RING 4.25-19.5
-
303B2-62417-0 BUSHINGBUSHING
-
313B2-61301-0 RUBBER MOUNT (UPPER)RUBBER MOUNT (UPPER)
-
323B2-61337-0 DAMPER (UPPER)DAMPER (UPPER)
-
333B2-61336-0 DAMPER (LOWER)DAMPER (LOWER)
-
343B2-61302-0 RUBBER MOUNT (LOWER)RUBBER MOUNT (LOWER)
-
353K9Q61401-0 MOUNT BRACKET (R)
Starboard SideMOUNT BRACKET (R)
Starboard Side -
363K9Q61402-0 MOUNT BRACKET (L)
Port SideMOUNT BRACKET (L)
Port Side -
379101E3-5640 BOLTBOLT
-
383A3-62396-1 GROUND L=110
Drive Shaft Housing-Mount BracketGROUND L=110
Drive Shaft Housing-Mount Bracket -
39910103-5612 BOLTBOLT
-
403A3-62396-1 GROUND L=110
Mount Bracket-Swivel BracketGROUND L=110
Mount Bracket-Swivel Bracket -
413V1-62431-1 TILT STOPPER ASSYTILT STOPPER ASSY
-
423AS-62433-0 * TILT STOPPER GRIP* TILT STOPPER GRIP
-
43393-62437-1 BUSHINGBUSHING
-
44369-62439-1 SETTING PLATESETTING PLATE
-
459101E3-5612 BOLTBOLT
-
463V1Q62105-1 CLAMP SCREW KITCLAMP SCREW KIT
-
473V1Q62108-1 * CLAMP SCREW ASSY* CLAMP SCREW ASSY
-
483M3-62106-0 ** CLAMP SCREW** CLAMP SCREW
-
493RSQ62102-0 ** CLAMP SCREW HANDLE** CLAMP SCREW HANDLE
-
50951403-0622 ** SPRING PIN** SPRING PIN
-
51332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
52945303-0600 * E-RING d=6* E-RING d=6
