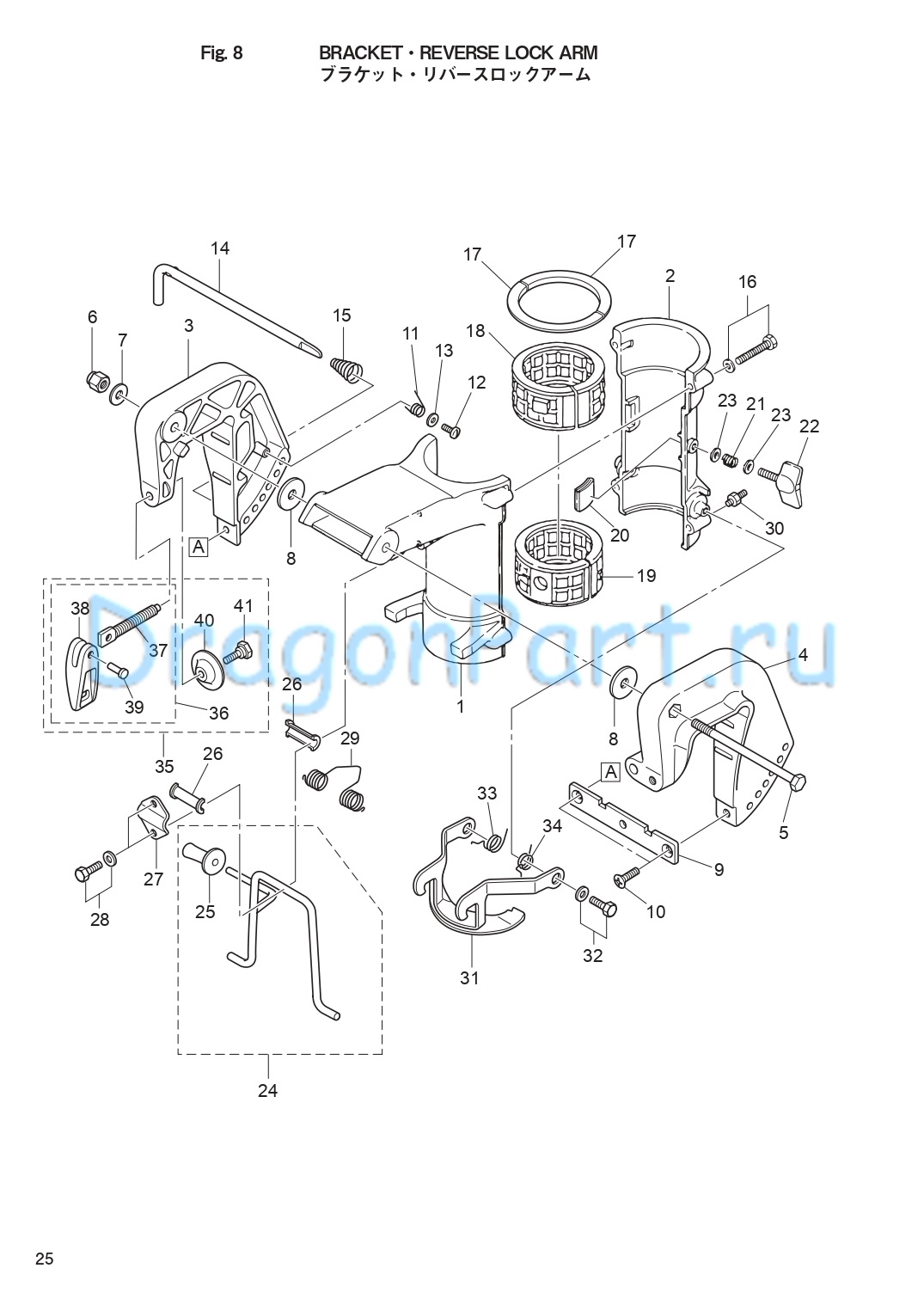

BRACKET REVERSE LOCK ARM для Tohatsu M5B - 2021 года выпуска`
-
№АртикулНазвание
-
1369Q62391-2 SWIVEL BRACKETSWIVEL BRACKET
-
2393Q62392-1 SWIVEL BRACKETSWIVEL BRACKET
-
3369Q62112-3 CLAMP BRACKET (R)
Starboard SideCLAMP BRACKET (R)
Starboard Side -
4369Q62113-2 CLAMP BRACKET (L)
Port SideCLAMP BRACKET (L)
Port Side -
5309-62115-2 BOLT 8-122BOLT 8-122
-
6930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
79401E3-0800 WASHERWASHER
-
8307-62116-1 WASHER 8.5-28-1WASHER 8.5-28-1
-
9369-62118-0 DISTANCE PLATEDISTANCE PLATE
-
109216E3-0612 SCREWSCREW
-
11369-62146-1 STERN BRACKET SPRINGSTERN BRACKET SPRING
-
12921703-0406 SCREWSCREW
-
13369-62147-0 WASHER 4.3-16-1.5WASHER 4.3-16-1.5
-
14350-62121-2 THRUST RODTHRUST ROD
-
15369-62122-2 THRUST ROD SPRINGTHRUST ROD SPRING
-
169101E3-5635 BOLTBOLT
-
17369-62422-0 THRUST PLATE (UPPER)THRUST PLATE (UPPER)
-
18393-62416-1 BUSHINGBUSHING
-
19393-62417-1 BUSHINGBUSHING
-
20369-62441-1 FRICTION PIECEFRICTION PIECE
-
21309-62446-1 SPRINGSPRING
-
223GT-62442-0 FRICTION KNOBFRICTION KNOB
-
239401E3-0600 WASHERWASHER
-
243AS-62431-0 TILT STOPPER ASSYTILT STOPPER ASSY
-
253AS-62433-0 * TILT STOPPER GRIP* TILT STOPPER GRIP
-
26393-62437-1 BUSHINGBUSHING
-
27369-62439-1 SETTING PLATESETTING PLATE
-
289101E3-5612 BOLTBOLT
-
29369-62434-0 SPRINGSPRING
-
30344-67177-1 GREASE FITTINGGREASE FITTING
-
31369-66313-0 REVERSE LOCK ARMREVERSE LOCK ARM
-
329101E3-5614 BOLTBOLT
-
33369-66338-0 REVERSE LOCK SPRING (R)REVERSE LOCK SPRING (R)
-
34369-66339-0 REVERSE LOCK SPRING (L)REVERSE LOCK SPRING (L)
-
353GTQ62105-1 CLAMP SCREW KITCLAMP SCREW KIT
-
363GTQ62108-1 * CLAMP SCREW ASSY* CLAMP SCREW ASSY
-
37369-62106-1 ** CLAMP SCREW** CLAMP SCREW
-
383ABQ62102-0 ** CLAMP SCREW HANDLE** CLAMP SCREW HANDLE
-
393C8-62104-2 ** RIVET 3-22** RIVET 3-22
-
40332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
413C8-62107-0 * SHOULDER BOLT* SHOULDER BOLT
