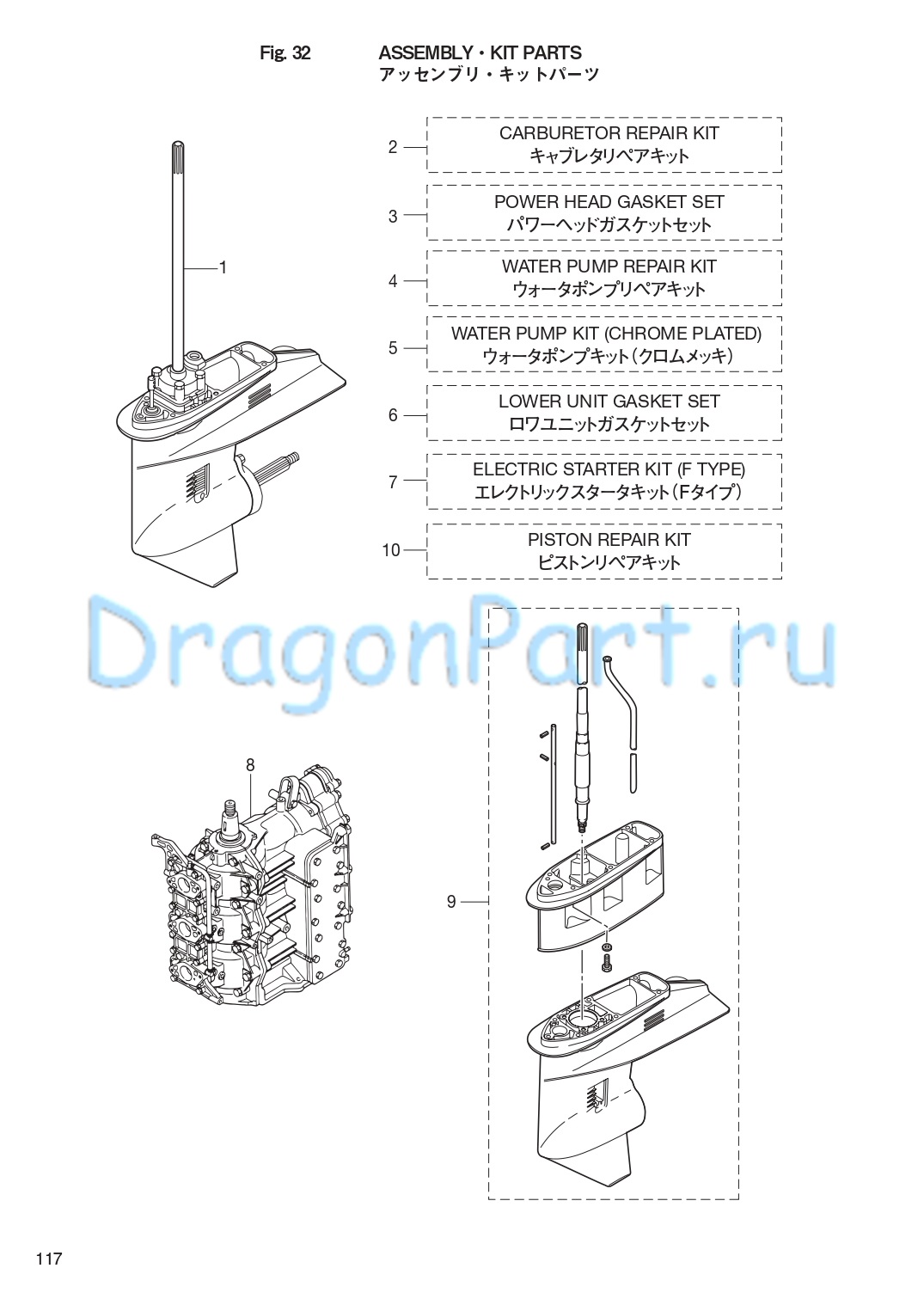

ASSEMBLY KIT для Tohatsu MW50D2 - 2020 года выпуска
-
№АртикулНазвание
-
13T5Q87301-3 LOWER UNIT ASSY (S)
M40/50D2, MX50D2 for Transom “S”LOWER UNIT ASSY (S)
M40/50D2, MX50D2 for Transom “S” -
13T5Q87302-3 LOWER UNIT ASSY (L)
M40/50D2, MX50D2 for Transom “L”LOWER UNIT ASSY (L)
M40/50D2, MX50D2 for Transom “L” -
13T5Q87304-3 LOWER UNIT ASSY (UL)
M40/50D2, MX50D2 for Transom "UL"LOWER UNIT ASSY (UL)
M40/50D2, MX50D2 for Transom "UL" -
13S7Q87302-5 LOWER UNIT ASSY (L)
MW50D2, MWX50D2 for Transom “L”LOWER UNIT ASSY (L)
MW50D2, MWX50D2 for Transom “L” -
23C8-87122-2 CARBURETOR REPAIR KIT
for M40/50D2, MW50D2CARBURETOR REPAIR KIT
for M40/50D2, MW50D2 -
23C8-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
23E3-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
23C8-03169-0 * PLUG* PLUG
-
23E3-03147-0 * FLOAT VALVE* FLOAT VALVE
-
23C8-03126-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
23C8-03125-0 * FLOAT* FLOAT
-
23C8-03121-0 * FLOAT CHAMBER GASKET* FLOAT CHAMBER GASKET
-
23C8-03193-0 * GASKET* GASKET
-
23C8-03181-0 * CARBURETOR COVER* CARBURETOR COVER
-
23C8-03182-0 * CARBURETOR COVER GASKET* CARBURETOR COVER GASKET
-
2922503-6410 * SCREW* SCREW
-
33C8-87121-B POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
33C8-01005-5 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
33C8-01024-1 * CYLINDER HEAD COVER GASKET* CYLINDER HEAD COVER GASKET
-
3353-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
3346-01216-0 * O-RING 1.7-59* O-RING 1.7-59
-
33C8-01215-0 * OIL SEAL 16-28-7* OIL SEAL 16-28-7
-
3334-00122-0 * OIL SEAL 25-40-8* OIL SEAL 25-40-8
-
33C8-02305-2 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
33C8-09082-1 * GASKET
for Premixing Model* GASKET
for Premixing Model -
3151-33159-0 * GASKET 6.2-11-1* GASKET 6.2-11-1
-
33C8-02104-2 * INTAKE MANIFOLD GASKET* INTAKE MANIFOLD GASKET
-
33B7-02235-0 * O-RING* O-RING
-
33B7-02236-0 * O-RING* O-RING
-
33C8-01303-4 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
33C8-00108-0 * O-RING 2.4-39.7* O-RING 2.4-39.7
-
43T5-87322-3 WATER PUMP REPAIR KIT
for M40/50D2, MX50D2WATER PUMP REPAIR KIT
for M40/50D2, MX50D2 -
43C8-65021-2 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
4332-65022-0 * KEY* KEY
-
43T5-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
43T5-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
43C8-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
43C8-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
49101E3-5855 * BOLT* BOLT
-
53Z5-65231-0 WATER PUMP KIT (CHROME PLATED)
for M40/50D2, MX50D2WATER PUMP KIT (CHROME PLATED)
for M40/50D2, MX50D2 -
53C8-65021-2 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
53Z5-65238-0 * PUMP CASE LINER
Chrome Plated* PUMP CASE LINER
Chrome Plated -
53T5-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
53C8-65239-0 * WATER PUMP GUIDE PLATE
Chrome Plated* WATER PUMP GUIDE PLATE
Chrome Plated -
53C8-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
63T5-87321-2 LOWER UNIT GASKET SET
for M40/50D2, MX50D2LOWER UNIT GASKET SET
for M40/50D2, MX50D2 -
63C8-61012-2 * DRIVE SHAFT HOUSING GASKET* DRIVE SHAFT HOUSING GASKET
-
63C8-02312-2 * EXHAUST PIPE GASKET* EXHAUST PIPE GASKET
-
63C8-61181-2 * EXHAUST HOUSING GASKET* EXHAUST HOUSING GASKET
-
6332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
63B7-60016-1 * GASKET 10.1-15-1* GASKET 10.1-15-1
-
63T5-65018-2 * PUMP CASE GASKET* PUMP CASE GASKET
-
63C8-65029-2 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
63C8-60223-0 * OIL SEAL 17-33-6* OIL SEAL 17-33-6
-
6345-65015-0 * O-RING 3.2-47* O-RING 3.2-47
-
6332-66021-0 * O-RING 2.4-5.8* O-RING 2.4-5.8
-
63C8-66032-0 * O-RING 3.5-21.7* O-RING 3.5-21.7
-
6334-60223-0 * OIL SEAL 22-36-10* OIL SEAL 22-36-10
-
6345-60103-0 * O-RING 3.5-69.4* O-RING 3.5-69.4
-
73C8-76300-2 ELECTRIC STARTER KIT (F)
for MF TypeELECTRIC STARTER KIT (F)
for MF Type -
73B7-76093-0 * GROMMET 25-5* GROMMET 25-5
-
73C8-76010-1 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
7910103-6825 * BOLT* BOLT
-
73C8-76007-0 * DAMPER* DAMPER
-
73C8-76009-0 * STARTER MOTOR BAND* STARTER MOTOR BAND
-
7910103-6820 * BOLT* BOLT
-
7346-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
7910103-6616 * BOLT* BOLT
-
73C8-71035-0 * OIL FILTER BRACKET* OIL FILTER BRACKET
-
7910103-6614 * BOLT* BOLT
-
73C8-76141-1 * STARTER CABLE L=160* STARTER CABLE L=160
-
73B7-76120-2 * BATTERY CABLE L=3000* BATTERY CABLE L=3000
-
7910403-5612 * BOLT* BOLT
-
73A3-76145-0 * TERMINAL CAP* TERMINAL CAP
-
73B7-76065-5 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
7921503-7625 * SCREW* SCREW
-
73C8-76110-0 * CORD ASSY* CORD ASSY
-
7353-76062-1 * FUSE WIRE ASSY L=900 20A* FUSE WIRE ASSY L=900 20A
-
73C8-76119-0 * CORD ASSY* CORD ASSY
-
7353-76020-3 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
73C8-76080-1 * NEUTRAL SWITCH* NEUTRAL SWITCH
-
73B7-63731-0 * WASHER 12.5-24-1* WASHER 12.5-24-1
-
7309-06972-0 * CLAMP 6.5-47.5P* CLAMP 6.5-47.5P
-
7353-06972-0 * CLAMP 7-80P* CLAMP 7-80P
-
7910403-0612 * BOLT* BOLT
-
83E3B87090-C ENGINE SHORT BLOCK KIT
Black for M50D2/MW50D2ENGINE SHORT BLOCK KIT
Black for M50D2/MW50D2 -
93C8Q87314-1 EXTENSION HOUSING KIT (UL)
M40/50D2, MX50D2 for Transom “L” & “UL”EXTENSION HOUSING KIT (UL)
M40/50D2, MX50D2 for Transom “L” & “UL” -
93C8Q61110-0 * EXTENSION HOUSING* EXTENSION HOUSING
-
99101E3-5835 * BOLT* BOLT
-
93C8Q60090-0 * GEAR CASE ASSY
Sub Water Pipe* GEAR CASE ASSY
Sub Water Pipe -
9346-65204-0 * WATER PIPE AUXILIARY MOUNT* WATER PIPE AUXILIARY MOUNT
-
93C8-64303-0 * DRIVE SHAFT (UL)* DRIVE SHAFT (UL)
-
93C8-66014-0 * CAM ROD (UL)* CAM ROD (UL)
-
9951407-0312 * SPRING PIN 3-12* SPRING PIN 3-12
-
9346-66037-0 * CAM ROD HOLDER* CAM ROD HOLDER
-
9353-66024-0 * STOPPER* STOPPER
-
9910103-6612 * BOLT* BOLT
-
9951403-0312 * SPRING PIN 3-12* SPRING PIN 3-12
-
93C8-65120-0 * WATER PIPE (UL)* WATER PIPE (UL)
-
103E3-87130-0 PISTON REPAIR KIT
for M40/50D2, MW50D2 STDPISTON REPAIR KIT
for M40/50D2, MW50D2 STD -
103C8-00001-4 * PISTON
for M40/50D2, MW50D2 STD* PISTON
for M40/50D2, MW50D2 STD -
103C8-00021-1 * PISTON PIN* PISTON PIN
-
10334-00024-1 * PISTON PIN CLIP* PISTON PIN CLIP
-
103E3-87131-0 PISTON REPAIR KIT (0.5 O/S)
for M40/50D2, MW50D2 OPTPISTON REPAIR KIT (0.5 O/S)
for M40/50D2, MW50D2 OPT -
103C8-00004-4 * PISTON (0.5 O/S)
for M40/50D2, MW50D2 OPT* PISTON (0.5 O/S)
for M40/50D2, MW50D2 OPT -
103C8-00021-1 * PISTON PIN* PISTON PIN
-
10334-00024-1 * PISTON PIN CLIP* PISTON PIN CLIP
