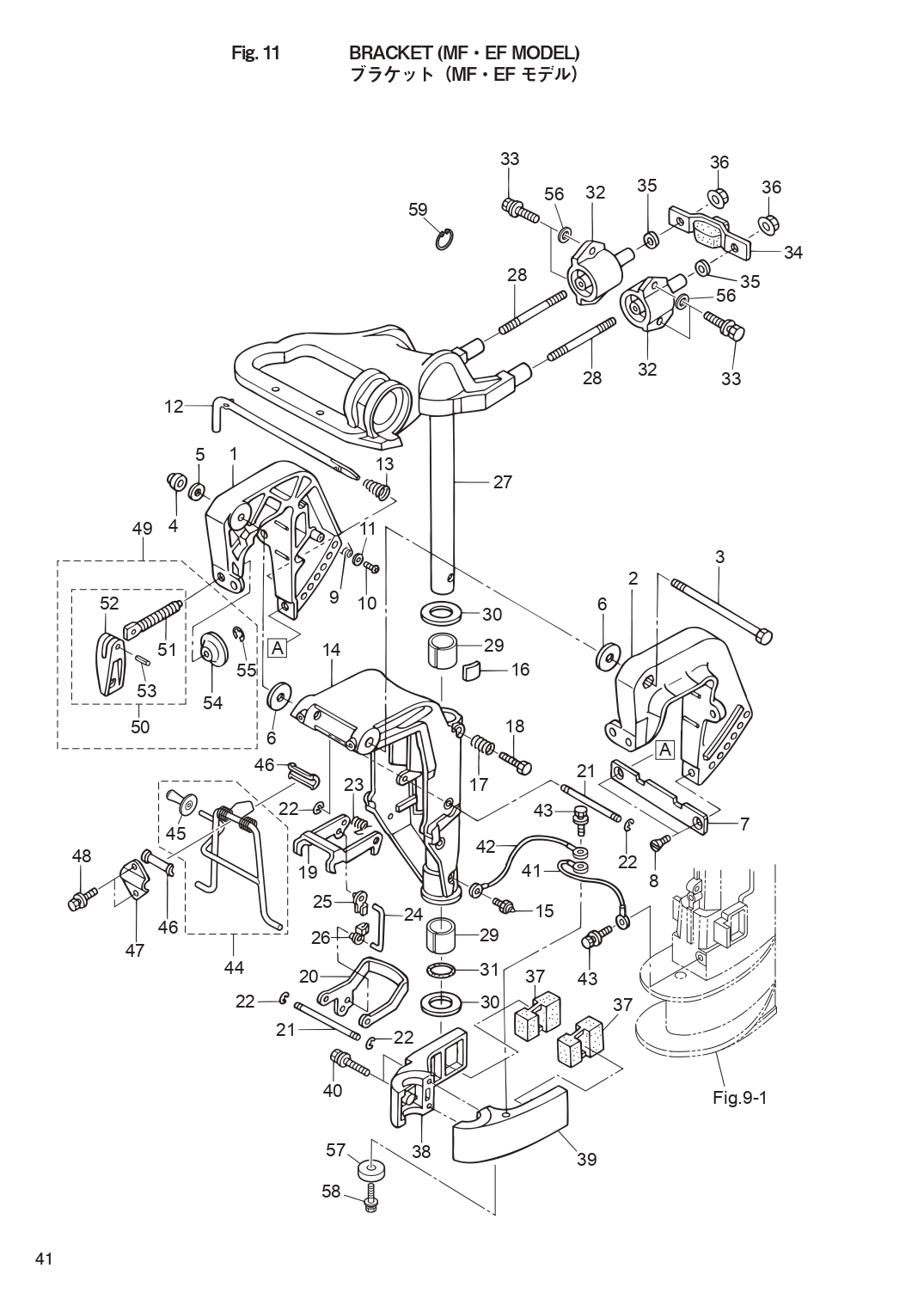

BRACKET (MF EF MODEL) для Tohatsu MFS9.8BX - 2020 года выпуска`
-
№АртикулНазвание
-
13V1Q62112-2 CLAMP BRACKET (R)
Starboard SideCLAMP BRACKET (R)
Starboard Side -
23V1Q62113-2 CLAMP BRACKET (L)
Port SideCLAMP BRACKET (L)
Port Side -
3309-62115-2 BOLT 8-122BOLT 8-122
-
4930403-0800 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
59401E3-0800 WASHERWASHER
-
6307-62116-1 WASHER 8.5-28-1WASHER 8.5-28-1
-
73B2-62118-0 DISTANCE PLATEDISTANCE PLATE
-
89216E3-0612 SCREWSCREW
-
9369-62146-1 STERN BRACKET SPRINGSTERN BRACKET SPRING
-
10921703-0406 SCREWSCREW
-
11369-62147-0 WASHER 4.3-16-1.5WASHER 4.3-16-1.5
-
12350-62121-2 THRUST RODTHRUST ROD
-
13369-62122-2 THRUST ROD SPRINGTHRUST ROD SPRING
-
143V1Q62310-0 SWIVEL BRACKETSWIVEL BRACKET
-
15344-67177-1 GREASE FITTINGGREASE FITTING
-
16345-62441-0 FRICTION PIECEFRICTION PIECE
-
17346-62421-1 FRICTION SPRINGFRICTION SPRING
-
189101E3-0830 BOLTBOLT
-
193V1-66322-0 REVERSE LOCKREVERSE LOCK
-
203V1-66313-0 REVERSE LOCK ARMREVERSE LOCK ARM
-
213B2-66321-1 REVERSE LOCK RODREVERSE LOCK ROD
-
22945303-0500 E-RING d=5E-RING d=5
-
233B2-66315-0 REVERSE LOCK SPRINGREVERSE LOCK SPRING
-
243V1-66305-1 REVERSE LOCK LINKREVERSE LOCK LINK
-
253C8-63733-0 ROD SNAP 5-3ROD SNAP 5-3
-
263K9-05223-0 ROD SNAP 4-2ROD SNAP 4-2
-
273WBQ62010-0 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
283V1-61313-1 STUDSTUD
-
29350-62417-0 BUSHING 24-30-30BUSHING 24-30-30
-
30350-62423-0 THRUST PLATE (UPPER)THRUST PLATE (UPPER)
-
31350-62415-0 O-RING 3.5-22O-RING 3.5-22
-
323Z0-61301-0 RUBBER MOUNT (UPPER)RUBBER MOUNT (UPPER)
-
333UA-61343-0 BOLT M6-20BOLT M6-20
-
343V1-61333-1 DAMPER (UPPER)DAMPER (UPPER)
-
359401E3-0800 WASHERWASHER
-
363V1-61324-0 NUTNUT
-
373V1-61302-0 RUBBER MOUNT (LOWER)RUBBER MOUNT (LOWER)
-
383V1Q61401-0 MOUNT BRACKET (R)
Starboard SideMOUNT BRACKET (R)
Starboard Side -
393WBQ61402-0 MOUNT BRACKET (L)MOUNT BRACKET (L)
-
409101E3-5652 BOLTBOLT
-
413A3-62396-1 GROUND L=110
Drive Shaft Housing -Mpunt Bracket(R)GROUND L=110
Drive Shaft Housing -Mpunt Bracket(R) -
423A3-62396-1 GROUND L=110
Swivel Bracket -Mpunt Bracket(R)GROUND L=110
Swivel Bracket -Mpunt Bracket(R) -
43910103-5612 BOLTBOLT
-
443V1-62431-1 TILT STOPPER ASSYTILT STOPPER ASSY
-
453AS-62433-0 * TILT STOPPER GRIP* TILT STOPPER GRIP
-
46393-62437-1 BUSHINGBUSHING
-
47369-62439-1 SETTING PLATESETTING PLATE
-
489101E3-5612 BOLTBOLT
-
493V1Q62105-2 CLAMP SCREW KITCLAMP SCREW KIT
-
503V1Q62108-1 * CLAMP SCREW ASSY* CLAMP SCREW ASSY
-
513M3-62106-0 ** CLAMP SCREW** CLAMP SCREW
-
523RSQ62102-0 ** CLAMP SCREW HANDLE** CLAMP SCREW HANDLE
-
53951403-0622 ** SPRING PIN** SPRING PIN
-
54332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
55945303-0500 * E-RING d=5* E-RING d=5
-
569401E3-0600 WASHERWASHER
-
57338-60218-2 ANODEANODE
-
58910103-5620 BOLTBOLT
-
59945103-2400 C-RINGC-RING
