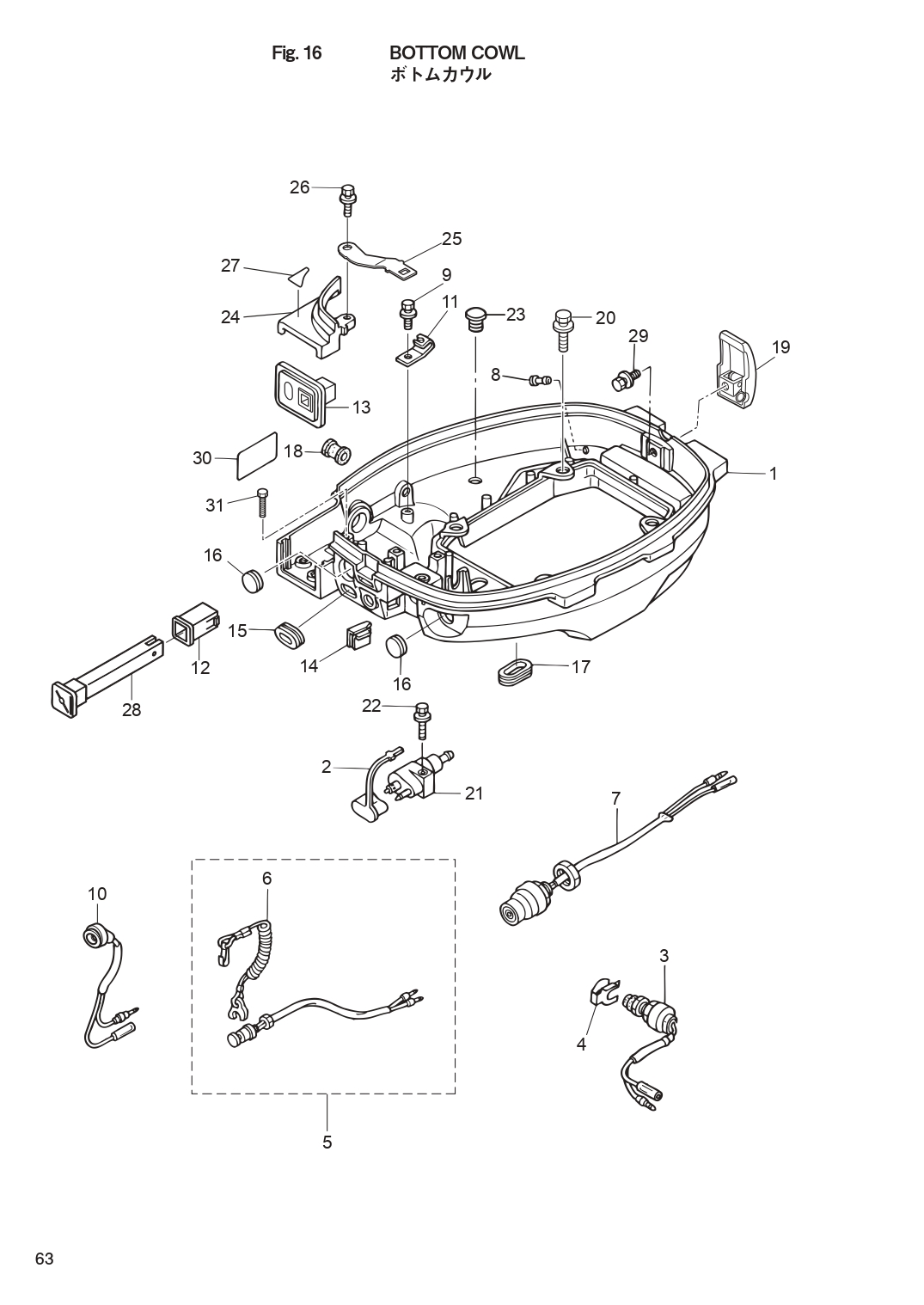

BOTTOM COWL для Tohatsu MFS8B - 2020 года выпуска`
-
№АртикулНазвание
-
13V2Q67100-0 BOTTOM COWLBOTTOM COWL
-
23H6-70262-0 FUEL CONNECTOR PROTECTORFUEL CONNECTOR PROTECTOR
-
3398-76080-1 NEUTRAL SWITCH
for EF/EFT TypeNEUTRAL SWITCH
for EF/EFT Type -
4398-76083-0 NEUTRAL SWITCH ACTUATOR
for EF/EFT TypeNEUTRAL SWITCH ACTUATOR
for EF/EFT Type -
5398-06830-0 STOP SWITCH ASSY
for MF/EF/EFT TypeSTOP SWITCH ASSY
for MF/EF/EFT Type -
6353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
73AA-76026-0 MAIN SWITCH ASSY
for EF/EFT TypeMAIN SWITCH ASSY
for EF/EFT Type -
83BA-01138-0 NIPPLE 6.8-3-10NIPPLE 6.8-3-10
-
99101E3-5612 BOLT
for MF Type Clamp, Cable BracketBOLT
for MF Type Clamp, Cable Bracket -
99101E3-5612 BOLT
for EF/EP Type Cable BracketBOLT
for EF/EP Type Cable Bracket -
103R3-71040-0 PILOT LAMP ASSY
for MF/EF/EP TypePILOT LAMP ASSY
for MF/EF/EP Type -
113V1-69000-0 STARTER LOCK CABLE BRACKETSTARTER LOCK CABLE BRACKET
-
123C8-67156-0 BUSHING
for MF/EF/EFT TypeBUSHING
for MF/EF/EFT Type -
133Y3-63621-0 GROMMET
for MF TypeGROMMET
for MF Type -
143V1-63624-0 GROMMET
Throttle CableGROMMET
Throttle Cable -
153R3-67162-0 GROMMET 25-15-3
Battery CableGROMMET 25-15-3
Battery Cable -
16345-67117-0 GROMMET 17-2.7
Main Swich for MF TypeGROMMET 17-2.7
Main Swich for MF Type -
16345-67117-0 GROMMET 17-2.7
Main Swich, Stop Swich for EP/EPT TypeGROMMET 17-2.7
Main Swich, Stop Swich for EP/EPT Type -
173R3-66226-0 GROMMET 40-18-3
Shift Rod PTT CordGROMMET 40-18-3
Shift Rod PTT Cord -
183B2-67187-0 GROMMET 16-17.5
for MF/EF/EFT Type Throttle ShaftGROMMET 16-17.5
for MF/EF/EFT Type Throttle Shaft -
193AA-67120-1 COWL LATCH ASSYCOWL LATCH ASSY
-
209101E3-5625 BOLTBOLT
-
21394-70260-0 FUEL CONNECTOR (MALE)FUEL CONNECTOR (MALE)
-
229101E3-5625 BOLTBOLT
-
233A3-60984-0 SUB-WATER INLET HOSE PLUGSUB-WATER INLET HOSE PLUG
-
243V1Q67481-0 SHIFT LEVER BRACKET COVERSHIFT LEVER BRACKET COVER
-
269101E3-5616 BOLTBOLT
-
273UA-67578-0 SHIFT DECAL
for MF/EF/EFT TypeSHIFT DECAL
for MF/EF/EFT Type -
283C8-67151-2 CHOKE ROD
for MF/EF/EFT TypeCHOKE ROD
for MF/EF/EFT Type -
29910103-5612 BOLTBOLT
-
303H6-67572-0 STORAGE DECALSTORAGE DECAL
-
31910103-0610 BOLTBOLT
