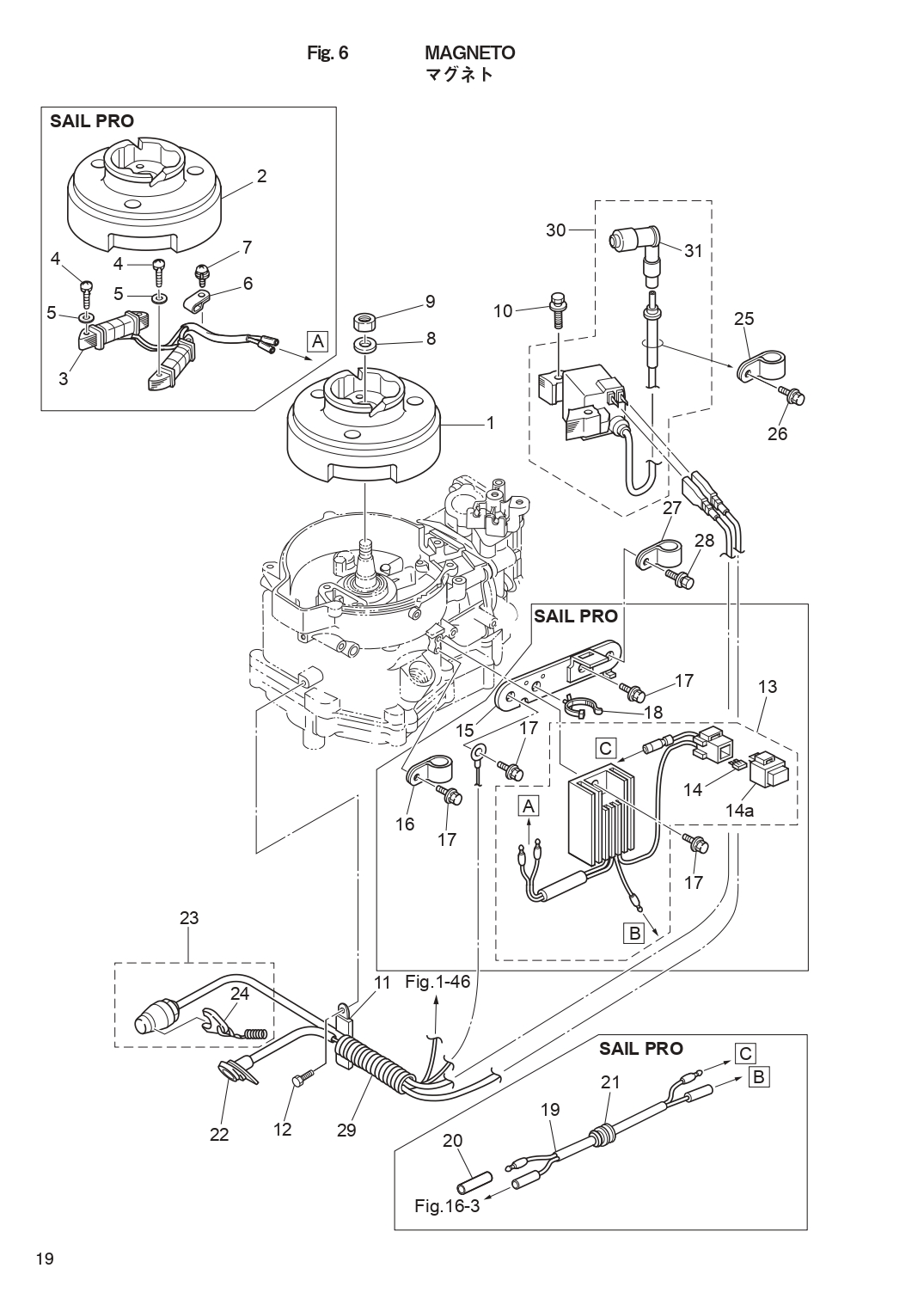

MAGNETO для Tohatsu MFS5D - 2020 года выпуска`
-
№АртикулНазвание
-
13AS-06009-0 FLYWHEEL
STDFLYWHEEL
STD -
8940121-1200 WASHERWASHER
-
9369-00132-0 NUT 12-P1.25NUT 12-P1.25
-
10910103-5630 BOLTBOLT
-
113PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
12910103-5612 BOLTBOLT
-
223GR-71040-0 PILOT LAMP ASSYPILOT LAMP ASSY
-
233GR-06870-0 STOP SWITCH ASSYSTOP SWITCH ASSY
-
24353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
25345-06915-0 CLAMP 6.5-14LCLAMP 6.5-14L
-
26910103-5612 BOLTBOLT
-
27345-06915-0 CLAMP 6.5-14LCLAMP 6.5-14L
-
28910103-5612 BOLTBOLT
-
293BA-06133-0 PROTECTOR φ10.7-180PROTECTOR φ10.7-180
-
303GR-06041-0 IGNITER W/R-CAPIGNITER W/R-CAP
-
313H6-06999-0 * PLUG CAP W/RESISTANCE* PLUG CAP W/RESISTANCE
Все узлы модели:
- CYLINDER OIL PAN
- PISTON CRANK SHAFT
- CYLINDER HEAD VALVE CAMPSHAFT
- CARBURETOR FUEL PUMP
- RECOIL STARTER
- • MAGNETO
- DRIVE SHAFT HOUSING SHIFT
- GEAR CASE
- BRACKET REVERSE LOCK
- BOTTOM COWL TILLER HANDLE
- TOP COWL
- SEPARATE FUEL TANK
- INTEGRAL FUEL TANK
- OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)
- COMPONENT PARTS OF REMOTE CONTROL
- OPTIONAL PARTS (2) ACCESSORIES
- ASSEMBLY KIT PARTS
