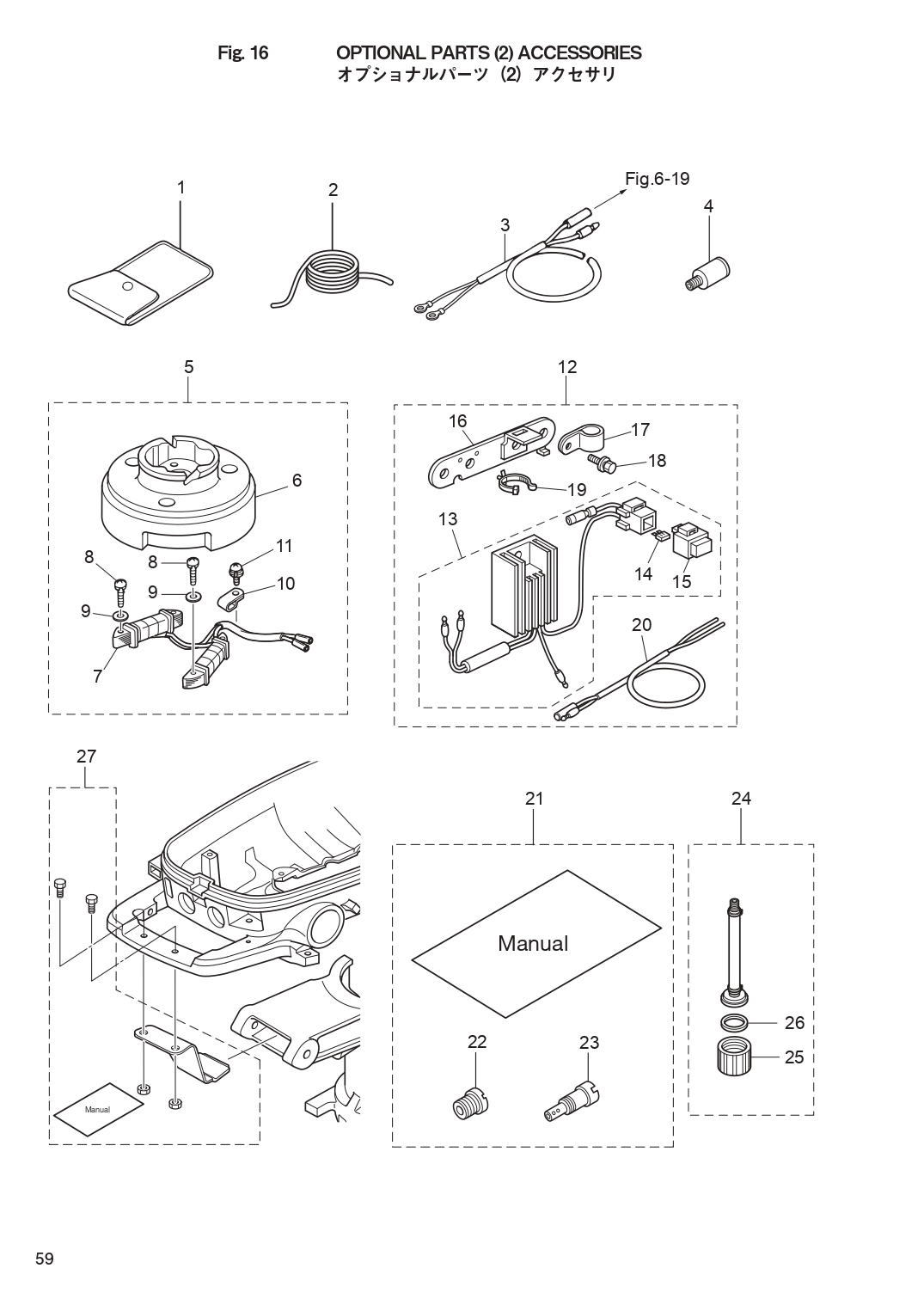

OPTIONAL PARTS (2) ACCESSORIES для Tohatsu MFS4D - 2020 года выпуска`
-
№АртикулНазвание
-
13BJ-72100-0 TOOL KITTOOL KIT
-
2312-72201-0 SAFETY ROPE φ4-1000SAFETY ROPE φ4-1000
-
4336-60007-0 FLUSHING PLUGFLUSHING PLUG
-
53GR-06128-0 ALTERNATOR KIT
12V60WALTERNATOR KIT
12V60W -
63AS-06001-0 * FLYWHEEL
MF54 Mark 50 use Alternater* FLYWHEEL
MF54 Mark 50 use Alternater -
73GR-06023-0 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
8921503-0525 * SCREW* SCREW
-
9940103-0500 * WASHER* WASHER
-
10369-06915-0 * CLAMP 4.2-3-8* CLAMP 4.2-3-8
-
11921521-6408 * SCREW* SCREW
-
123GR-76160-0 RECTIFIER KIT
use Alternator KitRECTIFIER KIT
use Alternator Kit -
133GR-76060-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
143GR-76246-0 ** FUSE 10A** FUSE 10A
-
151E0-34093-0 ** CAP** CAP
-
163GR-06900-0 * ELECTRIC BRACKET ASSY* ELECTRIC BRACKET ASSY
-
17345-06915-0 * CLAMP 6.5-14L* CLAMP 6.5-14L
-
18910103-5614 * BOLT* BOLT
-
193BJ-84398-0 * BAND 135* BAND 135
-
20369-76161-0 * EXTENSION CORD* EXTENSION CORD
-
213JD-10230-0 ALTITUDE ADJUSTMENT KIT
4ps High AltitudeALTITUDE ADJUSTMENT KIT
4ps High Altitude -
223H9-03251-0 * MAIN JET (#60)
4ps High Altitude* MAIN JET (#60)
4ps High Altitude -
233R6-03254-0 * SLOW JET (#35)
High Altitude* SLOW JET (#35)
High Altitude -
243GR-72406-0 FLUSHING ATTACHMENT ASSYFLUSHING ATTACHMENT ASSY
-
253GR-70212-0 * JOINT* JOINT
-
263T1-67147-0 * SEAL RING* SEAL RING
-
273GR-62500-3 STEERING LOCK KITSTEERING LOCK KIT
Все узлы модели:
- CYLINDER OIL PAN
- PISTON CRANK SHAFT
- CYLINDER HEAD VALVE CAMPSHAFT
- CARBURETOR FUEL PUMP
- RECOIL STARTER
- MAGNETO
- DRIVE SHAFT HOUSING SHIFT
- GEAR CASE
- BRACKET REVERSE LOCK
- BOTTOM COWL TILLER HANDLE
- TOP COWL
- INTEGRAL FUEL TANK
- OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)
- COMPONENT PARTS OF REMOTE CONTROL
- • OPTIONAL PARTS (2) ACCESSORIES
- ASSEMBLY KIT PARTS
