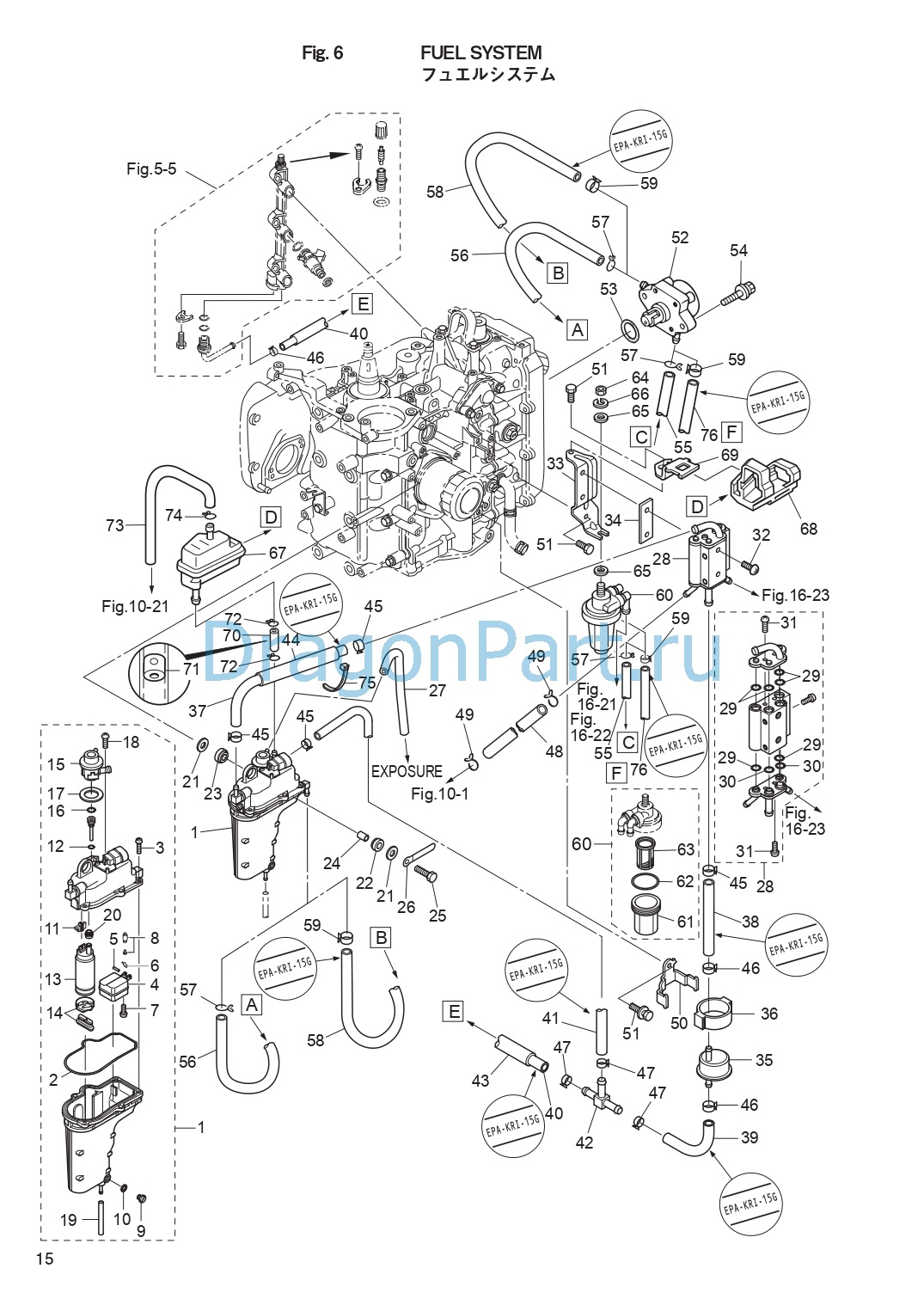

FUEL SYSTEM для Tohatsu MFS30C - 2020 года выпуска`
-
№АртикулНазвание
-
13AC-10150-0 VAPOR SEPARATOR ASSYVAPOR SEPARATOR ASSY
-
23AC-03235-0 * O-RING* O-RING
-
3921503-6416 * SCREW* SCREW
-
43AC-03230-0 * FLOAT* FLOAT
-
53F3-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
6344-03244-0 * CLIP* CLIP
-
7921503-0408 * SCREW* SCREW
-
83R3-03239-0 * FLOAT VALVE ASSY
Valve Pin* FLOAT VALVE ASSY
Valve Pin -
93AC-03292-0 * DRAIN SCREW* DRAIN SCREW
-
103AC-03116-0 * O-RING* O-RING
-
113AC-06952-0 * TERMINAL HOLDER* TERMINAL HOLDER
-
123AD-03116-0 * O-RING* O-RING
-
133AC-04310-0 * FUEL FEED PUMP ASSY* FUEL FEED PUMP ASSY
-
143AC-04322-0 * FILTER (INLET)
Insulator(Upper) +Insulator(Lower)+Fillter* FILTER (INLET)
Insulator(Upper) +Insulator(Lower)+Fillter -
153AC-10154-0 * FUEL REGULATOR* FUEL REGULATOR
-
163AC-10095-0 * O-RING* O-RING
-
173AC-04313-0 * GROMMET 10.4-4* GROMMET 10.4-4
-
183AC-03234-0 * SCREW* SCREW
-
1998AB-30-300 * HOSE
Drain 98AB-301000* HOSE
Drain 98AB-301000 -
203AD-04319-0 * GROMMET* GROMMET
-
21346-67115-0 WASHER 6.5-21-1WASHER 6.5-21-1
-
22346-67113-0 MOUNT 8.5-14-2.5MOUNT 8.5-14-2.5
-
233B7-06920-0 RUBBER MOUNT 8.5-14-2.5RUBBER MOUNT 8.5-14-2.5
-
24346-67114-1 SPACER 6.2-9-15.7SPACER 6.2-9-15.7
-
25910103-0630 BOLTBOLT
-
263T4-06972-1 CLAMP 6.5-87PCLAMP 6.5-87P
-
2798AB-30-540 HOSE
V/Separator-B/Cowl 98AB-301000HOSE
V/Separator-B/Cowl 98AB-301000 -
283AC-10175-0 FUEL COOLER ASSYFUEL COOLER ASSY
-
293AC-10046-0 * O-RING 1.9-7.8* O-RING 1.9-7.8
-
303AC-10164-0 * O-RING 1.9-6.8* O-RING 1.9-6.8
-
31921503-6410 * SCREW* SCREW
-
32921903-0635 SCREWSCREW
-
333AC-02239-0 PLATEPLATE
-
343AC-10019-0 GASKET
Fuel CoolerGASKET
Fuel Cooler -
353ACB10143-0 HIGH PRESSURE FUEL FILTERHIGH PRESSURE FUEL FILTER
-
363AC-10145-0 FUEL FILTER RUBBER MOUNTFUEL FILTER RUBBER MOUNT
-
373AD-02209-0 LOW PERMEATION HOSE L=190
EPA-KRI-15GLOW PERMEATION HOSE L=190
EPA-KRI-15G -
383AC-02209-0 LOW PERMEATION HOSE L=140
EPA-KRI-15GLOW PERMEATION HOSE L=140
EPA-KRI-15G -
393AC-02210-0 LOW PERMEATION HOSE L=100
EPA-KRI-15GLOW PERMEATION HOSE L=100
EPA-KRI-15G -
403AL-02210-0 LOW PERMEATION HOSE L=340
EPA-KRI-15GLOW PERMEATION HOSE L=340
EPA-KRI-15G -
413AD-02210-0 LOW PERMEATION HOSE L=300
EPA-KRI-15GLOW PERMEATION HOSE L=300
EPA-KRI-15G -
423AC-70013-0 PIPE JOINT
T-NipplePIPE JOINT
T-Nipple -
433AD-06157-0 PROTECTOR φ18-240PROTECTOR φ18-240
-
443AD-06133-0 PROTECTOR φ18-130PROTECTOR φ18-130
-
453AC-10087-0 CLAMP φ16.8
Fuel Cooler & V/SeparatorCLAMP φ16.8
Fuel Cooler & V/Separator -
463AC-09056-1 CLIP φ13.5
HP Fuel Filter & Fuel Rail NippleCLIP φ13.5
HP Fuel Filter & Fuel Rail Nipple -
473T5-10086-0 CLAMP 21/32
T-Nipple (Pipe Joint)CLAMP 21/32
T-Nipple (Pipe Joint) -
483NV-65210-0 COOLING HOSECOOLING HOSE
-
49338-02215-0 CLIP φ10
Cylinder Fuel CoolerCLIP φ10
Cylinder Fuel Cooler -
503AC-10144-0 FUEL FILTER BANDFUEL FILTER BAND
-
51910103-5616 BOLTBOLT
-
523H8-04000-1 FUEL PUMP ASSYFUEL PUMP ASSY
-
533H8-62415-0 O-RING 3.5-25.7O-RING 3.5-25.7
-
54910103-5625 BOLTBOLT
-
5598AB-50-370 HOSE
STD 98AB-501000HOSE
STD 98AB-501000 -
5698AB-50-600 HOSE
STD 98AB-501000HOSE
STD 98AB-501000 -
57338-02215-0 CLIP φ10
STD F/Pump F/Filter, V/SeparatorCLIP φ10
STD F/Pump F/Filter, V/Separator -
583NW-04055-0 LOW PERMEATION HOSE
EPA-KRI-15GLOW PERMEATION HOSE
EPA-KRI-15G -
593GT-35143-0 CLIP φ9.4
for USA ModelCLIP φ9.4
for USA Model -
603AD-02230-0 FUEL FILTER ASSYFUEL FILTER ASSY
-
613AD-02237-0 * CUP* CUP
-
623AD-02235-0 * O-RING* O-RING
-
633AD-02234-0 * FILTER* FILTER
-
64930103-0800 NUTNUT
-
65940103-0800 WASHERWASHER
-
66941303-0800 SPRING WASHERSPRING WASHER
-
673AC-10320-0 AIR VENT ASSYAIR VENT ASSY
-
683AC-06302-0 RUBBER MOUNTRUBBER MOUNT
-
693AC-76174-0 STAYSTAY
-
7098AB-50-040 HOSE
98AB-501000HOSE
98AB-501000 -
713AD-10170-0 ORIFICEORIFICE
-
72338-02215-0 CLIP φ10
Cylinder Fuel CoolerCLIP φ10
Cylinder Fuel Cooler -
7398AL-40-620 HOSE
98AL-401000HOSE
98AL-401000 -
74338-01133-0 CLIP φ7CLIP φ7
-
75369-84398-0 BAND 158BAND 158
-
763NV-04055-0 LOW PERMEATION HOSE
EPA-KRI-15GLOW PERMEATION HOSE
EPA-KRI-15G
