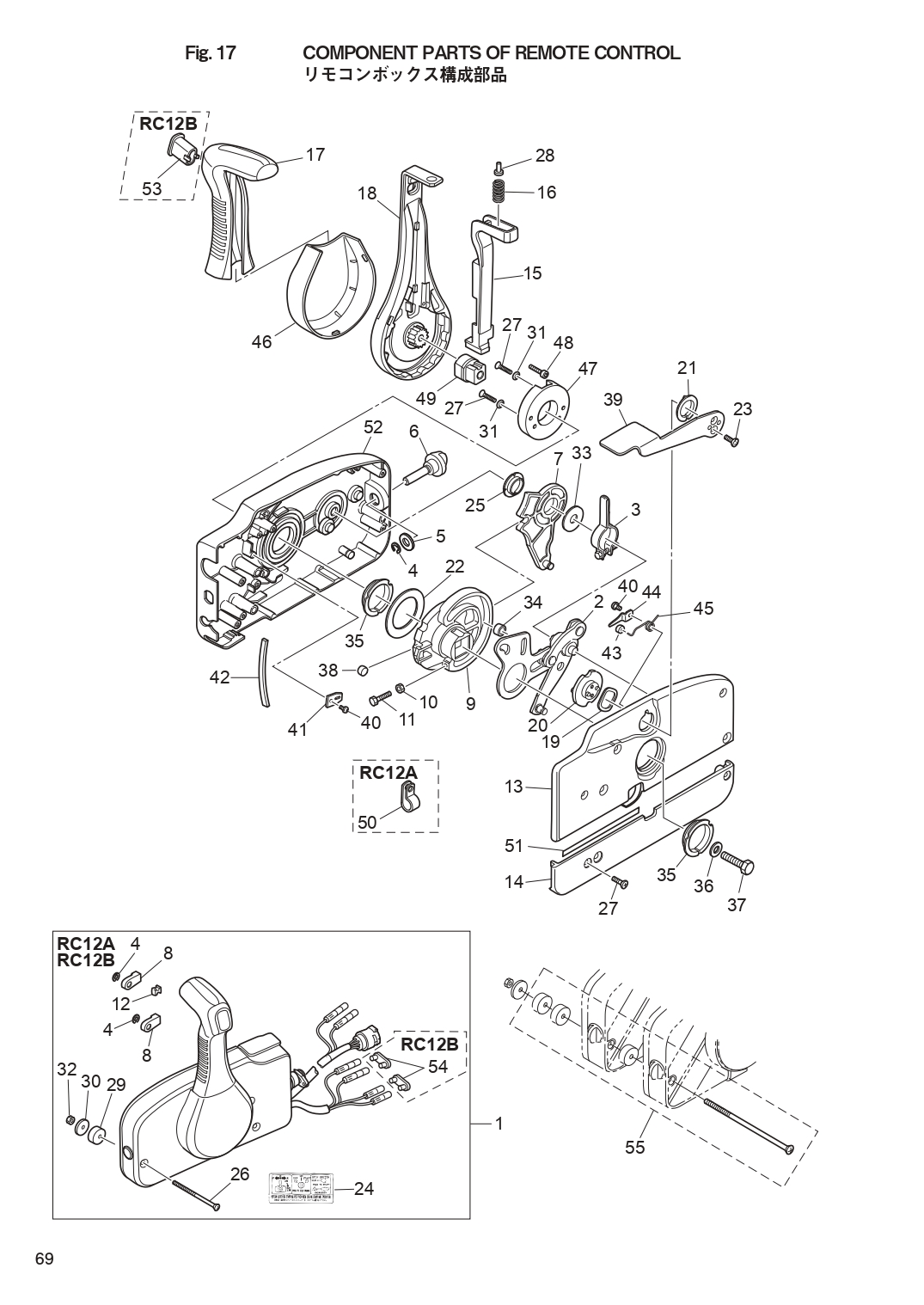

COMPONENT PARTS OF REMOTE CONTROL для Tohatsu MFS20E - 2020 года выпуска`
-
№АртикулНазвание
-
13U2B84330-0 REMOTE CONTROL HEAD ASSY(RC12A)
EPT TypeREMOTE CONTROL HEAD ASSY(RC12A)
EPT Type -
13U2B84340-0 REMOTE CONTROL HEAD ASSY(RC12B)
EP TypeREMOTE CONTROL HEAD ASSY(RC12B)
EP Type -
23A3-84365-1 * THROTTLE ARM* THROTTLE ARM
-
33A3-84428-0 * THROTTLE FRICTION ARM* THROTTLE FRICTION ARM
-
4945303-0600 * E-RING d=6* E-RING d=6
-
5353-84394-0 * WASHER* WASHER
-
63U2-84427-0 * ADJUSTING SCREW* ADJUSTING SCREW
-
73A3-84381-0 * SHIFT GEAR ASSY* SHIFT GEAR ASSY
-
83A3-83314-2 * CABLE TERMINAL* CABLE TERMINAL
-
93A3-84364-2 * DRIVE GEAR* DRIVE GEAR
-
10930103-0500 * NUT* NUT
-
11910103-0525 * BOLT* BOLT
-
123A3-84376-0 * GROMMET* GROMMET
-
133U2B84441-0 * REAR HOUSING* REAR HOUSING
-
143U2B84366-0 * REAR PANEL* REAR PANEL
-
153U2-84401-0 * NEUTRAL LOCK ARM* NEUTRAL LOCK ARM
-
163A3-84403-0 * NEUTRAL LOCK SPRING* NEUTRAL LOCK SPRING
-
173U2-84404-0 * GRIP* GRIP
-
183U2-84343-0 * CONTROL LEVER* CONTROL LEVER
-
193A3-84368-0 * WAVE WASHER* WAVE WASHER
-
203A3-84391-0 * FREE THROTTLE DRUM* FREE THROTTLE DRUM
-
213A3-84435-0 * BUSHING* BUSHING
-
223A3-84422-0 * THRUST PLATE* THRUST PLATE
-
23921603-0512 * SCREW* SCREW
-
243U2-84339-0 * INSTRUCTION DECAL* INSTRUCTION DECAL
-
253A3-84432-0 * BUSHING* BUSHING
-
263U2-84375-0 * SCREW* SCREW
-
273VK-84375-0 * SCREW* SCREW
-
283VL-84375-0 * SCREW* SCREW
-
293A3-84374-0 * SPACER* SPACER
-
30353-84371-0 * WASHER* WASHER
-
313U2-84371-0 * WASHER* WASHER
-
32930103-0600 * NUT* NUT
-
333A3-84383-0 * WASHER* WASHER
-
343A3-84421-0 * ROLLER* ROLLER
-
353U2-84431-0 * BUSHING* BUSHING
-
36940103-0800 * WASHER* WASHER
-
373U2-84442-0 * BOLT* BOLT
-
38353-84388-0 * DETENT ROLLER* DETENT ROLLER
-
393U2B84312-0 * FREE THROTTLE LEVER* FREE THROTTLE LEVER
-
40921503-0406 * SCREW* SCREW
-
413A3-84423-0 * DETENT RETAINER* DETENT RETAINER
-
423A3-84307-0 * DETENT SPRING* DETENT SPRING
-
433A3-84424-0 * FREE THROTTLE ROLLER* FREE THROTTLE ROLLER
-
443A3-84426-0 * ROLLER RETAINER* ROLLER RETAINER
-
453A3-84425-0 * FREE THROTTLE SPRING* FREE THROTTLE SPRING
-
463VK-63107-0 * COVER* COVER
-
473U2-63506-0 * HOLDER* HOLDER
-
483U2-84917-0 * BOLT* BOLT
-
493U2-77367-0 * JOINT* JOINT
-
503U2-06973-0 * CLAMP* CLAMP
-
513U2-72187-0 * CAUTION DECAL(SIGP)* CAUTION DECAL(SIGP)
-
523U2B84440-0 * FRONT HOUSING* FRONT HOUSING
-
533U2-84452-0 * TILT SWITCH PLUG
RC12B* TILT SWITCH PLUG
RC12B -
54353-76037-0 * CABLE TERMINAL PLUG
RC12B* CABLE TERMINAL PLUG
RC12B -
553A3-81301-0 TWIN REMOTE CONTROL KITTWIN REMOTE CONTROL KIT
