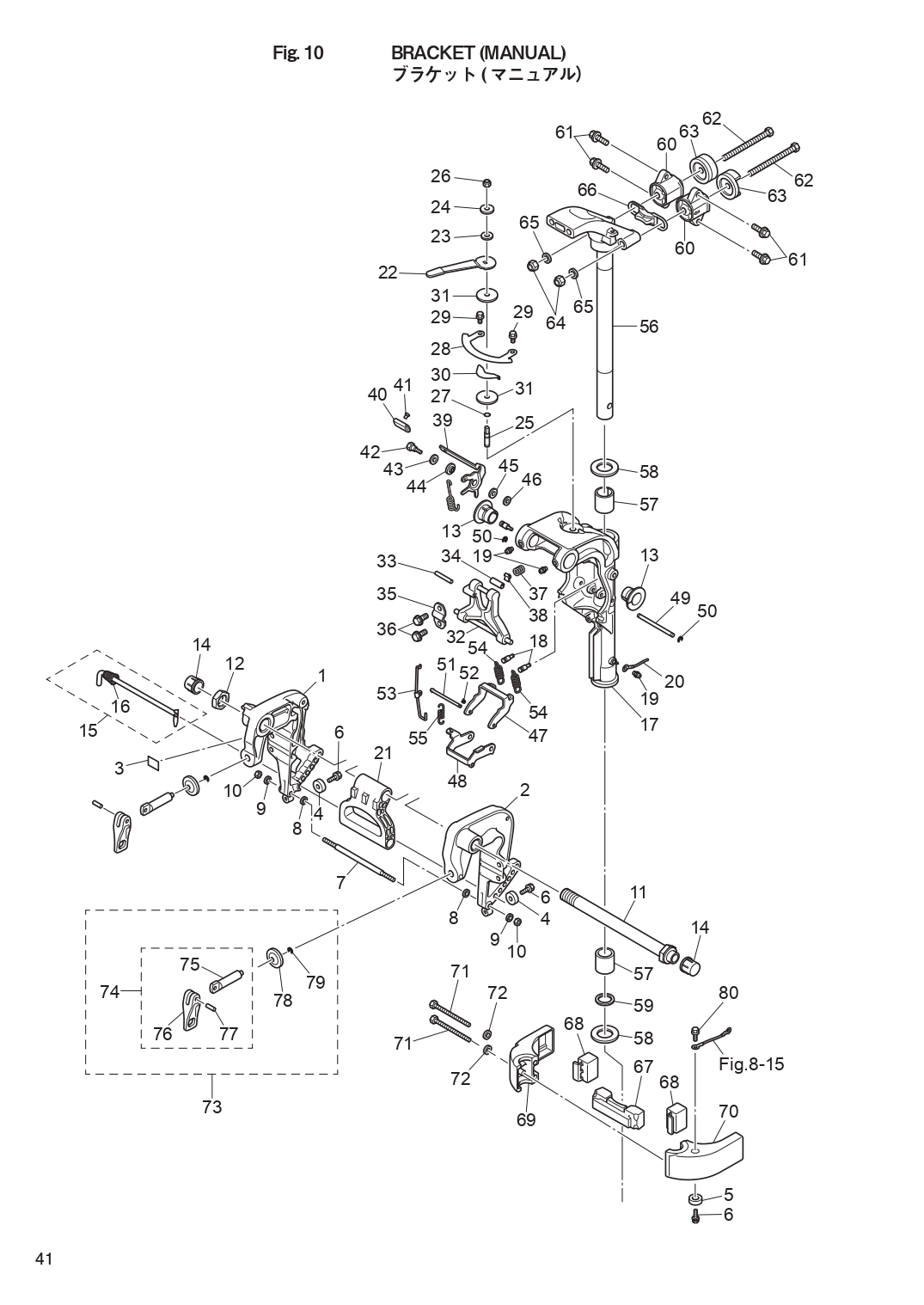

BRACKET (MANUAL ) для Tohatsu MFS15E - 2020 года выпуска
-
№АртикулНазвание
-
13RSQ62112-0 CLAMP BRACKET (R)
Starboard SideCLAMP BRACKET (R)
Starboard Side -
23RSQ62113-0 CLAMP BRACKET (L)
Port SideCLAMP BRACKET (L)
Port Side -
33H8-72049-0 CO-PILOT DECALCO-PILOT DECAL
-
4338-60218-2 ANODE
Clamp BracketANODE
Clamp Bracket -
5338-60218-2 ANODE
Mount BracketANODE
Mount Bracket -
6910103-5620 BOLTBOLT
-
73RS-62117-0 DISTANCE PIECEDISTANCE PIECE
-
89401E3-0600 WASHER
Distance Piece SideWASHER
Distance Piece Side -
99401E3-0600 WASHER
Nut SideWASHER
Nut Side -
109301E3-0600 NUTNUT
-
113AC-62191-0 SWIVEL BRACKET SHAFT ASSYSWIVEL BRACKET SHAFT ASSY
-
12346-62124-1 NYLON NUT 7/8-14NYLON NUT 7/8-14
-
13349-62126-0 BUSHINGBUSHING
-
14346-62127-0 CAP NUTCAP NUT
-
153RS-62123-0 THRUST ROD ASSYTHRUST ROD ASSY
-
16369-62122-2 * THRUST ROD SPRING* THRUST ROD SPRING
-
173RTQ62309-0 SWIVEL BRACKET ASSY
Transom "S"SWIVEL BRACKET ASSY
Transom "S" -
173RSQ62309-0 SWIVEL BRACKET ASSY
Transom "L"&"UL"SWIVEL BRACKET ASSY
Transom "L"&"UL" -
19344-67177-1 GREASE FITTINGGREASE FITTING
-
203A3-62396-1 GROUND L=110
Swivel Bracket-Mount BracketGROUND L=110
Swivel Bracket-Mount Bracket -
213AA-61199-0 CARRYING HANDLECARRYING HANDLE
-
223RS-62441-0 FRICTION LEVERFRICTION LEVER
-
233R3-62443-0 WASHER 8.1-20-0.8WASHER 8.1-20-0.8
-
243B7-63730-0 WASHER 8.5-24-1.5WASHER 8.5-24-1.5
-
253RS-62445-0 BOLTBOLT
-
263V5-62442-0 NYLON NUT 8-P1.25NYLON NUT 8-P1.25
-
27345-66021-0 O-RING 1.9-6.8O-RING 1.9-6.8
-
283RS-62447-0 PLATEPLATE
-
299101E3-5612 BOLTBOLT
-
303RS-62448-1 WASHERWASHER
-
313RS-62449-0 DISC 8.5-38-2DISC 8.5-38-2
-
323RSQ62993-0 TILT STOPPERTILT STOPPER
-
33951403-0540 SPRING PINSPRING PIN
-
34350-62437-0 BUSHING 8.2-10-26.5BUSHING 8.2-10-26.5
-
35350-62439-1 SETTING PLATESETTING PLATE
-
369101E3-5818 BOLTBOLT
-
373C8-62421-1 FRICTION SPRINGFRICTION SPRING
-
38346-62438-0 SETTING PIECESETTING PIECE
-
393RS-66311-0 REVERSE LOCK LEVERREVERSE LOCK LEVER
-
403AL-66333-0 REVERSE LOCK LEVER GRIPREVERSE LOCK LEVER GRIP
-
41346-66334-0 STOPPERSTOPPER
-
423AL-05254-0 SHOULDER BOLT 6-8SHOULDER BOLT 6-8
-
439401E3-0800 WASHERWASHER
-
443AL-05212-0 BUSHING 8.1-20BUSHING 8.1-20
-
453AA-83719-0 WASHER 8.5-18-1.6WASHER 8.5-18-1.6
-
463R0-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
473RS-66351-0 REVERSE LOCK (R)REVERSE LOCK (R)
-
483RS-66313-0 REVERSE LOCK ARMREVERSE LOCK ARM
-
493RS-66324-0 REVERSE LOCK SHAFTREVERSE LOCK SHAFT
-
50945303-0600 E-RING d=6E-RING d=6
-
513G2-66321-0 REVERSE LOCK RODREVERSE LOCK ROD
-
52951503-0212 SPLIT PIN 2-12SPLIT PIN 2-12
-
533RS-66312-0 REVERSE LOCK LINKREVERSE LOCK LINK
-
543RS-66331-0 REVERSE LOCK SPRING (S)REVERSE LOCK SPRING (S)
-
55350-66315-0 REVERSE LOCK SPRINGREVERSE LOCK SPRING
-
563RTQ62010-0 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
563RSQ62010-0 STEERING SHAFT ASSYSTEERING SHAFT ASSY
-
573R3-62417-0 BUSHING 28-31-35BUSHING 28-31-35
-
583H8-62423-1 THRUST PLATE (UPPER)THRUST PLATE (UPPER)
-
593H8-62415-0 O-RING 3.5-25.7O-RING 3.5-25.7
-
603RS-61301-0 RUBBER MOUNT (UPPER)RUBBER MOUNT (UPPER)
-
619101E3-5830 BOLTBOLT
-
623RS-61307-0 BOLTBOLT
-
633RS-61333-0 DAMPER (UPPER)DAMPER (UPPER)
-
643C8-62098-0 NYLON NUT 10-P1.25NYLON NUT 10-P1.25
-
659402E3-1000 WASHERWASHER
-
663RS-61337-0 DAMPER (UPPER)DAMPER (UPPER)
-
673RS-61336-0 DAMPER (LOWER)DAMPER (LOWER)
-
683RS-61302-0 RUBBER MOUNT (LOWER)RUBBER MOUNT (LOWER)
-
693RSQ61401-0 MOUNT BRACKET (R)
Starboard SideMOUNT BRACKET (R)
Starboard Side -
703RSQ61402-0 MOUNT BRACKET (L)
Port SideMOUNT BRACKET (L)
Port Side -
719101E3-0885 BOLTBOLT
-
723P0-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
733RSQ62105-0 CLAMP SCREW KITCLAMP SCREW KIT
-
743RSQ62108-0 * CLAMP SCREW ASSY* CLAMP SCREW ASSY
-
753RS-62106-0 ** CLAMP SCREW** CLAMP SCREW
-
763RSQ62102-0 ** CLAMP SCREW HANDLE** CLAMP SCREW HANDLE
-
77951403-0622 ** SPRING PIN** SPRING PIN
-
78332-62101-1 * CLAMP SCREW PAD* CLAMP SCREW PAD
-
79945303-0600 * E-RING d=6* E-RING d=6
-
80910103-5612 BOLTBOLT
