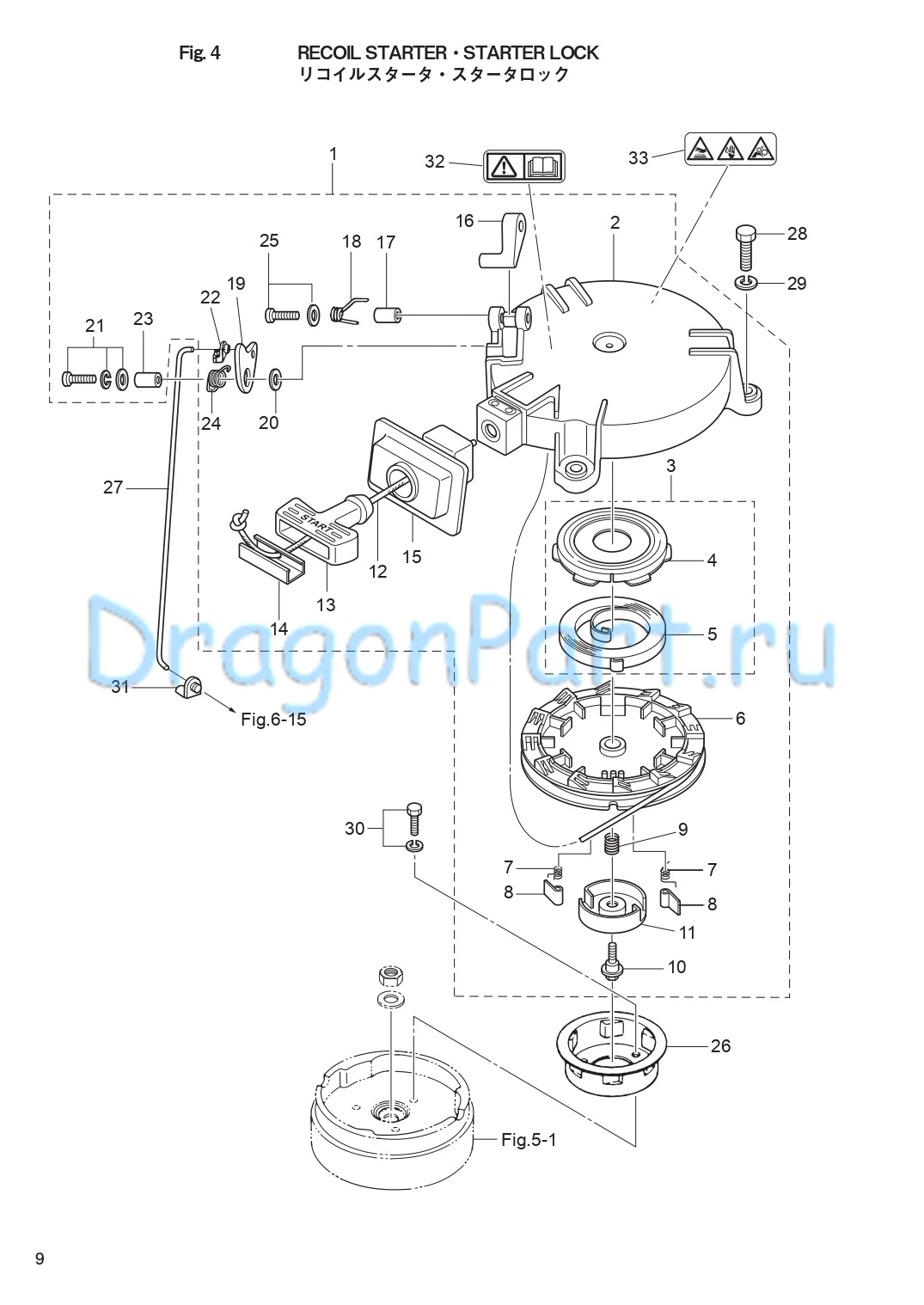

RECOIL STARTER STARTER LOCK для Tohatsu M4C - 2020 года выпуска`
-
№АртикулНазвание
-
13AS-05090-1 RECOIL STARTER ASSYRECOIL STARTER ASSY
-
23R1-05105-0 * STARTER CASE* STARTER CASE
-
33R1-05010-0 * STARTER SPRING SET* STARTER SPRING SET
-
43R1-05125-0 * STARTER SPRING CASE* STARTER SPRING CASE
-
53R1-05004-0 * STARTER SPRING* STARTER SPRING
-
63R1-05104-0 * REEL* REEL
-
73R1-05012-0 * RETURN SPRING* RETURN SPRING
-
83R1-05003-2 * RATCHET* RATCHET
-
93R1-05007-0 * FRICTION SPRING* FRICTION SPRING
-
103R1-05138-1 * BOLT 5-10-6.8-7.8* BOLT 5-10-6.8-7.8
-
113R1-05006-2 * FRICTION PLATE* FRICTION PLATE
-
123R1-05013-0 * STARTER ROPE φ4.5-1620* STARTER ROPE φ4.5-1620
-
133R1-05019-0 * STARTER HANDLE* STARTER HANDLE
-
143R1-05131-1 * ROPE ANCHOR* ROPE ANCHOR
-
153R1-05116-0 * SEALING PLATE* SEALING PLATE
-
163R1-05252-0 * STARTER LOCK* STARTER LOCK
-
173R1-05255-0 * COLLAR 4-6-21* COLLAR 4-6-21
-
183R1-05216-0 * STARTER LOCK SPRING* STARTER LOCK SPRING
-
193R1-05253-0 * STARTER LOCK CAM* STARTER LOCK CAM
-
20940103-0600 * WASHER* WASHER
-
21921503-7616 * SCREW* SCREW
-
223R1-05223-0 * ROD SNAP 3.5-2* ROD SNAP 3.5-2
-
233R1-05215-0 * COLLAR 6.1-8-6.5* COLLAR 6.1-8-6.5
-
243R1-05258-0 * STARTER LOCK CAM SPRING* STARTER LOCK CAM SPRING
-
25921503-5430 * SCREW* SCREW
-
263R1-05901-0 STARTER PULLEYSTARTER PULLEY
-
27369-05217-1 STARTER LOCK RODSTARTER LOCK ROD
-
289101F4-0623 BOLT
Recoil StarterBOLT
Recoil Starter -
29941303-0600 SPRING WASHERSPRING WASHER
-
30910121-6612 BOLT
Starter PulleyBOLT
Starter Pulley -
31345-05223-1 ROD SNAP 3.5-2ROD SNAP 3.5-2
-
323F0-72185-0 CAUTION DECAL
Recoil Starter（Front Side)CAUTION DECAL
Recoil Starter（Front Side) -
33314-72185-0 CAUTION DECAL
Recoil Starter（Rear Side)CAUTION DECAL
Recoil Starter（Rear Side)
