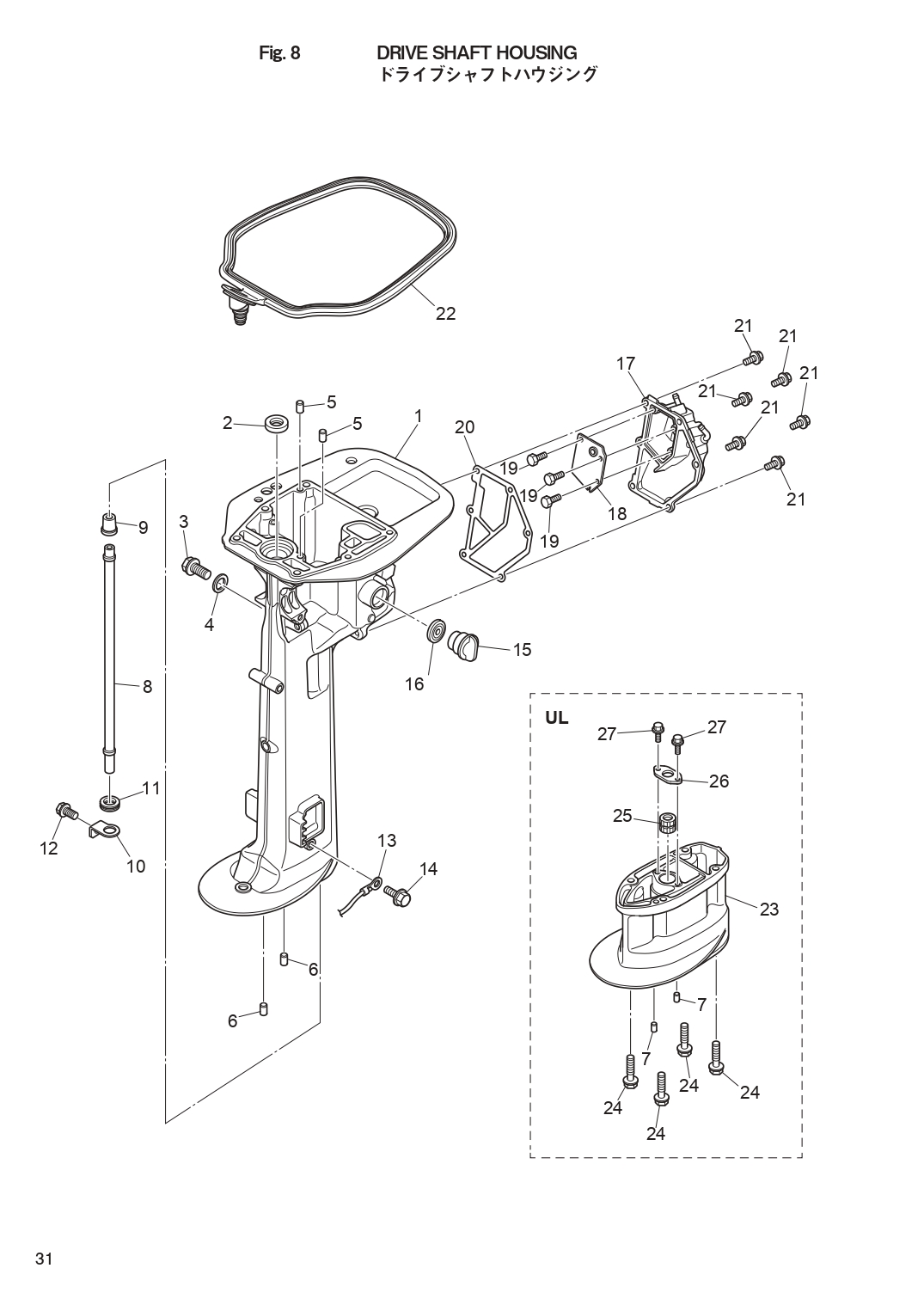

DRIVE SHAFT HOUSING для Tohatsu MFS9.9E - 2019 года выпуска`
-
№АртикулНазвание
-
13RSQ61020-0 DRIVE SHAFT HOUSING ASSY (S)DRIVE SHAFT HOUSING ASSY (S)
-
13RSQ61030-0 DRIVE SHAFT HOUSING ASSY (L)DRIVE SHAFT HOUSING ASSY (L)
-
13RTQ61020-0 DRIVE SHAFT HOUSING ASSY (S)
PT TypeDRIVE SHAFT HOUSING ASSY (S)
PT Type -
2350-01215-1 OIL SEAL 12.8-25-7OIL SEAL 12.8-25-7
-
33R3-07705-1 DRAIN BOLT 14-14DRAIN BOLT 14-14
-
43R3-07406-0 WASHER 14.5-24-1WASHER 14.5-24-1
-
5345-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
63AB-01111-0 DOWEL PIN 6-12DOWEL PIN 6-12
-
73AB-01111-0 DOWEL PIN 6-12
Extension HousingDOWEL PIN 6-12
Extension Housing -
83RS-65100-0 WATER PIPE (S)WATER PIPE (S)
-
83RS-65110-0 WATER PIPE (L)WATER PIPE (L)
-
83RS-65120-0 WATER PIPE (UL)WATER PIPE (UL)
-
93V1-65206-0 WATER PIPE SEAL (UPPER)WATER PIPE SEAL (UPPER)
-
103RS-65203-0 LOCK PLATELOCK PLATE
-
113V1-65204-0 WATER PIPE AUXILIARY MOUNT 13-2.5WATER PIPE AUXILIARY MOUNT 13-2.5
-
129101E3-5612 BOLTBOLT
-
133C8-62396-1 GROUND L=210
Drive Shaft Housing-Mount BracketGROUND L=210
Drive Shaft Housing-Mount Bracket -
14910103-0612 BOLTBOLT
-
153RS-72404-0 FLUSHING CONNECTOR CAPFLUSHING CONNECTOR CAP
-
163RS-67147-0 SEAL RINGSEAL RING
-
173RSQ61209-0 IDLE EXHAUST PORT COVER ASSYIDLE EXHAUST PORT COVER ASSY
-
183RS-62114-0 PLATEPLATE
-
199101E3-0512 BOLTBOLT
-
203RS-61220-0 IDLE EXHAUST PORT GASKETIDLE EXHAUST PORT GASKET
-
219101E3-5616 BOLTBOLT
-
223RS-67116-0 ENGINE BASEMENT SEALENGINE BASEMENT SEAL
-
233RSQ61110-0 EXTENSION HOUSING ULEXTENSION HOUSING UL
-
243BJ-60001-0 BOLT 8-31BOLT 8-31
-
253BJ-60003-0 DRIVE SHAFT BUSHINGDRIVE SHAFT BUSHING
-
263V1-64332-0 STOPPERSTOPPER
-
279101E3-5612 BOLTBOLT
