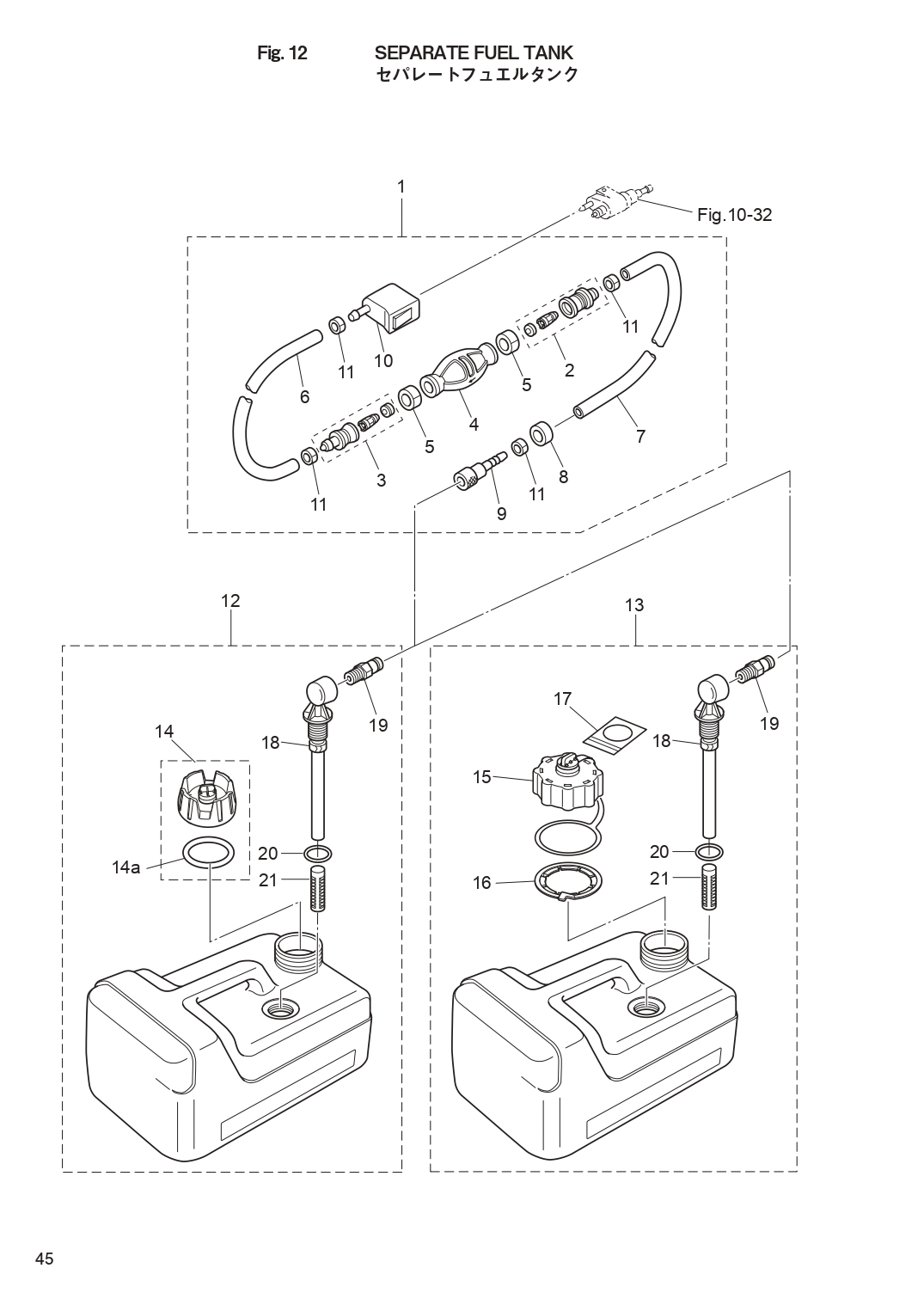

SEPARATE FUUEL TANK для Tohatsu MFS5C - 2019 года выпуска`

№

Артикул

Название
1

3H6-70200-2 PRIMER BULB ASSY

PRIMER BULB ASSY

15 180 ₽
1

3AD-70200-2 PRIMER BULB ASSY

PRIMER BULB ASSY

14 740 ₽
2

3C7-70220-1 * JOINT ASSY (INLET)

* JOINT ASSY (INLET)

800 ₽
3

3C7-70224-1 * JOINT ASSY (OUTLET)

* JOINT ASSY (OUTLET)

800 ₽
4

3C7-70211-1 * PRIMER BULB

* PRIMER BULB

1 710 ₽
4

3GF-70211-1 * PRIMER BULB

* PRIMER BULB

5 810 ₽
5

3C7-70217-0 * CLAMP

* CLAMP

280 ₽
6

98AB-70-700 * HOSE
STD 98AB-701000

* HOSE
STD 98AB-701000

800 ₽
6

3GF-70241-1 * LOW PERMEATION HOSE L=700
Low Permeation Parts USA EPA-KRI-15G

* LOW PERMEATION HOSE L=700
Low Permeation Parts USA EPA-KRI-15G

2 960 ₽
7

98AB-701600 * HOSE
STD 98AB-701000 x2

* HOSE
STD 98AB-701000 x2

950 ₽
7

3GF-70240-1 * LOW PERMEATION HOSE L=1600
Low Permeation Parts USA EPA-KRI-15G

* LOW PERMEATION HOSE L=1600
Low Permeation Parts USA EPA-KRI-15G

5 900 ₽
8

3GR-70280-0 * FUEL CONNECTOR MARK

* FUEL CONNECTOR MARK

330 ₽
9

3GF-70281-0 * FUEL CONNECTOR

* FUEL CONNECTOR

2 790 ₽
10

3GR-70250-0 * FUEL CONNECTOR

* FUEL CONNECTOR

3 850 ₽
11

332-70201-0 * CLAMP

* CLAMP

270 ₽
12

3RS-70167-0 FUEL TANK ASSY 12L
STD

FUEL TANK ASSY 12L
STD

16 280 ₽
13

3UA-70167-0 FUEL TANK ASSY 12L
for USA Model

FUEL TANK ASSY 12L
for USA Model

0 ₽
14

3RS-70020-0 * FUEL TANK CAP ASSY (12L)
STD

* FUEL TANK CAP ASSY (12L)
STD

2 910 ₽
14a

3RS-70021-0 ** TANK FILLER CAP GASKET
STD

** TANK FILLER CAP GASKET
STD

0 ₽
15

3AC-70052-1 FUEL TANK CAP ASSY
for USA Model

FUEL TANK CAP ASSY
for USA Model

3 940 ₽
16

3AC-70055-0 RETAINING RING
for USA Model

RETAINING RING
for USA Model

690 ₽
17

3AC-70352-1 INSTRUCTION TAG
for USA Model

INSTRUCTION TAG
for USA Model

210 ₽
18

3B2-70155-0 PICK-UP ELBOW ASSY (12L)
STD

PICK-UP ELBOW ASSY (12L)
STD

1 450 ₽
19

3E0-70270-0 QUICK-CONNECTOR (MALE)

QUICK-CONNECTOR (MALE)

2 730 ₽
20

3C7-70199-0 O-RING
STD

O-RING
STD

270 ₽
21

3C7-70113-0 FILTER
STD

FILTER
STD

710 ₽
