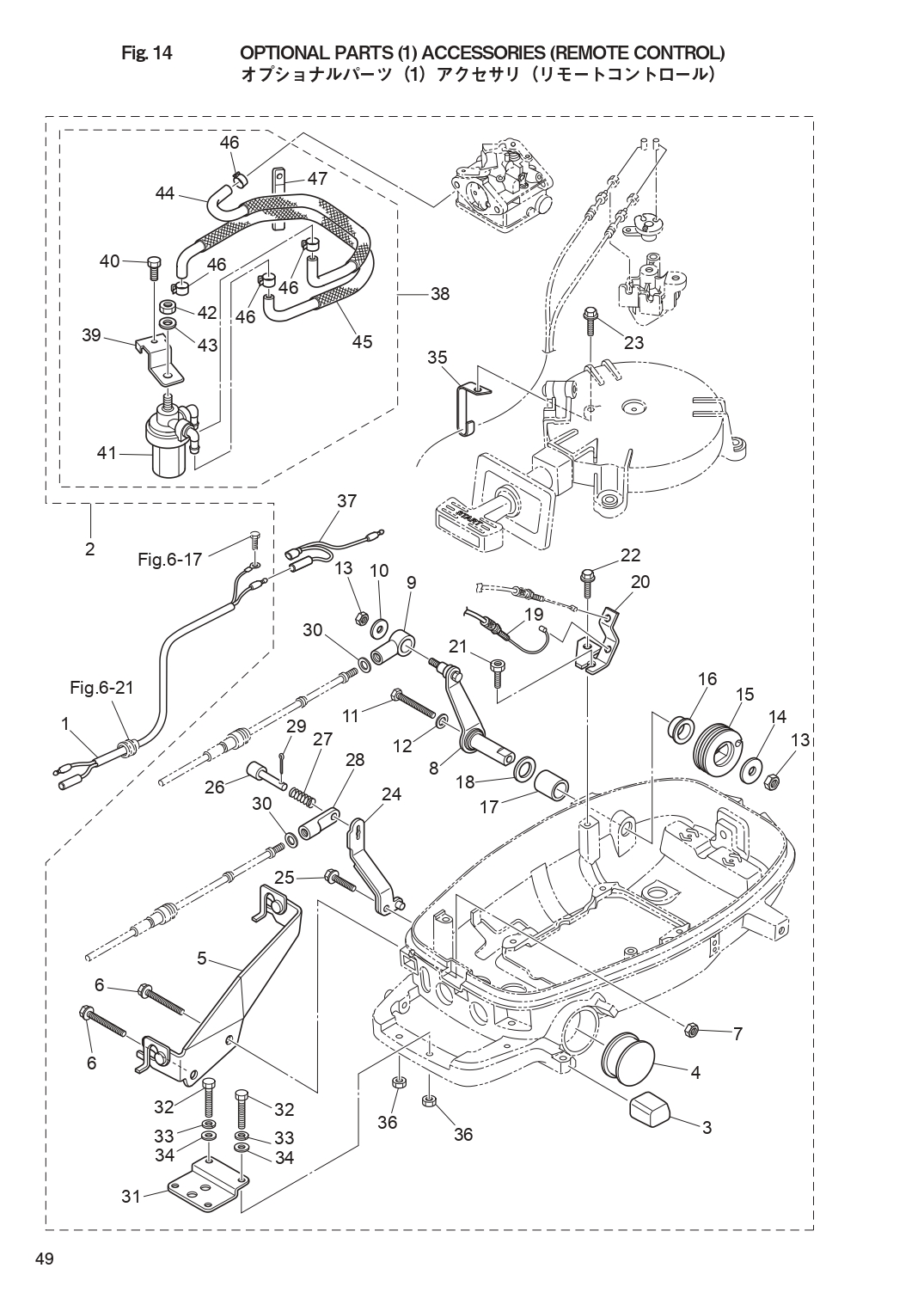

OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL) для Tohatsu MFS5C - 2019 года выпуска`
-
№АртикулНазвание
-
1369-83846-0 REMOTE CONTROL STOP CORD L=2000REMOTE CONTROL STOP CORD L=2000
-
1369-83848-0 REMOTE CONTROL STOP CORD L=3200REMOTE CONTROL STOP CORD L=3200
-
1369-83853-0 REMOTE CONTROL STOP CORD L=3900REMOTE CONTROL STOP CORD L=3900
-
1369-83858-0 REMOTE CONTROL STOP CORD L=5900REMOTE CONTROL STOP CORD L=5900
-
23GR-83880-0 REMOTE CONTROL FITTING ASSYREMOTE CONTROL FITTING ASSY
-
33JK-67161-0 * GROMMET 20-29* GROMMET 20-29
-
43H6-67161-0 * GROMMET 43-23* GROMMET 43-23
-
53GR-83820-0 * CABLE CLIP ASSY* CABLE CLIP ASSY
-
6910103-6640 * BOLT* BOLT
-
7930103-0600 * NUT* NUT
-
83GR-83910-0 * THROTTLE LEVER (REMOTE CONT)* THROTTLE LEVER (REMOTE CONT)
-
93R0-83715-0 * CABLE JOINT 4.5-40.5* CABLE JOINT 4.5-40.5
-
10346-67115-0 * WASHER 6.5-21-1* WASHER 6.5-21-1
-
11910103-0660 * BOLT* BOLT
-
12941303-0600 * SPRING WASHER* SPRING WASHER
-
13930403-0600 * NYLON NUT 6-P1.0* NYLON NUT 6-P1.0
-
14345-05122-1 * WASHER 6.5-23-1.5* WASHER 6.5-23-1.5
-
153JD-63611-0 * THROTTLE DRUM* THROTTLE DRUM
-
163H6-63510-0 * BUSHING 14-15.8-7* BUSHING 14-15.8-7
-
17369-67105-0 * HOOK LEVER BUSHING* HOOK LEVER BUSHING
-
18338-67147-0 * SEAL RING 13.8-22-3.7* SEAL RING 13.8-22-3.7
-
193GR-83873-0 * THROTTLE WIRE (REMOTE CONTROL)* THROTTLE WIRE (REMOTE CONTROL)
-
203GR-63508-0 * THROTTLE WIRE BRACKET* THROTTLE WIRE BRACKET
-
213GR-04317-0 * GROMMET* GROMMET
-
22910103-5614 * BOLT* BOLT
-
233AD-06864-0 * PRE-COATED BOLT 6-25* PRE-COATED BOLT 6-25
-
243GR-66129-0 * SHIFT LEVER (REMOTE CONTROL)* SHIFT LEVER (REMOTE CONTROL)
-
253V1-60108-0 * PRE-COATED BOLT 6-16* PRE-COATED BOLT 6-16
-
26332-83728-0 * PIN* PIN
-
27332-83729-0 * SPRING* SPRING
-
28369-83715-1 * CABLE JOINT* CABLE JOINT
-
29951403-0220 * SPRING PIN* SPRING PIN
-
30332-83725-0 * WASHER 5.5-14-1.2* WASHER 5.5-14-1.2
-
31369-83830-2 * STEERING HOOK PLATE* STEERING HOOK PLATE
-
32910103-0830 * BOLT* BOLT
-
33941303-0800 * SPRING WASHER* SPRING WASHER
-
34940103-0800 * WASHER* WASHER
-
353JK-63505-0 * CABLE HOLDER* CABLE HOLDER
-
36930403-0800 * NYLON NUT 8-P1.25* NYLON NUT 8-P1.25
-
373AS-83883-0 * SEPARATE CORD* SEPARATE CORD
-
383GR-02217-0 * FUEL FILTER KIT* FUEL FILTER KIT
-
393GR-63737-0 ** STAY** STAY
-
40910103-5610 ** BOLT** BOLT
-
41346-02230-0 ** FUEL FILTER ASSY** FUEL FILTER ASSY
-
42930103-0800 ** NUT** NUT
-
43940121-0800 ** WASHER** WASHER
-
443LE-02160-0 ** FUEL HOSE W/PROTECTOR 25-193-30
Low Permeation Parts EPA-KRI-15G** FUEL HOSE W/PROTECTOR 25-193-30
Low Permeation Parts EPA-KRI-15G -
453JD-02160-0 ** FUEL HOSE W/PROTECTOR 25-315-25
Low Permeation Parts EPA-KRI-15G** FUEL HOSE W/PROTECTOR 25-315-25
Low Permeation Parts EPA-KRI-15G -
463GT-35143-0 ** CLIP φ9.4** CLIP φ9.4
-
473T4-06972-1 ** CLAMP 6.5-87P** CLAMP 6.5-87P
Все узлы модели:
- INTEGRAL FUEL TANK
- • OPTIONAL PARTS (1) ACCESSORIES (REMOTE CONTROL)
- COMPONENT PARTS OF REMOTE CONTROL
- OPTIONAL PARTS (2) ACCESSORIES
- ASSEMBLY KIT PARTS
- CYLINDER OIL PAN
- PISTON CRANK SHAFT
- CYLINDER HEAD VALVE CAMPSHAFT
- CARBURETOR FUEL PUMP
- RECOIL STARTER
- MAGNETO
- DRIVE SHAFT HOUSING SHIFT
- GEAR CASE
- BRACKET REVERSE LOCK
- BOTTOM COWL TILLER HANDLE
- TOP COWL
- SEPARATE FUUEL TANK
