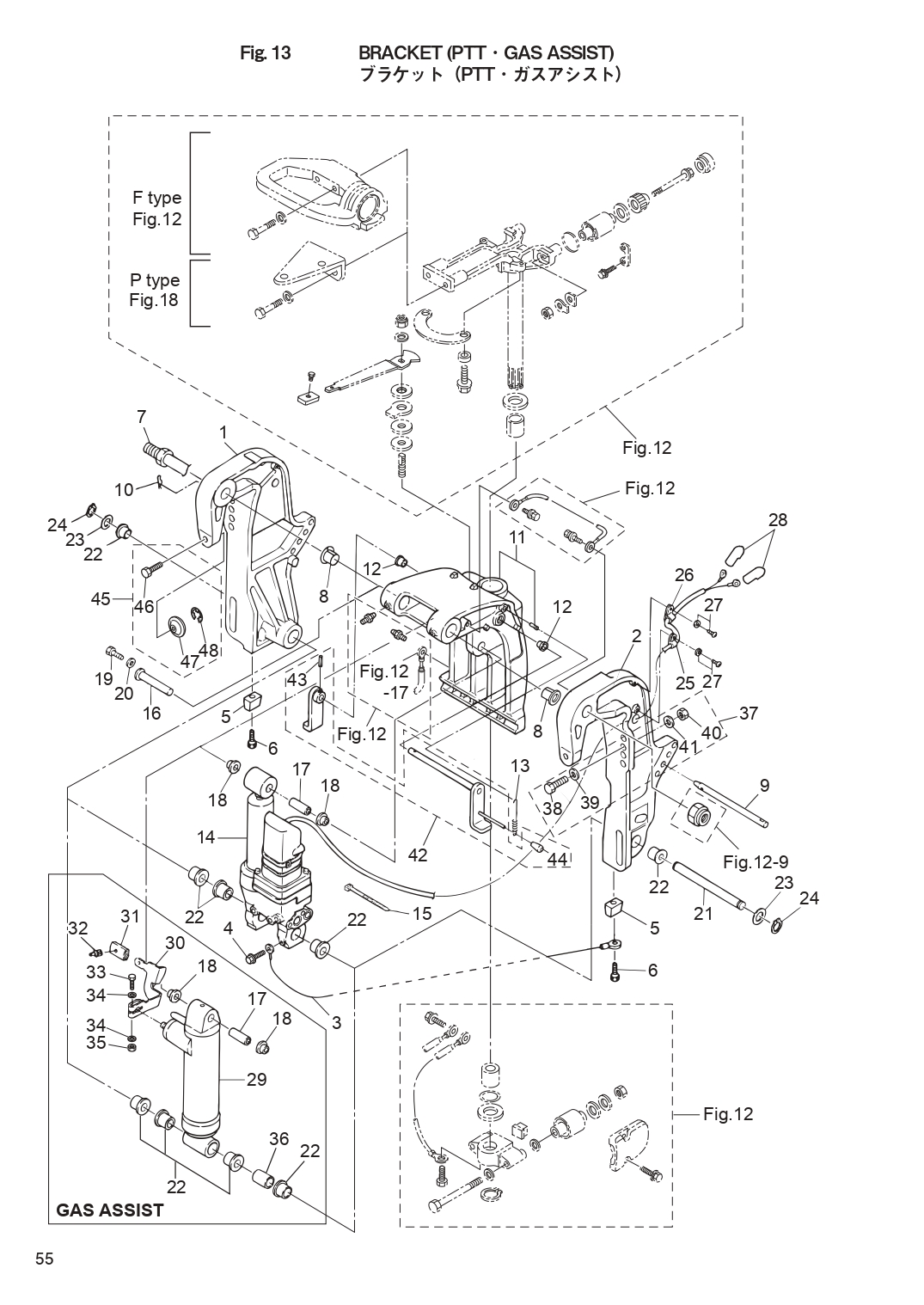

BRACKET (PTT GAS ASSIST) для Tohatsu MFS25C - 2019 года выпуска`

№

Артикул

Название
1

3AFQ77211-1 CLAMP BRACKET (PTT-R)
for Gas Assist Model Starboard Side

CLAMP BRACKET (PTT-R)
for Gas Assist Model Starboard Side

19 530 ₽
1

3AEQ77211-1 CLAMP BRACKET (PTT-R)
for PTT Model Starboard Side

CLAMP BRACKET (PTT-R)
for PTT Model Starboard Side

19 530 ₽
2

3AFQ77212-2 CLAMP BRACKET (PTT-L)
for Gas Assist Model Port Side

CLAMP BRACKET (PTT-L)
for Gas Assist Model Port Side

19 530 ₽
2

3AEQ77212-2 CLAMP BRACKET (PTT-L)
for PTT Model Port Side

CLAMP BRACKET (PTT-L)
for PTT Model Port Side

19 530 ₽
3

398-62396-1 GROUND L=130
Clamp Bracket-Swivel Bracket

GROUND L=130
Clamp Bracket-Swivel Bracket

610 ₽
4

910103-5612 BOLT
for PTT Model

BOLT
for PTT Model

140 ₽
5

3B7-60218-1 ANODE

ANODE

1 380 ₽
6

910103-5630 BOLT

BOLT

170 ₽
7

3AD-62191-0 SWIVEL BRACKET SHAFT ASSY
Bracket Bolt

SWIVEL BRACKET SHAFT ASSY
Bracket Bolt

4 780 ₽
8

3C8-77213-0 BUSHING

BUSHING

1 130 ₽
9

3R0-77118-0 PTT THRUST ROD

PTT THRUST ROD

2 670 ₽
10

951603-1000 SNAP PIN

SNAP PIN

120 ₽
11

3ACQ77208-2 SWIVEL BRACKET ASSY

SWIVEL BRACKET ASSY

24 350 ₽
12

353-63207-0 COLLAR 10.2-12-12

COLLAR 10.2-12-12

260 ₽
13

3R0-62473-0 TILT STOPPER SPRING

TILT STOPPER SPRING

550 ₽
14

3AC-77151-1 PT ASSY
see Fig.14 for PTT Model

PT ASSY
see Fig.14 for PTT Model

181 680 ₽
15

1H2-31534-0 BAND LEAD WIRE 300
for PTT Model

BAND LEAD WIRE 300
for PTT Model

210 ₽
16

3KY-77071-0 CYLINDER PIN (UPPER)

CYLINDER PIN (UPPER)

1 040 ₽
17

3R0-77075-0 BUSHING 13-16-40

BUSHING 13-16-40

390 ₽
18

3R0-77076-0 BUSHING 13-17-19.5 13-17-19.5

BUSHING 13-17-19.5 13-17-19.5

200 ₽
19

910103-0612 BOLT

BOLT

120 ₽
20

345-05122-1 WASHER 6.5-23-1.5

WASHER 6.5-23-1.5

570 ₽
21

3KY-77101-0 CYLINDER PIN (LOWER)

CYLINDER PIN (LOWER)

4 420 ₽
22

3C8-77076-1 BUSHING 18-24-22
Clamp Bracket, Cylinder for PTT Model

BUSHING 18-24-22
Clamp Bracket, Cylinder for PTT Model

650 ₽
22

3C8-77076-1 BUSHING 18-24-22
Clamp Bracket, Cylinder for Gas Assist Model

BUSHING 18-24-22
Clamp Bracket, Cylinder for Gas Assist Model

650 ₽
23

3R0-77112-0 WASHER 18.2-34-1

WASHER 18.2-34-1

270 ₽
24

945103-1800 C-RING d=18

C-RING d=18

210 ₽
25

336-06973-0 CLAMP 6-9.5L
for PTT Model

CLAMP 6-9.5L
for PTT Model

290 ₽
26

345-06915-0 CLAMP 6.5-14L
for PTT Model

CLAMP 6.5-14L
for PTT Model

370 ₽
27

921503-5612 SCREW
for PTT Model

SCREW
for PTT Model

120 ₽
28

3Y1-76145-0 TERMINAL CAP 8-13-28
Red Starter Solenoid for PTT Model

TERMINAL CAP 8-13-28
Red Starter Solenoid for PTT Model

290 ₽
29

3R0Q77601-2 GAS SHOCK ABSORBER
for Gas Assist Model

GAS SHOCK ABSORBER
for Gas Assist Model

68 560 ₽
30

3R0-66311-0 REVERSE LOCK LEVER
for Gas Assist Model

REVERSE LOCK LEVER
for Gas Assist Model

3 570 ₽
31

3AL-66333-0 REVERSE LOCK LEVER GRIP
for Gas Assist Model

REVERSE LOCK LEVER GRIP
for Gas Assist Model

450 ₽
32

346-66334-0 STOPPER
for Gas Assist Model

STOPPER
for Gas Assist Model

150 ₽
33

3V2-60001-0 BOLT 6-35
for Gas Assist Model

BOLT 6-35
for Gas Assist Model

360 ₽
34

940103-0600 WASHER
for Gas Assist Model

WASHER
for Gas Assist Model

110 ₽
35

930103-0600 NUT
for Gas Assist Model

NUT
for Gas Assist Model

190 ₽
36

3R0-77105-0 COLLAR 18.2-21.7-30
for Gas Assist Model

COLLAR 18.2-21.7-30
for Gas Assist Model

3 080 ₽
37

3AD-72120-0 RIGGING BOLT SET

RIGGING BOLT SET

6 210 ₽
38

3C7-62133-2 * BOLT 12-105 P1.25

* BOLT 12-105 P1.25

960 ₽
39

353-61334-0 * WASHER 13-34-3

* WASHER 13-34-3

860 ₽
40

3C7-62139-1 * NUT 12-P1.25

* NUT 12-P1.25

250 ₽
41

9401E3-1200 * WASHER

* WASHER

190 ₽
42

3GF-62466-1 TILT STOPPER KIT
for PTT Model

TILT STOPPER KIT
for PTT Model

8 190 ₽
42

3AC-62466-1 TILT STOPPER KIT
for Gas Assist Model

TILT STOPPER KIT
for Gas Assist Model

8 190 ₽
43

951403-3516 * SPRING PIN 3.5-16

* SPRING PIN 3.5-16

120 ₽
44

369-62433-1 * TILT STOPPER GRIP

* TILT STOPPER GRIP

200 ₽
45

3C8-77217-0 CLAMP SCREW KIT

CLAMP SCREW KIT

5 900 ₽
46

3C8-77216-0 * CLAMP SCREW (PTT)

* CLAMP SCREW (PTT)

4 730 ₽
47

332-62101-1 * CLAMP SCREW PAD

* CLAMP SCREW PAD

460 ₽
48

3C8-62107-0 * SHOULDER BOLT

* SHOULDER BOLT

780 ₽
