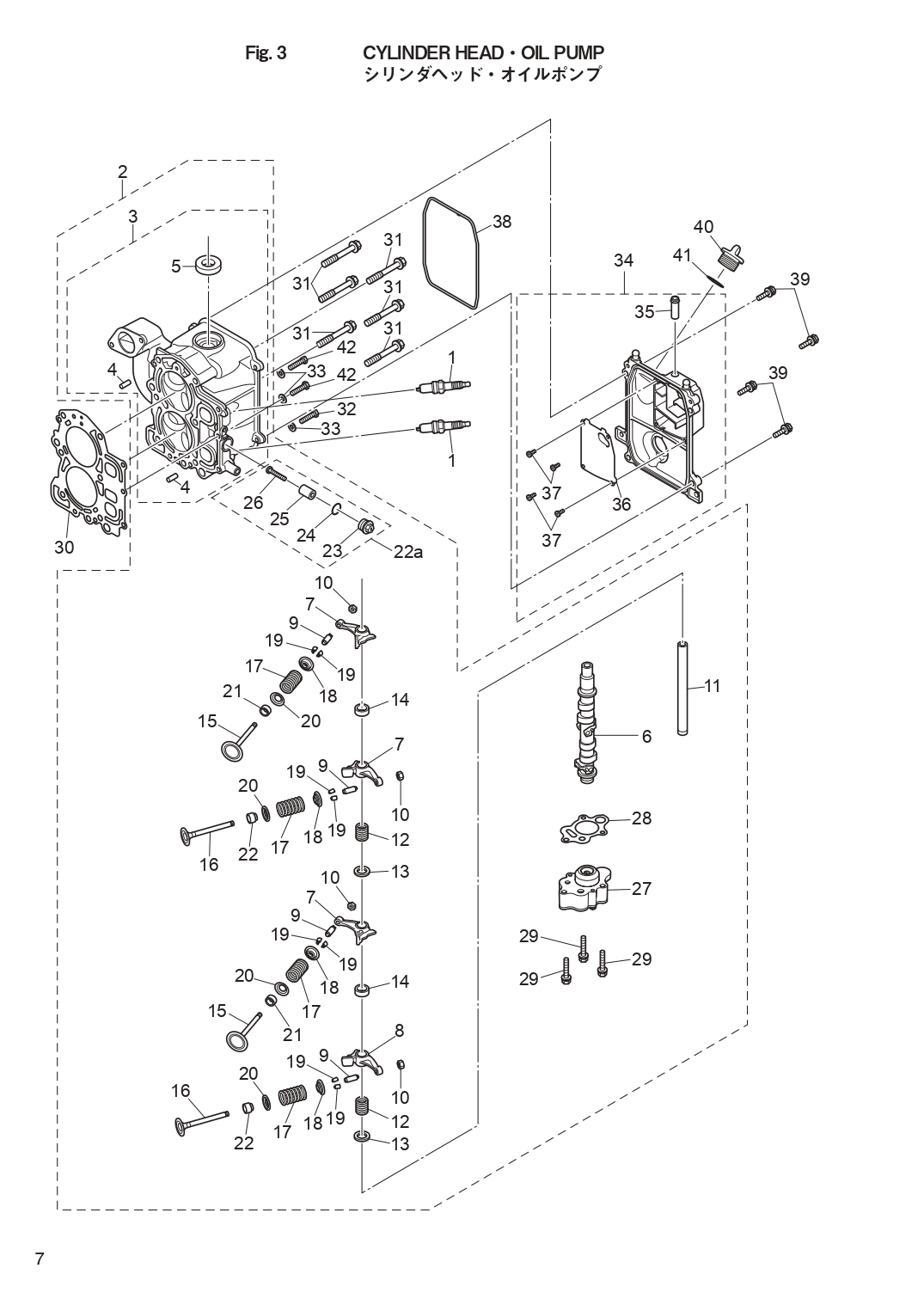

CYLINDER HEAD OIL PUMP для Tohatsu MFS20E - 2019 года выпуска`
-
№АртикулНазвание
-
19701-1-1103 SPARK PLUG(DCPR6E)SPARK PLUG(DCPR6E)
-
23RSB01000-0 CYLINDER HEAD COMPLETECYLINDER HEAD COMPLETE
-
33RSB01001-0 * CYLINDER HEAD ASSY* CYLINDER HEAD ASSY
-
4345-01111-0 ** DOWEL PIN 6-12** DOWEL PIN 6-12
-
53H8-07025-0 ** OIL SEAL 18-35-8** OIL SEAL 18-35-8
-
63RS-07810-0 * CAMSHAFT ASSY* CAMSHAFT ASSY
-
73Y2-07935-0 * ROCKER ARM* ROCKER ARM
-
83RS-07935-0 * ROCKER ARM* ROCKER ARM
-
93R0-07238-0 * ADJUSTING SCREW* ADJUSTING SCREW
-
103H8-07237-0 * ADJUSTING NUT* ADJUSTING NUT
-
113RS-07920-0 * ROCKER ARM SHAFT* ROCKER ARM SHAFT
-
123AA-07225-0 * ROCKER SHAFT SPRING L=25* ROCKER SHAFT SPRING L=25
-
133R3-07227-0 * WASHER 13.2-21.8-2* WASHER 13.2-21.8-2
-
143RS-07939-0 * COLLAR* COLLAR
-
153RS-07901-0 * INTAKE VALVE* INTAKE VALVE
-
163RS-07902-0 * EXHAUST VALVE* EXHAUST VALVE
-
173RS-07903-0 * VALVE SPRING* VALVE SPRING
-
183V1-07221-0 * RETAINER* RETAINER
-
193H6-07223-0 * COTTER* COTTER
-
203RS-07905-0 * VALVE SPRING SEAT* VALVE SPRING SEAT
-
213R3-07204-0 * INTAKE VALVE STEM SEAL* INTAKE VALVE STEM SEAL
-
223R3-07206-0 * EXHAUST VALVE STEM SEAL* EXHAUST VALVE STEM SEAL
-
22a3KM-01142-0 * ANODE PLUG ASSY* ANODE PLUG ASSY
-
233P0-01143-0 ** ANODE PLUG** ANODE PLUG
-
243T5-10046-0 ** O-RING 1.9-13** O-RING 1.9-13
-
253P0-60218-0 ** ANODE** ANODE
-
26921503-0530 ** SCREW** SCREW
-
273RS-07600-0 * OIL PUMP ASSY* OIL PUMP ASSY
-
283RS-07653-0 * OIL PUMP GASKET* OIL PUMP GASKET
-
299101E3-5635 * BOLT* BOLT
-
303RS-01005-0 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
313H8-01013-0 CYLINDER HEAD BOLT 8-60CYLINDER HEAD BOLT 8-60
-
329161F9-0640 BOLTBOLT
-
339402E3-0600 WASHERWASHER
-
343RSB01020-0 CYLINDER HEAD COVER ASSYCYLINDER HEAD COVER ASSY
-
353H8-02093-0 * NIPPLE 10-32* NIPPLE 10-32
-
363RS-07731-0 * BREATHER CHAMBER COVER* BREATHER CHAMBER COVER
-
37921503-0406 * SCREW* SCREW
-
383RS-01024-0 CYLINDER HEAD COVER GASKETCYLINDER HEAD COVER GASKET
-
399101E3-5625 BOLTBOLT
-
403R0-71015-1 OIL FILLER CAPOIL FILLER CAP
-
413R0-07422-0 O-RING 3.1-24.4O-RING 3.1-24.4
-
423NT-02319-0 BOLT 25mmBOLT 25mm
