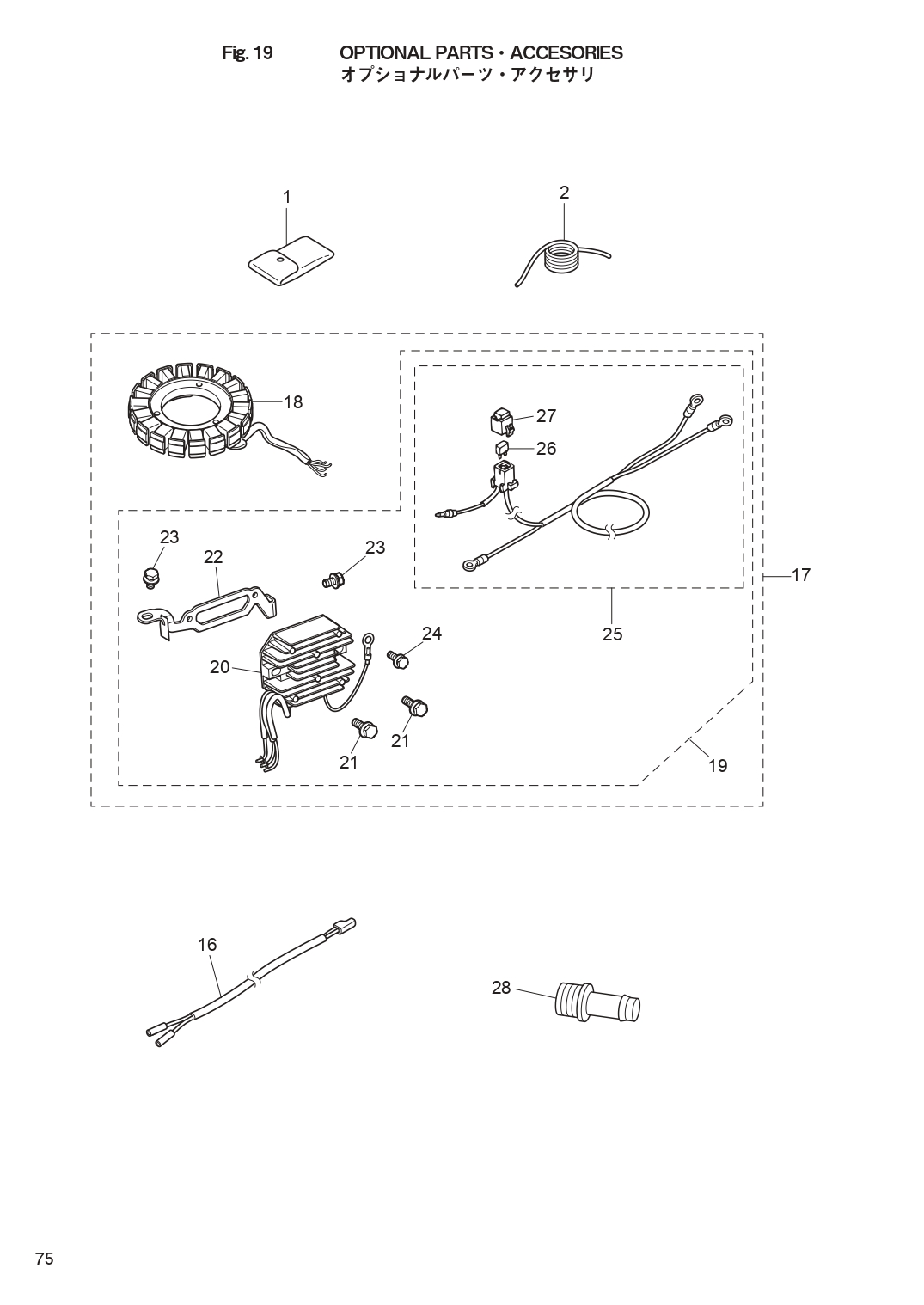

OPTIONAL PARTS ACCESSORIES для Tohatsu MFS15E - 2019 года выпуска`
-
№АртикулНазвание
-
13BJ-72100-0 TOOL KITTOOL KIT
-
23B7-72201-0 SAFETY ROPE φ5-1600SAFETY ROPE φ5-1600
-
16361-72539-0 TACHOMETER LEAD WIRE L=6000TACHOMETER LEAD WIRE L=6000
-
173RS-06128-0 ALTERNATOR KITALTERNATOR KIT
-
183RT-06023-0 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
193RS-76160-0 * RECTIFIER KIT* RECTIFIER KIT
-
203RS-76060-0 ** RECTIFIER COMPLETE** RECTIFIER COMPLETE
-
21910103-5620 ** BOLT** BOLT
-
223RS-76163-0 ** RECTIFIER BRACKET** RECTIFIER BRACKET
-
23910103-5612 ** BOLT** BOLT
-
24910103-5612 ** BOLT** BOLT
-
253BJ-76161-0 ** EXTENSION CORD L=3000** EXTENSION CORD L=3000
-
263T5-76247-0 *** FUSE 20A*** FUSE 20A
-
271E0-34093-0 *** CAP
Yellow*** CAP
Yellow -
283T1-72405-0 HOSE JOINT (WATER-WORKS)HOSE JOINT (WATER-WORKS)
Все узлы модели:
- GEAR CASE
- BRACKET (MANUAL )
- BRACKET (PTT)
- TILLER HANDLE SHIFT
- FRONT PANEL DRIVE SHAFT HOUSING COVER
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- • OPTIONAL PARTS ACCESSORIES
- ASSEMBLY KIT PARTS
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- CYLINDER HEAD OIL PUMP
- PULLEY TIMING BELT
- FUEL PUMP
- RECOIL STARTER
- MAGNETO ELECTRIC PARTS
- DRIVE SHAFT HOUSING
