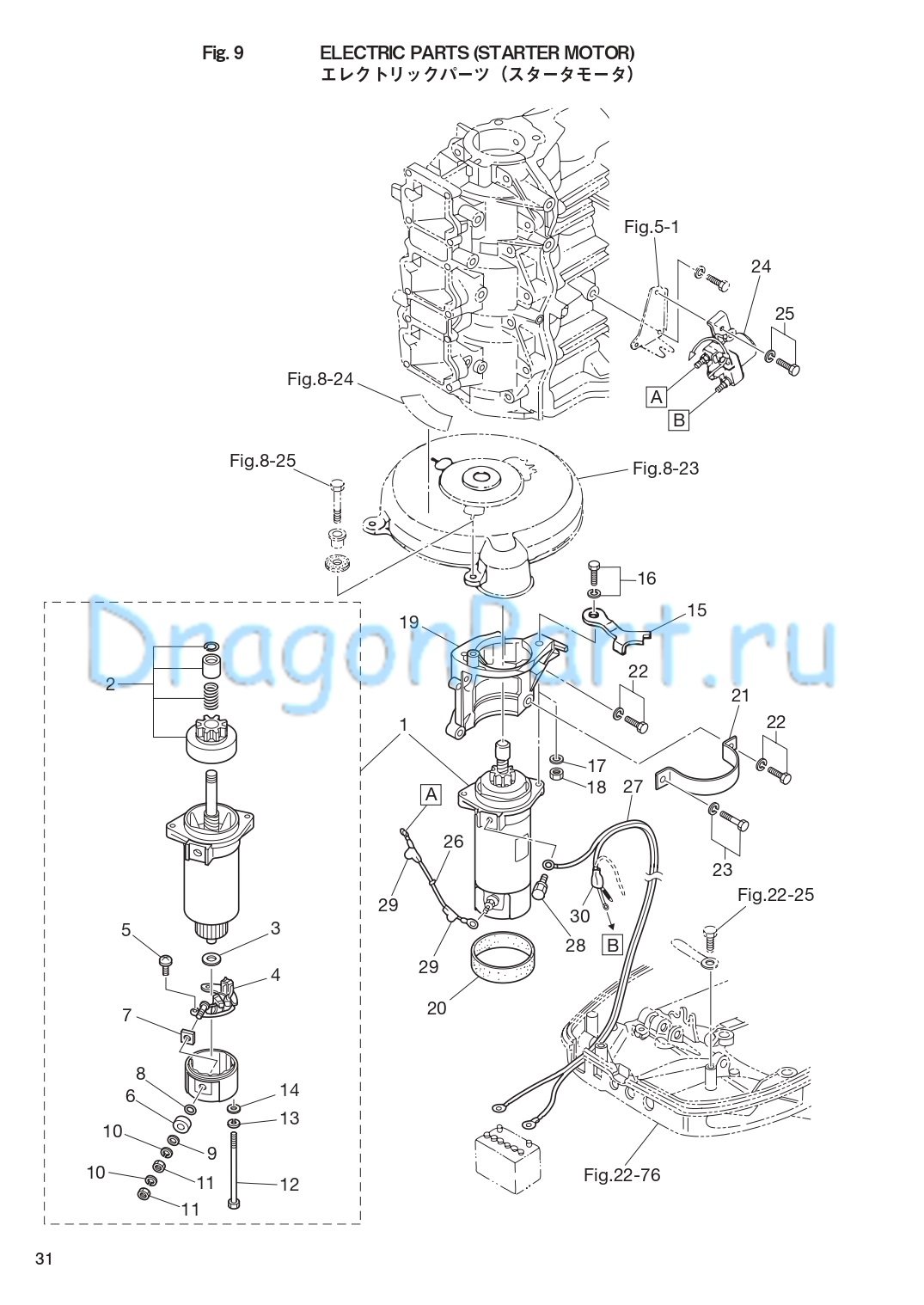

ELECTRIC PARTS (STARTER MOTOR) для Tohatsu MW50D2 - 2018 года выпуска
-
№АртикулНазвание
-
13C8-76010-1 STARTER MOTOR ASSY
for EF/EP TypeSTARTER MOTOR ASSY
for EF/EP Type -
23C8-76015-0 * PINION ASSY* PINION ASSY
-
33C8-75015-0 * WASHER* WASHER
-
43C8-75014-0 * BRUSH HOLDER ASSY* BRUSH HOLDER ASSY
-
5921521-6408 * SCREW* SCREW
-
63C8-75016-0 * BUSHING* BUSHING
-
73C8-75017-0 * BUSHING* BUSHING
-
83C8-75018-0 * O-RING* O-RING
-
9940103-0600 * WASHER* WASHER
-
10941303-0600 * SPRING WASHER* SPRING WASHER
-
11930203-0600 * NUT* NUT
-
123C8-75019-0 * BOLT* BOLT
-
13941321-0500 * SPRING WASHER* SPRING WASHER
-
14940221-0500 * WASHER* WASHER
-
153C8-06105-0 COIL PLATE STOPPER
ALLCOIL PLATE STOPPER
ALL -
16910103-6825 BOLT
for MF TypeBOLT
for MF Type -
16910103-6825 BOLT
for EF/EP TypeBOLT
for EF/EP Type -
17940103-0800 WASHER
for MF TypeWASHER
for MF Type -
18930103-0800 NUT
for MF TypeNUT
for MF Type -
193C8B05101-0 BRACKET
Black for M40/50D2, MW50D2BRACKET
Black for M40/50D2, MW50D2 -
203C8-76007-0 DAMPER
for EF/EP TypeDAMPER
for EF/EP Type -
213C8-76009-0 STARTER MOTOR BAND
for EF/EP TypeSTARTER MOTOR BAND
for EF/EP Type -
22910103-6825 BOLTBOLT
-
23910103-6820 BOLT
for EF/EP TypeBOLT
for EF/EP Type -
24346-76040-0 STARTER SOLENOID
for EF/EP TypeSTARTER SOLENOID
for EF/EP Type -
25910103-6616 BOLTBOLT
-
263C8-76141-1 STARTER CABLE L=160
for EF/EP TypeSTARTER CABLE L=160
for EF/EP Type -
273B7-76120-2 BATTERY CABLE L=3000
for EF/EP TypeBATTERY CABLE L=3000
for EF/EP Type -
28910103-6612 BOLTBOLT
-
293A3-76145-0 TERMINAL CAPTERMINAL CAP
-
303B7-76145-0 TERMINAL CAPTERMINAL CAP
