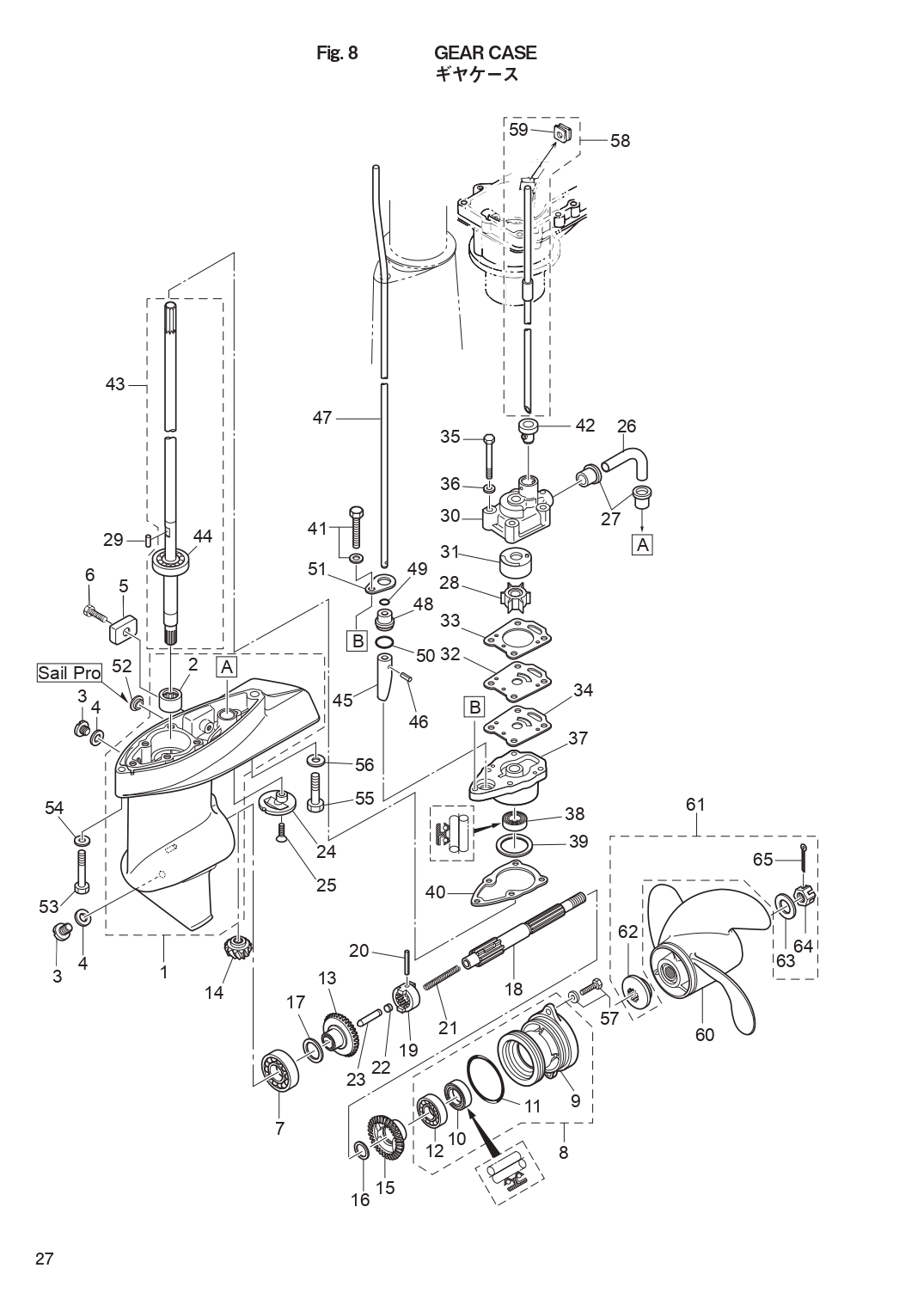

GEAR CASE для Tohatsu MFS6C - 2018 года выпуска`
-
№АртикулНазвание
-
1369Q60000-3 GEAR CASE ASSY
STDGEAR CASE ASSY
STD -
1399Q60000-3 GEAR CASE ASSY
for Sail ProGEAR CASE ASSY
for Sail Pro -
2369-60211-0 * ROLLER BEARING 14-20-12* ROLLER BEARING 14-20-12
-
3332-60005-2 PLUG 8-8PLUG 8-8
-
4332-60006-0 GASKET 8.1-15-1GASKET 8.1-15-1
-
53H6-60218-0 ANODEANODE
-
6910103-0616 BOLTBOLT
-
79601-0-6004 BALL BEARING 6004BALL BEARING 6004
-
8369Q87323-1 PROPELLER SHAFT HOUSING ASSYPROPELLER SHAFT HOUSING ASSY
-
9369Q60101-1 * PROPELLER SHAFT HOUSING* PROPELLER SHAFT HOUSING
-
10369-60111-0 * OIL SEAL 15-28-10* OIL SEAL 15-28-10
-
11345-65015-0 * O-RING 3.2-47* O-RING 3.2-47
-
129601-0-6002 * BALL BEARING 6002* BALL BEARING 6002
-
133GR-64010-0 BEVEL GEAR ASSY (A)BEVEL GEAR ASSY (A)
-
143GR-64020-0 BEVEL GEAR BBEVEL GEAR B
-
153GR-64089-0 BEVEL GEAR ASSY (C)BEVEL GEAR ASSY (C)
-
16369-64032-0 WASHER 15.2-19-1.9WASHER 15.2-19-1.9
-
17369-64014-0 SHIM 21-28-0.1SHIM 21-28-0.1
-
17369-64015-0 SHIM 21-28-0.15SHIM 21-28-0.15
-
18369-64211-1 PROPELLER SHAFTPROPELLER SHAFT
-
19301-64215-1 CLUTCHCLUTCH
-
20301-64217-0 PIN 3.5-28PIN 3.5-28
-
21393-64221-0 SPRINGSPRING
-
22369-64222-0 SPRING RETAINERSPRING RETAINER
-
23369-64223-0 PUSH RODPUSH ROD
-
24369-60206-0 WATER STRAINERWATER STRAINER
-
25921803-0620 SCREWSCREW
-
26369-65035-0 WATER PIPE (LOWER)WATER PIPE (LOWER)
-
27369-65036-0 SEALSEAL
-
28369-65021-1 WATER PUMP IMPELLERWATER PUMP IMPELLER
-
29369-65022-0 KEY φ2-11
Pump ImpellerKEY φ2-11
Pump Impeller -
30369-65016-0 PUMP CASE (UPPER)PUMP CASE (UPPER)
-
31369-65011-0 PUMP CASE LINERPUMP CASE LINER
-
32369-65025-0 WATER PUMP GUIDE PLATEWATER PUMP GUIDE PLATE
-
33369-65018-0 PUMP CASE GASKETPUMP CASE GASKET
-
34369-65029-0 GUIDE PLATE GASKETGUIDE PLATE GASKET
-
359161E3-0645 BOLTBOLT
-
36940103-0600 WASHERWASHER
-
37369-65017-1 PUMP CASE (LOWER)PUMP CASE (LOWER)
-
38369-60223-0 OIL SEAL 10-24-8OIL SEAL 10-24-8
-
39369-64081-1 SHIM 26.5-34.8-0.1SHIM 26.5-34.8-0.1
-
39369-64082-1 SHIM 26.5-34.8-0.15SHIM 26.5-34.8-0.15
-
40369-65020-0 PUMP CASE GASKET (LOWER)PUMP CASE GASKET (LOWER)
-
41910103-5625 BOLTBOLT
-
42369-65014-0 WATER PIPE SEAL (LOWER)WATER PIPE SEAL (LOWER)
-
43369-64301-0 DRIVE SHAFT ASSY (S)
for Transom "S"DRIVE SHAFT ASSY (S)
for Transom "S" -
43369-64302-0 DRIVE SHAFT ASSY (L)
for Transom "L"DRIVE SHAFT ASSY (L)
for Transom "L" -
43369-64303-0 DRIVE SHAFT ASSY (UL)
for Transom "UL"DRIVE SHAFT ASSY (UL)
for Transom "UL" -
449601-0-6300 * BALL BEARING 6300* BALL BEARING 6300
-
453GR-66011-0 CLUTCH CAMCLUTCH CAM
-
46951407-0310 SPRING PIN 3-10SPRING PIN 3-10
-
47369-66012-1 CAM ROD (S)
for Transom "S"CAM ROD (S)
for Transom "S" -
47369-66013-1 CAM ROD (L)
for Transom "L"CAM ROD (L)
for Transom "L" -
47369-66014-2 CAM ROD (UL)
for Transom "UL"CAM ROD (UL)
for Transom "UL" -
48369-66031-0 CAM ROD BUSHINGCAM ROD BUSHING
-
49369-66021-1 O-RING 2.5-4.9O-RING 2.5-4.9
-
50332-66032-0 O-RING 2.4-15.4O-RING 2.4-15.4
-
51369-66033-0 STOPPERSTOPPER
-
523DK-61016-0 GROMMET 12-3
Sail ProGROMMET 12-3
Sail Pro -
539161E3-0645 BOLTBOLT
-
549401E3-0600 WASHERWASHER
-
559161E3-0835 BOLTBOLT
-
569401E3-0800 WASHERWASHER
-
579101E3-5616 BOLTBOLT
-
58369-65100-0 WATER PIPE ASSY (S)
for Transom "S"WATER PIPE ASSY (S)
for Transom "S" -
58369-65110-0 WATER PIPE ASSY (L)
for Transom "L"WATER PIPE ASSY (L)
for Transom "L" -
58369-65120-0 WATER PIPE ASSY (UL)
for Transom "UL"WATER PIPE ASSY (UL)
for Transom "UL" -
59369-65195-0 * GROMMET 10-2* GROMMET 10-2
-
60399B64512-1 PROPELLER ASSY (6")
Sail Pro STD 3 x 200 x 152PROPELLER ASSY (6")
Sail Pro STD 3 x 200 x 152 -
603R1B64514-2 PROPELLER ASSY (7)
4ps STD 3 x 198 x 178PROPELLER ASSY (7)
4ps STD 3 x 198 x 178 -
603R1B64516-2 PROPELLER ASSY (8)
5/6ps STD 3 x 198 x 203PROPELLER ASSY (8)
5/6ps STD 3 x 198 x 203 -
60369B64518-1 PROPELLER ASSY (9")
OPT 3 x 200 x 229PROPELLER ASSY (9")
OPT 3 x 200 x 229 -
60393B64512-1 PROPELLER ASSY (6")
OPT 3 x 200 x 152PROPELLER ASSY (6")
OPT 3 x 200 x 152 -
613H6-87326-0 PROPELLER HARDWARE KITPROPELLER HARDWARE KIT
-
623AS-64230-0 * THRUST HOLDER ASSY* THRUST HOLDER ASSY
-
63369-64124-0 * WASHER 10.5-28-2* WASHER 10.5-28-2
-
64369-64121-0 * PROPELLER NUT* PROPELLER NUT
-
65951503-0318 * SPLIT PIN 3-18* SPLIT PIN 3-18
