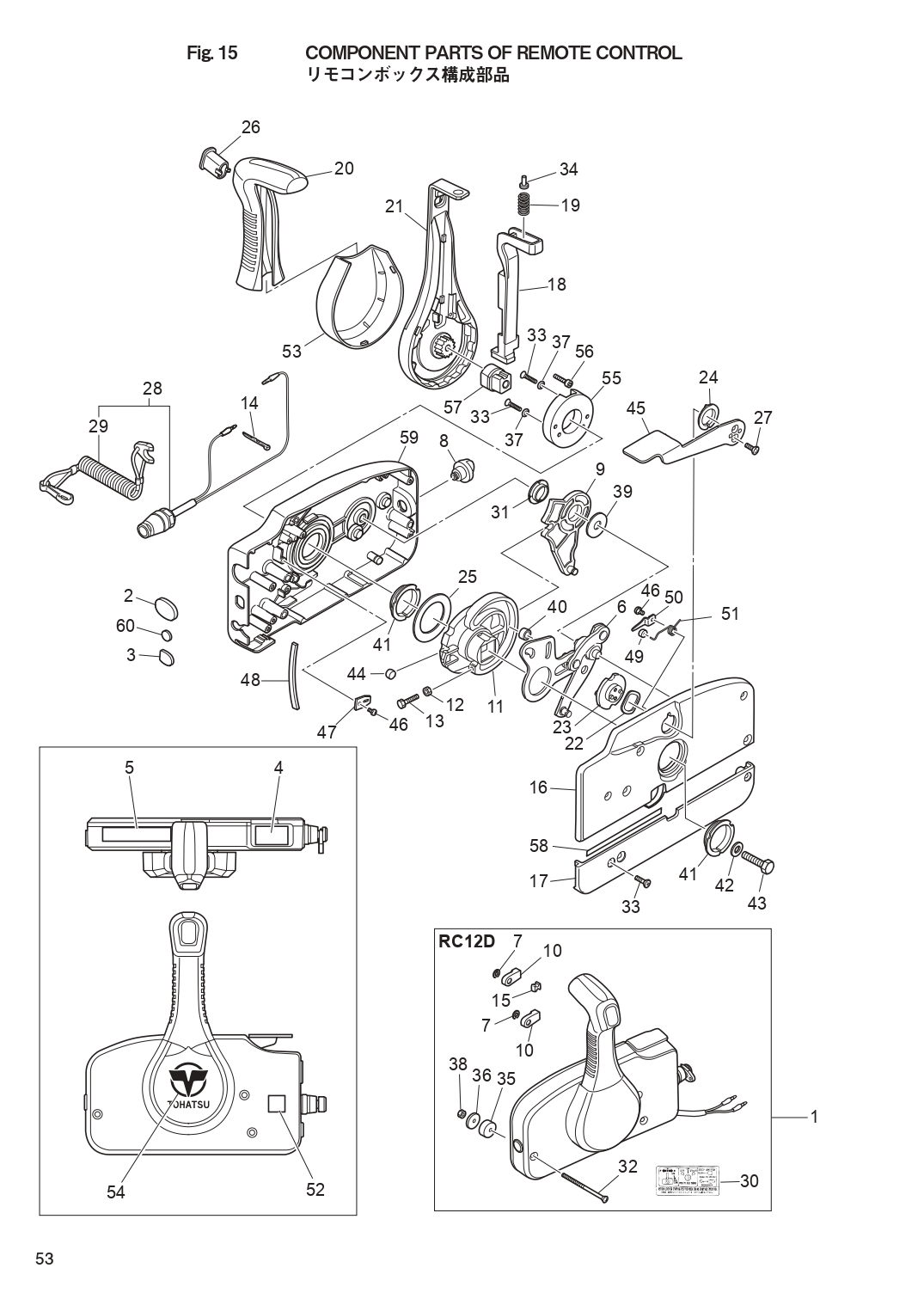

COMPONENT PARTS OF REMOTE CONTROL для Tohatsu MFS6C - 2018 года выпуска`
-
№АртикулНазвание
-
13U2B84360-0 REMOTE CONTROL HEAD ASSY(RC12D)REMOTE CONTROL HEAD ASSY(RC12D)
-
23U2-84416-0 * GROMMET* GROMMET
-
3353-84321-0 * GROMMET* GROMMET
-
43U2-84331-0 * DECAL (LEVER)* DECAL (LEVER)
-
53U2-84336-0 * SHIFT POSITION DECAL* SHIFT POSITION DECAL
-
63A3-84365-1 * THROTTLE ARM* THROTTLE ARM
-
7945303-0600 * E-RING d=6* E-RING d=6
-
83U2-84414-0 * GROMMET* GROMMET
-
93A3-84381-0 * SHIFT GEAR ASSY* SHIFT GEAR ASSY
-
103A3-83314-2 * CABLE TERMINAL* CABLE TERMINAL
-
113A3-84364-2 * DRIVE GEAR* DRIVE GEAR
-
12930103-0500 * NUT* NUT
-
13910103-0525 * BOLT* BOLT
-
143U2-84398-0 * BAND* BAND
-
153A3-84376-0 * GROMMET* GROMMET
-
163U2B84441-0 * REAR HOUSING* REAR HOUSING
-
173U2B84366-0 * REAR PANEL* REAR PANEL
-
183U2-84401-0 * NEUTRAL LOCK ARM* NEUTRAL LOCK ARM
-
193A3-84403-0 * NEUTRAL LOCK SPRING* NEUTRAL LOCK SPRING
-
203U2-84404-0 * GRIP* GRIP
-
213U2-84343-0 * CONTROL LEVER* CONTROL LEVER
-
223A3-84368-0 * WAVE WASHER* WAVE WASHER
-
233A3-84391-0 * FREE THROTTLE DRUM* FREE THROTTLE DRUM
-
243A3-84435-0 * BUSHING* BUSHING
-
253A3-84422-0 * THRUST PLATE* THRUST PLATE
-
263U2-84452-0 * TILT SWITCH PLUG* TILT SWITCH PLUG
-
27921603-0512 * SCREW* SCREW
-
283A3-06830-0 * STOP SWITCH ASSY* STOP SWITCH ASSY
-
29353-06821-0 ** STOP SWITCH LANYARD ASSY** STOP SWITCH LANYARD ASSY
-
303U2-84339-0 * INSTRUCTION DECAL* INSTRUCTION DECAL
-
313A3-84432-0 * BUSHING* BUSHING
-
323U2-84375-0 * SCREW* SCREW
-
333VK-84375-0 * SCREW* SCREW
-
343VL-84375-0 * SCREW* SCREW
-
353A3-84374-0 * SPACER* SPACER
-
36353-84371-0 * WASHER* WASHER
-
373U2-84371-0 * WASHER* WASHER
-
38930103-0600 * NUT* NUT
-
393A3-84383-0 * WASHER* WASHER
-
403A3-84421-0 * ROLLER* ROLLER
-
413U2-84431-0 * BUSHING* BUSHING
-
42940103-0800 * WASHER* WASHER
-
433U2-84442-0 * BOLT* BOLT
-
44353-84388-0 * DETENT ROLLER* DETENT ROLLER
-
453U2B84312-0 * FREE THROTTLE LEVER* FREE THROTTLE LEVER
-
46921503-0406 * SCREW* SCREW
-
473A3-84423-0 * DETENT RETAINER* DETENT RETAINER
-
483A3-84307-0 * DETENT SPRING* DETENT SPRING
-
493A3-84424-0 * FREE THROTTLE ROLLER* FREE THROTTLE ROLLER
-
503A3-84426-0 * ROLLER RETAINER* ROLLER RETAINER
-
513A3-84425-0 * FREE THROTTLE SPRING* FREE THROTTLE SPRING
-
523U2-72200-0 * STOP SWITCH DECAL* STOP SWITCH DECAL
-
533VK-63107-0 * COVER* COVER
-
543U2-84334-0 * REMOTE CONTROL LOGO DECAL* REMOTE CONTROL LOGO DECAL
-
553U2-63506-0 * HOLDER* HOLDER
-
563U2-84917-0 * BOLT* BOLT
-
573U2-77367-0 * JOINT* JOINT
-
583U2-72187-0 * CAUTION DECAL(SIGP)* CAUTION DECAL(SIGP)
-
593U2B84440-0 * FRONT HOUSING* FRONT HOUSING
-
60369-84418-0 * GROMMET* GROMMET
