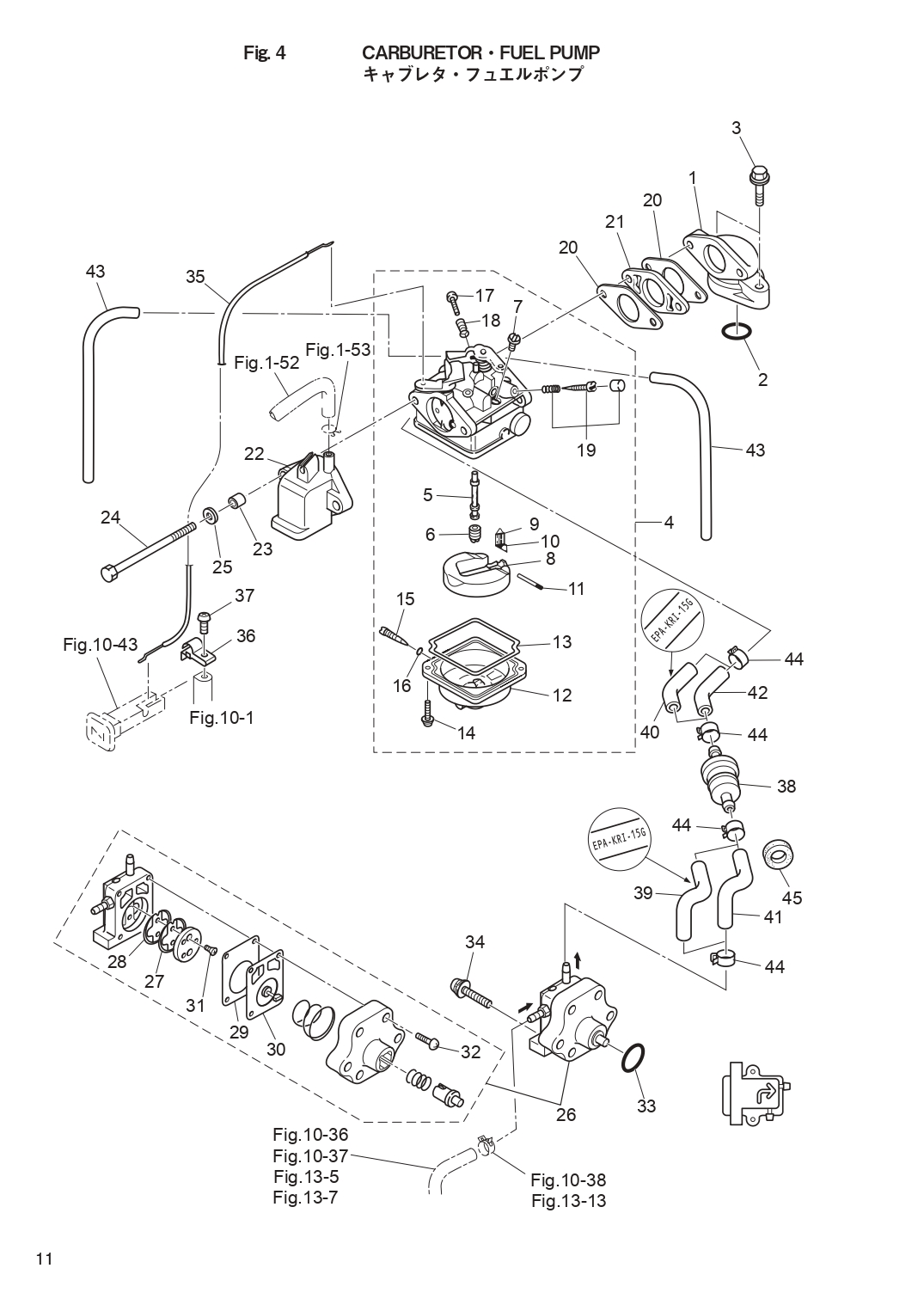

CARBURETOR FUEL PUMP для Tohatsu MFS6C - 2018 года выпуска`
-
№АртикулНазвание
-
13H6B02010-0 INTAKE MANIFOLD ASSYINTAKE MANIFOLD ASSY
-
23H6-02104-0 INTAKE MANIFOLD GASKET 2-33.5
O-RingINTAKE MANIFOLD GASKET 2-33.5
O-Ring -
3910124-5625 BOLTBOLT
-
43JE-03200-0 CARBURETOR ASSYCARBURETOR ASSY
-
53JE-03252-0 * MAIN NOZZLE* MAIN NOZZLE
-
63GR-04470-0 * MAIN JET (#70)* MAIN JET (#70)
-
73R1-03254-0 * SLOW JET (#38)* SLOW JET (#38)
-
83H6-03231-0 * FLOAT* FLOAT
-
93H6-03240-0 * FLOAT VALVE* FLOAT VALVE
-
103H6-03244-0 * CLIP* CLIP
-
113H6-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
123H6-03221-0 * FLOAT CHAMBER* FLOAT CHAMBER
-
133H6-03222-0 * FLOAT CHAMBER O-RING* FLOAT CHAMBER O-RING
-
14922503-6412 * SCREW* SCREW
-
153H6-03292-0 * DRAIN SCREW* DRAIN SCREW
-
163H6-03293-0 * O-RING* O-RING
-
173H6-03265-0 * STOP SCREW* STOP SCREW
-
183H6-03267-0 * SPRING* SPRING
-
193AS-03266-0 * PILOT SCREW
5/6ps* PILOT SCREW
5/6ps -
203H6-02011-0 CARBURETOR GASKETCARBURETOR GASKET
-
213H6-03952-1 INSULATORINSULATOR
-
223GR-02409-0 INTAKE SILENCER ASSYINTAKE SILENCER ASSY
-
233A0-76079-0 COLLAR 6.2-9-7.4COLLAR 6.2-9-7.4
-
249164F1-0685 BOLTBOLT
-
25940103-0600 WASHERWASHER
-
263H6-04000-7 FUEL PUMP ASSYFUEL PUMP ASSY
-
273H6-04044-0 * CHECK VALVE
Black* CHECK VALVE
Black -
283H6-04014-1 * CHECK VALVE
White* CHECK VALVE
White -
293H6-04028-0 * PUMP BODY GASKET* PUMP BODY GASKET
-
303H6-04005-0 * PUMP DIAPHRAGM* PUMP DIAPHRAGM
-
31921603-0308 * SCREW* SCREW
-
32922503-6418 * SCREW* SCREW
-
333H6-07422-0 O-RING 2.6-18.7O-RING 2.6-18.7
-
34921503-7630 SCREWSCREW
-
353GR-67197-0 CHOKE WIRE
Carburetor-Choke RodCHOKE WIRE
Carburetor-Choke Rod -
363JD-63505-0 CABLE HOLDERCABLE HOLDER
-
37921503-0510 SCREWSCREW
-
38369-02230-0 FUEL FILTER ASSYFUEL FILTER ASSY
-
393GS-02207-0 LOW PERMEATION HOSE 24-29-24
Low Permeation Parts USA EPA-KRI-15GLOW PERMEATION HOSE 24-29-24
Low Permeation Parts USA EPA-KRI-15G -
403JJ-02130-0 LOW PERMEATION HOSE L=60
Low Permeation Parts USA EPA-KRI-15GLOW PERMEATION HOSE L=60
Low Permeation Parts USA EPA-KRI-15G -
413GR-02204-0 FUEL HOSE 24-29-24
Fuel Pump-Fuel Filter STDFUEL HOSE 24-29-24
Fuel Pump-Fuel Filter STD -
423JJ-02204-0 FUEL HOSE L=60
Fule Filter-Carburetor STDFUEL HOSE L=60
Fule Filter-Carburetor STD -
4398AB-30-270 HOSE
98AB-301000HOSE
98AB-301000 -
443GT-35143-0 CLIP φ9.4CLIP φ9.4
-
453B7-06305-0 RUBBER MOUNT 9-16-4.3RUBBER MOUNT 9-16-4.3
