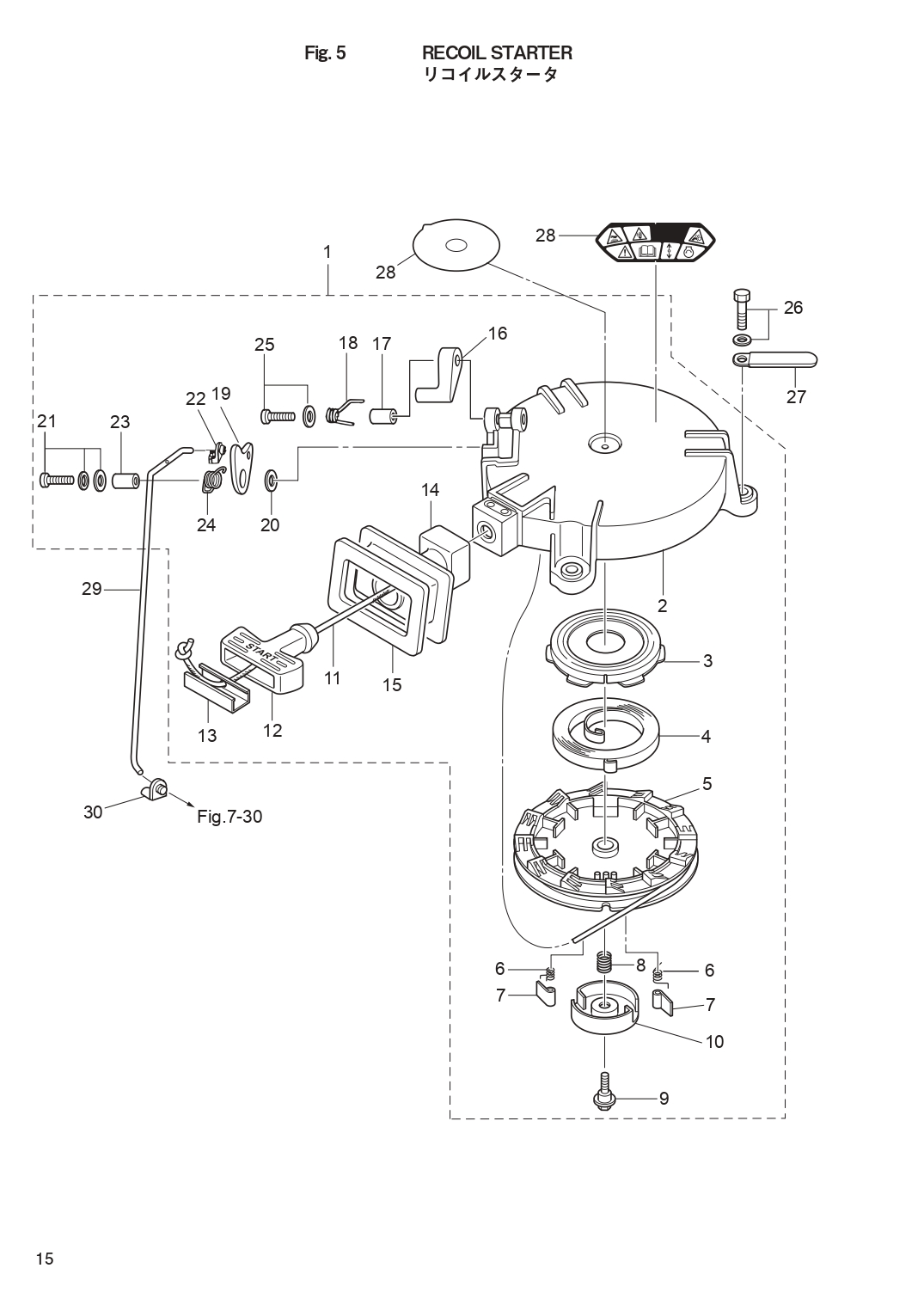

RECOIL STARTER для Tohatsu MFS4C - 2018 года выпуска`
-
№АртикулНазвание
-
13GR-05090-1 RECOIL STARTER ASSYRECOIL STARTER ASSY
-
23R1-05105-0 * STARTER CASE* STARTER CASE
-
33R1-05125-0 * STARTER SPRING CASE* STARTER SPRING CASE
-
43R1-05004-0 * STARTER SPRING* STARTER SPRING
-
53R1-05104-0 * REEL* REEL
-
63R1-05012-0 * RETURN SPRING* RETURN SPRING
-
73R1-05003-2 * RATCHET* RATCHET
-
83R1-05007-0 * FRICTION SPRING* FRICTION SPRING
-
93R1-05138-1 * BOLT 5-10-6.8-7.8* BOLT 5-10-6.8-7.8
-
103R1-05006-2 * FRICTION PLATE* FRICTION PLATE
-
113R1-05013-0 * STARTER ROPE φ4.5-1620* STARTER ROPE φ4.5-1620
-
123R1-05019-0 * STARTER HANDLE* STARTER HANDLE
-
133R1-05131-1 * ROPE ANCHOR* ROPE ANCHOR
-
143GR-05116-0 * SEALING PLATE* SEALING PLATE
-
153GR-67503-0 * STARTER SEAL* STARTER SEAL
-
163GR-05252-0 * STARTER LOCK* STARTER LOCK
-
173R1-05255-0 * COLLAR 4-6-21* COLLAR 4-6-21
-
183R1-05216-0 * STARTER LOCK SPRING* STARTER LOCK SPRING
-
193GR-05253-0 * STARTER LOCK CAM* STARTER LOCK CAM
-
20940103-0600 * WASHER* WASHER
-
21921503-7616 * SCREW* SCREW
-
223R1-05223-0 * ROD SNAP 3.5-2* ROD SNAP 3.5-2
-
233R1-05215-0 * COLLAR 6.1-8-6.5* COLLAR 6.1-8-6.5
-
243R1-05258-0 * STARTER LOCK CAM SPRING* STARTER LOCK CAM SPRING
-
25921503-5430 * SCREW* SCREW
-
263AD-06864-0 PRE-COATED BOLT 6-25PRE-COATED BOLT 6-25
-
273PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
283PA-72181-1 CAUTION DECAL (B)
for EU ModelCAUTION DECAL (B)
for EU Model -
283NV-72181-0 CAUTION DECAL (B)CAUTION DECAL (B)
-
293GR-05217-1 STARTER LOCK RODSTARTER LOCK ROD
-
30345-05223-1 ROD SNAP 3.5-2ROD SNAP 3.5-2
