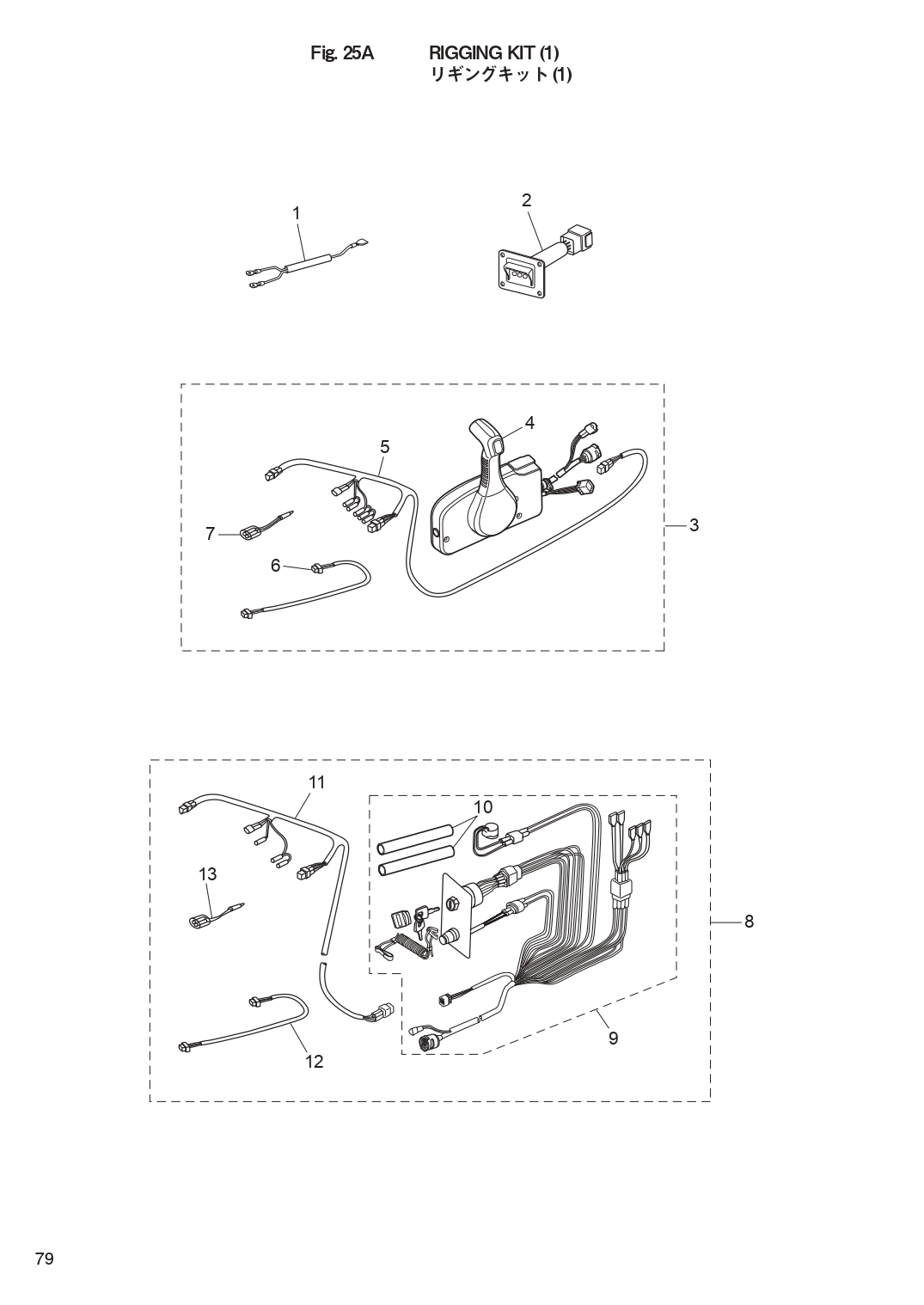

RIGGING KIT (1) для Tohatsu MFS40A - 2018 года выпуска`
-
№АртикулНазвание
-
13Y9-76049-0 LEAD WIRE L=200LEAD WIRE L=200
-
23Y9-76251-0 LAMP PANEL ASSYLAMP PANEL ASSY
-
33GLQ84550-3 PRE-RIGGING KIT
with Remorte Control without MeterPRE-RIGGING KIT
with Remorte Control without Meter -
43U2B84500-0 * REMOTE CONTROL HEAD ASSY(RC12F)* REMOTE CONTROL HEAD ASSY(RC12F)
-
53T5-72537-1 * METER LEAD WIRE L=8000* METER LEAD WIRE L=8000
-
63T1-72573-0 * EXTENSION CORD (TRIM SENSOR) L=6000* EXTENSION CORD (TRIM SENSOR) L=6000
-
7353-72548-0 * ASSIST CORD (BLK) L=200* ASSIST CORD (BLK) L=200
-
83GM-84550-2 PRE-RIGGING KIT
without Remorte Control & MeterPRE-RIGGING KIT
without Remorte Control & Meter -
93GF-84560-1 * RIGGING CORD KIT* RIGGING CORD KIT
-
103HK-76109-0 ** HEAT SHRINK TUBING** HEAT SHRINK TUBING
-
113T5-72537-1 * METER LEAD WIRE L=8000* METER LEAD WIRE L=8000
-
123T1-72573-0 * EXTENSION CORD (TRIM SENSOR) L=6000* EXTENSION CORD (TRIM SENSOR) L=6000
-
13353-72548-0 * ASSIST CORD (BLK) L=200* ASSIST CORD (BLK) L=200
Все узлы модели:
- BOTTOM COWL
- SHIFT THROTTLE
- STEERING
- TOP COWL
- FUEL TANK
- MULTI TILLER HANDLE
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- OPTIONAL PARTS ACCESSORIES
- OPTIONAL PARTS (1)
- OPTIONAL PARTS (2)
- • RIGGING KIT (1)
- RIGGING KIT (2)
- ASSEMBY KIT PARTS
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- CYLINDER HEAD OIL PUMP
- PULLEY TIMING BELT
- INTAKE MAINFOLD
- FUEL SYSTEM
- MAGNETO
- ELECTRIC PARTS (STARTER MOTOR)
- ELECTRIC PARTS
- DRIVE SHAFT HOUSING
- GEAR CASE (DRIVE SHAFT)
- GEAR CASE (PROPELLER SHAFT)
- BRACKET
- POWER TRIM AND TILT
