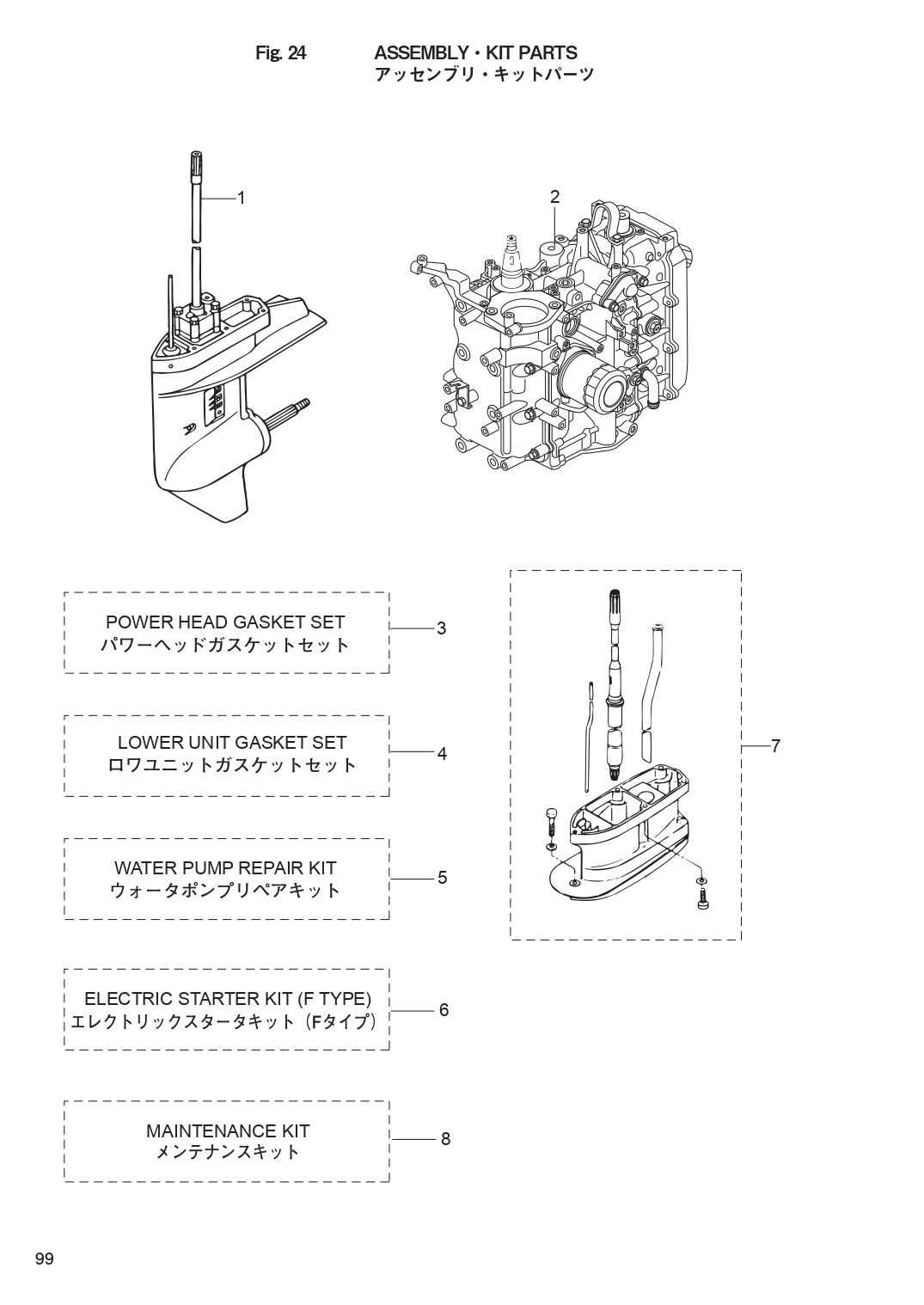

ASSEMBLY KIT PARTS для Tohatsu MFS30C - 2018 года выпуска`
-
№АртикулНазвание
-
13NVQ87301-1 LOWER UNIT ASSY (S)
for Transom "S"LOWER UNIT ASSY (S)
for Transom "S" -
13NVQ87302-1 LOWER UNIT ASSY (L)
for Transom "L"LOWER UNIT ASSY (L)
for Transom "L" -
13NVQ87304-1 LOWER UNIT ASSY (UL)
for Transom "UL"LOWER UNIT ASSY (UL)
for Transom "UL" -
23NVB87090-3 ENGINE SHORT BLOCK KIT
30psENGINE SHORT BLOCK KIT
30ps -
33AC-87121-1 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
33R0-01024-0 * CYLINDER HEAD COVER GASKET* CYLINDER HEAD COVER GASKET
-
33R0-07422-0 * O-RING 3.1-24.4
Oil Filler Cap* O-RING 3.1-24.4
Oil Filler Cap -
33H8-07025-0 * OIL SEAL 18-35-8
Camshaft* OIL SEAL 18-35-8
Camshaft -
33AD-01005-1 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
3346-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
33R3-01144-0 * GASKET* GASKET
-
33R0-00122-0 * OIL SEAL 38-50-8
Upper* OIL SEAL 38-50-8
Upper -
33R0-00121-0 * OIL SEAL 35-50-8
Lower* OIL SEAL 35-50-8
Lower -
33AC-02012-0 * O-RING 1.9-31.2
Insulator* O-RING 1.9-31.2
Insulator -
33AC-10104-0 * GASKET
Throttle Body* GASKET
Throttle Body -
33R0-07639-0 * O-RING φ1.9* O-RING φ1.9
-
33R0-01303-0 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
3346-01215-0 * OIL SEAL 16-28-6
Drive Shaft* OIL SEAL 16-28-6
Drive Shaft -
33R0-61012-0 * DRIVE SHAFT HOUSING GASKET* DRIVE SHAFT HOUSING GASKET
-
43R0-87321-1 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
4332-60006-0 * GASKET 8.1-15-1
Oil Plug* GASKET 8.1-15-1
Oil Plug -
4332-60103-0 * O-RING 3-62.5
Propeller Shaft Housing* O-RING 3-62.5
Propeller Shaft Housing -
4346-65013-0 * OIL SEAL 17-30-9
Pump Case (Lower)* OIL SEAL 17-30-9
Pump Case (Lower) -
43AC-60111-0 * OIL SEAL 18-28-8
Propeller Shaft* OIL SEAL 18-28-8
Propeller Shaft -
4336-62415-0 * O-RING 3.5-36
Pump Case (Lower)* O-RING 3.5-36
Pump Case (Lower) -
4332-66021-0 * O-RING 2.4-5.8
Cam Rod* O-RING 2.4-5.8
Cam Rod -
43C8-66032-0 * O-RING 3.5-21.7
Cam Rod Bushing* O-RING 3.5-21.7
Cam Rod Bushing -
43R0-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
4348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
53NV-87322-0 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
53NV-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
5332-65022-0 * KEY 20-4.6-2* KEY 20-4.6-2
-
53R0-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
53AC-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
53R0-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
5348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
63NV-76300-2 ELECTRIC STARTER KIT (F)
for MF ⇒ EF TypeELECTRIC STARTER KIT (F)
for MF ⇒ EF Type -
63RS-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
6910103-5830 * BOLT* BOLT
-
63R0-76009-0 * STARTER MOTOR BAND* STARTER MOTOR BAND
-
63C8-76007-0 * DAMPER* DAMPER
-
6910103-5820 * BOLT* BOLT
-
63H8-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
63AA-76026-0 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
63NV-76080-0 * NEUTRAL SWITCH* NEUTRAL SWITCH
-
6398-76083-0 * NEUTRAL SWITCH ACTUATOR* NEUTRAL SWITCH ACTUATOR
-
63AC-76120-0 * BATTERY CABLE L=2500* BATTERY CABLE L=2500
-
63AA-76145-0 * TERMINAL CAP 13-13-28* TERMINAL CAP 13-13-28
-
63R3-76141-0 * STARTER CABLE L=270* STARTER CABLE L=270
-
63Y1-76145-0 * TERMINAL CAP 8-13-28* TERMINAL CAP 8-13-28
-
63Y0-76145-0 * TERMINAL CAP 8-18-28* TERMINAL CAP 8-18-28
-
63AC-76065-2 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
63AC-76066-0 * FUSE WIRE ASSY* FUSE WIRE ASSY
-
63NV-76081-0 * NEUTRAL SWITCH BRACKET* NEUTRAL SWITCH BRACKET
-
69101E3-5616 * BOLT* BOLT
-
73NVQ87314-0 EXTENSION HOUSING KIT (UL)
for Transom "L" ⇒ "UL"EXTENSION HOUSING KIT (UL)
for Transom "L" ⇒ "UL" -
7346Q61110-5 * EXTENSION HOUSING* EXTENSION HOUSING
-
79161E3-0835 * BOLT* BOLT
-
79161E3-0845 * BOLT* BOLT
-
73P0-66233-0 * WASHER 8.1-16-1.5* WASHER 8.1-16-1.5
-
7346-64303-5 * DRIVE SHAFT (UL)* DRIVE SHAFT (UL)
-
73R0-65120-0 * WATER PIPE (UL)* WATER PIPE (UL)
-
73NV-66014-0 * CAM ROD (UL)* CAM ROD (UL)
-
7951407-0312 * SPRING PIN 3-12* SPRING PIN 3-12
-
7346-66037-0 * CAM ROD HOLDER* CAM ROD HOLDER
-
83NV-87500-1 MAINTENANCE KITMAINTENANCE KIT
-
8332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
8332-65022-0 * KEY 20-4.6-2* KEY 20-4.6-2
-
83NV-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
8348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
83BJ-07615-0 * OIL FILTER* OIL FILTER
-
83C8-60217-1 * TRIM TAB* TRIM TAB
-
83P0-60218-0 * ANODE* ANODE
-
83R0-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
83R0-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
83AC-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
83R3-07406-0 * WASHER 14.5-24-1* WASHER 14.5-24-1
-
8951403-0312 * SPRING PIN 3-12* SPRING PIN 3-12
-
8951503-0322 * SPLIT PIN 3-22* SPLIT PIN 3-22
-
89701-1-1103 * SPARK PLUG(DCPR6E)* SPARK PLUG(DCPR6E)
