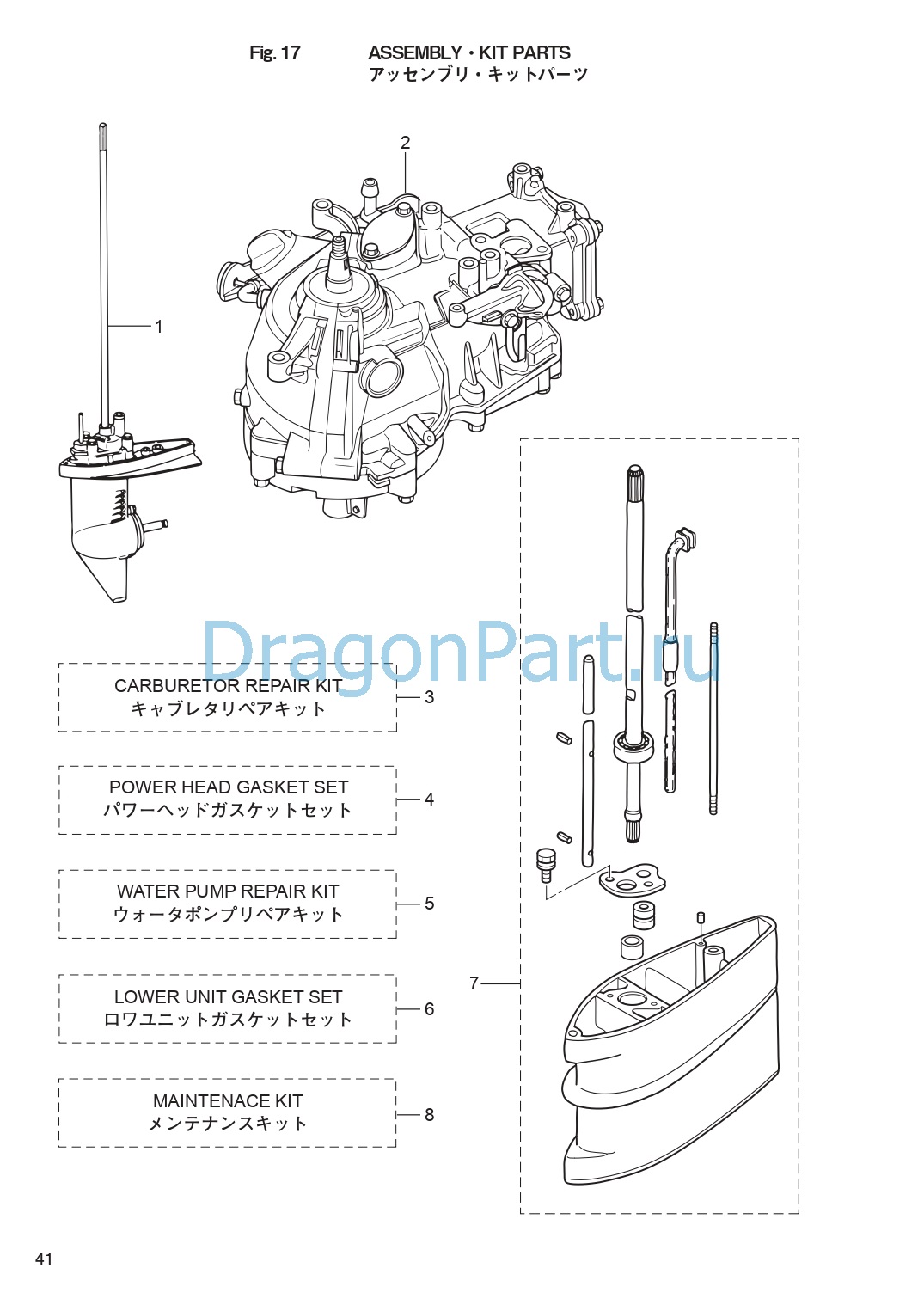

ASSEMBLY KIT PARTS для Tohatsu MFS2B - 2018 года выпуска`
-
№АртикулНазвание
-
13BMQ87301-3 LOWER UNIT ASSY (S)
for Transom "S"LOWER UNIT ASSY (S)
for Transom "S" -
13BMQ87302-3 LOWER UNIT ASSY (L)
for Transom "L"LOWER UNIT ASSY (L)
for Transom "L" -
23GTB87090-5 ENGINE SHORT BLOCK KITENGINE SHORT BLOCK KIT
-
33GT-87122-1 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
33GT-03231-0 * FLOAT* FLOAT
-
33H6-03240-0 * FLOAT VALVE* FLOAT VALVE
-
33H6-03244-0 * CLIP* CLIP
-
33H6-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
33H6-03222-0 * FLOAT CHAMBER O-RING* FLOAT CHAMBER O-RING
-
3922503-6412 * SCREW* SCREW
-
33H6-03293-0 * O-RING* O-RING
-
33H6-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
43AB-87121-0 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
43AB-01024-1 * CYLINDER HEAD COVER GASKET* CYLINDER HEAD COVER GASKET
-
43AB-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
43AB-07432-0 * GASKET* GASKET
-
43AB-00121-0 * OIL SEAL 20-35-7
Crankshaft* OIL SEAL 20-35-7
Crankshaft -
43H6-03293-0 * O-RING
Carburetor* O-RING
Carburetor -
43H6-02011-0 * CARBURETOR GASKET* CARBURETOR GASKET
-
43AB-02104-0 * INTAKE MANIFOLD GASKET* INTAKE MANIFOLD GASKET
-
43AB-07402-0 * OILPAN GASKET* OILPAN GASKET
-
43R0-07422-0 * O-RING 3.1-24.4
Oil Filler Cap* O-RING 3.1-24.4
Oil Filler Cap -
43AB-01215-0 * OIL SEAL 10.1-20-7
Driveshaft* OIL SEAL 10.1-20-7
Driveshaft -
43V1-02012-0 * O-RING 2.4-35.2
Crankcase Head* O-RING 2.4-35.2
Crankcase Head -
43AB-61012-0 * DRIVE SHAFT HOUSING GASKET* DRIVE SHAFT HOUSING GASKET
-
53AB-87322-0 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
5369-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
5369-65022-0 * KEY φ2-11* KEY φ2-11
-
53F0-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
53F0-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
53AB-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
53F0-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
63F0-87321-0 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
6332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
6369-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
6369-65022-0 * KEY φ2-11* KEY φ2-11
-
63F0-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
63F0-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
63F0-60223-0 * OIL SEAL 10-22-8
Pump Case Lower* OIL SEAL 10-22-8
Pump Case Lower -
63F0-65020-0 * PUMP CASE GASKET (LOWER)* PUMP CASE GASKET (LOWER)
-
6309-60111-0 * OIL SEAL 12-24-8
Propeller Shaft* OIL SEAL 12-24-8
Propeller Shaft -
6345-65015-0 * O-RING 3.2-47
Propeller Shaft Housing* O-RING 3.2-47
Propeller Shaft Housing -
6369-66021-1 * O-RING 2.5-4.9
Cam Rod* O-RING 2.5-4.9
Cam Rod -
6301-66023-0 * O-RING 2.4-9.5
Bushing* O-RING 2.4-9.5
Bushing -
73ABQ87312-3 EXTENSION HOUSING KIT (L)
for Transom"S"⇒"L"EXTENSION HOUSING KIT (L)
for Transom"S"⇒"L" -
73ABQ61100-0 * EXTENSION HOUSING* EXTENSION HOUSING
-
73AB-60003-0 * DRIVE SHAFT BUSHING* DRIVE SHAFT BUSHING
-
73AB-64332-0 * STOPPER* STOPPER
-
7172-36008-0 * GROMMET 13-2* GROMMET 13-2
-
79101E3-5612 * BOLT* BOLT
-
73F0-61101-1 * STUD 6-171* STUD 6-171
-
73GU-60001-0 * BOLT 6-30* BOLT 6-30
-
79301E3-0600 * NUT* NUT
-
79401E3-0600 * WASHER* WASHER
-
73F0-64302-0 * DRIVE SHAFT ASSY (L)* DRIVE SHAFT ASSY (L)
-
73F0-66013-0 * CAM ROD (L)* CAM ROD (L)
-
7951407-0308 * SPRING PIN 3-8* SPRING PIN 3-8
-
73AB-65192-0 * WATER PIPE ASSY (L)* WATER PIPE ASSY (L)
-
73AB-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
83GT-87500-0 MAINTENANCE KIT FOR MFS2/2.5/3.5BMAINTENANCE KIT FOR MFS2/2.5/3.5B
-
8309-64126-1 * SHEAR PIN 4-24* SHEAR PIN 4-24
-
8332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
8338-60218-2 * ANODE* ANODE
-
8369-65021-1 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
8369-65022-0 * KEY φ2-11* KEY φ2-11
-
83AB-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
83F0-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
83F0-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
83F0-65029-0 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
83H6-07406-0 * WASHER 10.2-19-1* WASHER 10.2-19-1
-
8951503-0435 * SPLIT PIN 4-35* SPLIT PIN 4-35
-
89701-1-1103 * SPARK PLUG(DCPR6E)* SPARK PLUG(DCPR6E)
