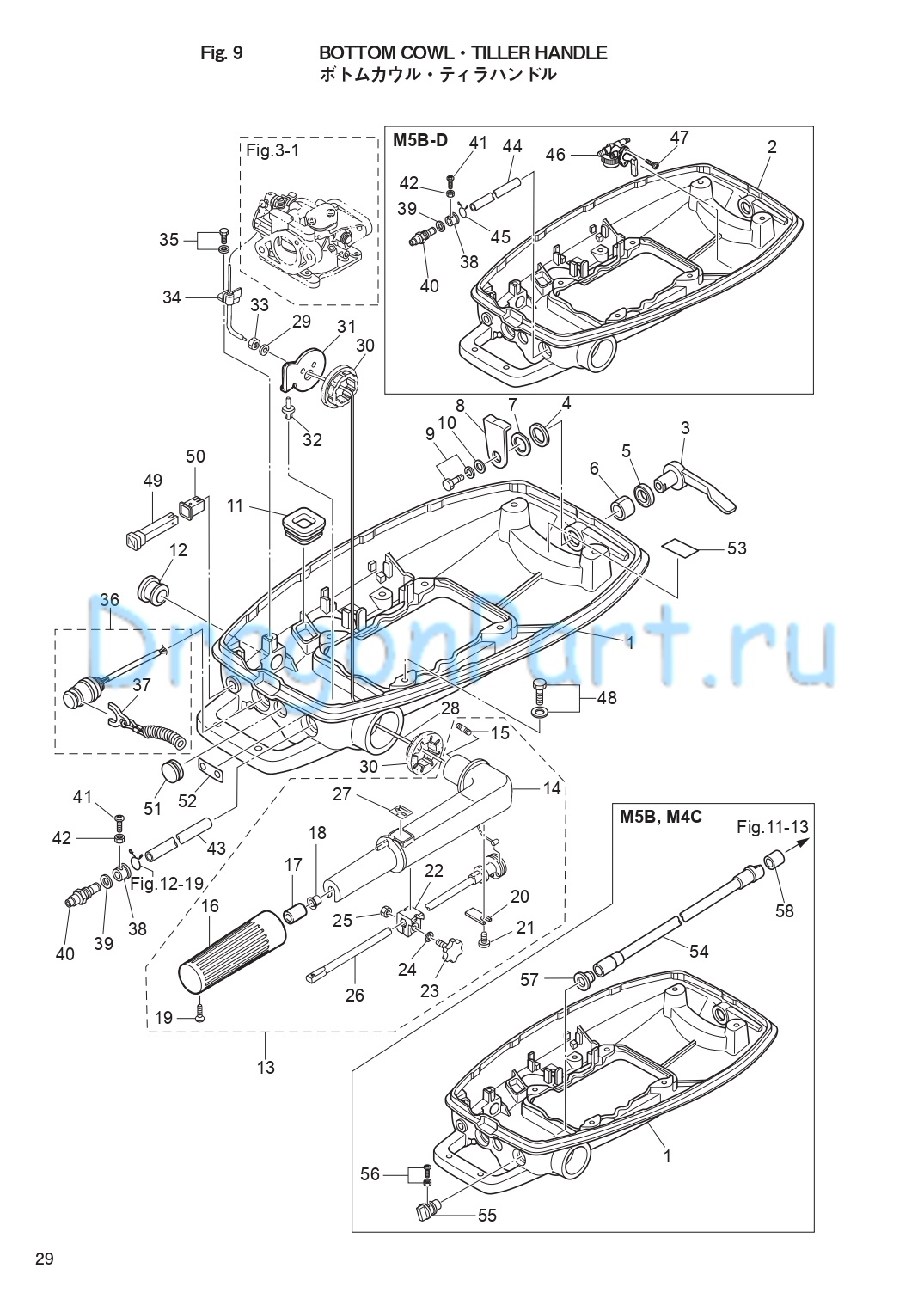

BOTTOM COWL TILLER HANDLE для Tohatsu M4C - 2018 года выпуска
-
№АртикулНазвание
-
1369Q67100-3 BOTTOM COWL
for M5B-S,M5B,M4C ModelBOTTOM COWL
for M5B-S,M5B,M4C Model -
3369Q67141-1 HOOK LEVERHOOK LEVER
-
43C8-67146-0 WASHER 14-22-1WASHER 14-22-1
-
5338-67147-0 SEAL RING 13.8-22-3.7SEAL RING 13.8-22-3.7
-
6369-67105-0 HOOK LEVER BUSHINGHOOK LEVER BUSHING
-
7941403-1400 WAVE WASHER d=14WAVE WASHER d=14
-
8369-67142-0 COVER HOOKCOVER HOOK
-
9910103-6612 BOLTBOLT
-
103C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
11369-67188-0 GROMMET 18-7GROMMET 18-7
-
12369-67187-0 GROMMET 16-15.5GROMMET 16-15.5
-
13369Q63010-1 TILLER HANDLE ASSYTILLER HANDLE ASSY
-
143B2Q63011-1 * TILLER HANDLE* TILLER HANDLE
-
153B2-63104-1 * STUD* STUD
-
16369-63012-1 * GRIP* GRIP
-
17345-63048-0 * THROTTLE SHAFT DAMPER* THROTTLE SHAFT DAMPER
-
18350-63046-0 * BUSHING 8.4-10-11* BUSHING 8.4-10-11
-
19920803-0518 * SCREW* SCREW
-
203B2-63063-0 * THROTTLE SHAFT SUPPORT* THROTTLE SHAFT SUPPORT
-
219215E3-0612 * SCREW* SCREW
-
223B2-63035-1 * FRICTION PIECE* FRICTION PIECE
-
233B2-63034-0 * ADJUSTING SCREW M6-16* ADJUSTING SCREW M6-16
-
24940103-0600 * WASHER* WASHER
-
25930103-0600 * NUT* NUT
-
263B2-63041-0 * THROTTLE SHAFT* THROTTLE SHAFT
-
27369-72019-1 * THROTTLE DECAL* THROTTLE DECAL
-
28369-63600-1 THROTTLE WIRETHROTTLE WIRE
-
29941303-0600 SPRING WASHERSPRING WASHER
-
30369-63102-0 BUSHINGBUSHING
-
31369-63103-2 STEERING HANDLE STOPPERSTEERING HANDLE STOPPER
-
32350-67154-0 PLASTIC RIVET 6.5PLASTIC RIVET 6.5
-
33930103-0600 NUTNUT
-
34369-63508-0 THROTTLE WIRE BRACKETTHROTTLE WIRE BRACKET
-
35910121-6612 BOLTBOLT
-
363D5-06870-0 STOP SWITCH ASSYSTOP SWITCH ASSY
-
37353-06821-0 * STOP SWITCH LANYARD ASSY* STOP SWITCH LANYARD ASSY
-
489101E3-5616 BOLTBOLT
-
49369-67151-2 CHOKE RODCHOKE ROD
-
50393-67104-0 CHOKE ROD BUSHINGCHOKE ROD BUSHING
-
51345-67117-0 GROMMET 17-2.7GROMMET 17-2.7
-
52369-72016-0 FUEL LEVEL DECAL
for M5B,M4C ModelFUEL LEVEL DECAL
for M5B,M4C Model -
53369-72026-0 SPARK PLUG DECAL (BPR7HS10)SPARK PLUG DECAL (BPR7HS10)
-
54369-70061-0 FUEL COCK ROD
Fuel Valve for M5B,M4C ModelFUEL COCK ROD
Fuel Valve for M5B,M4C Model -
55369-70062-0 FUEL COCK KNOB
Fuel Valve for M5B,M4C ModelFUEL COCK KNOB
Fuel Valve for M5B,M4C Model -
56921503-6410 SCREW
for M5B,M4C ModelSCREW
for M5B,M4C Model -
57369-70063-0 SEAL RING
for M5B,M4C ModelSEAL RING
for M5B,M4C Model -
58353-72544-1 FUEL COCK ROD HOSE
Fuel Valve for M5B,M4C ModelFUEL COCK ROD HOSE
Fuel Valve for M5B,M4C Model
