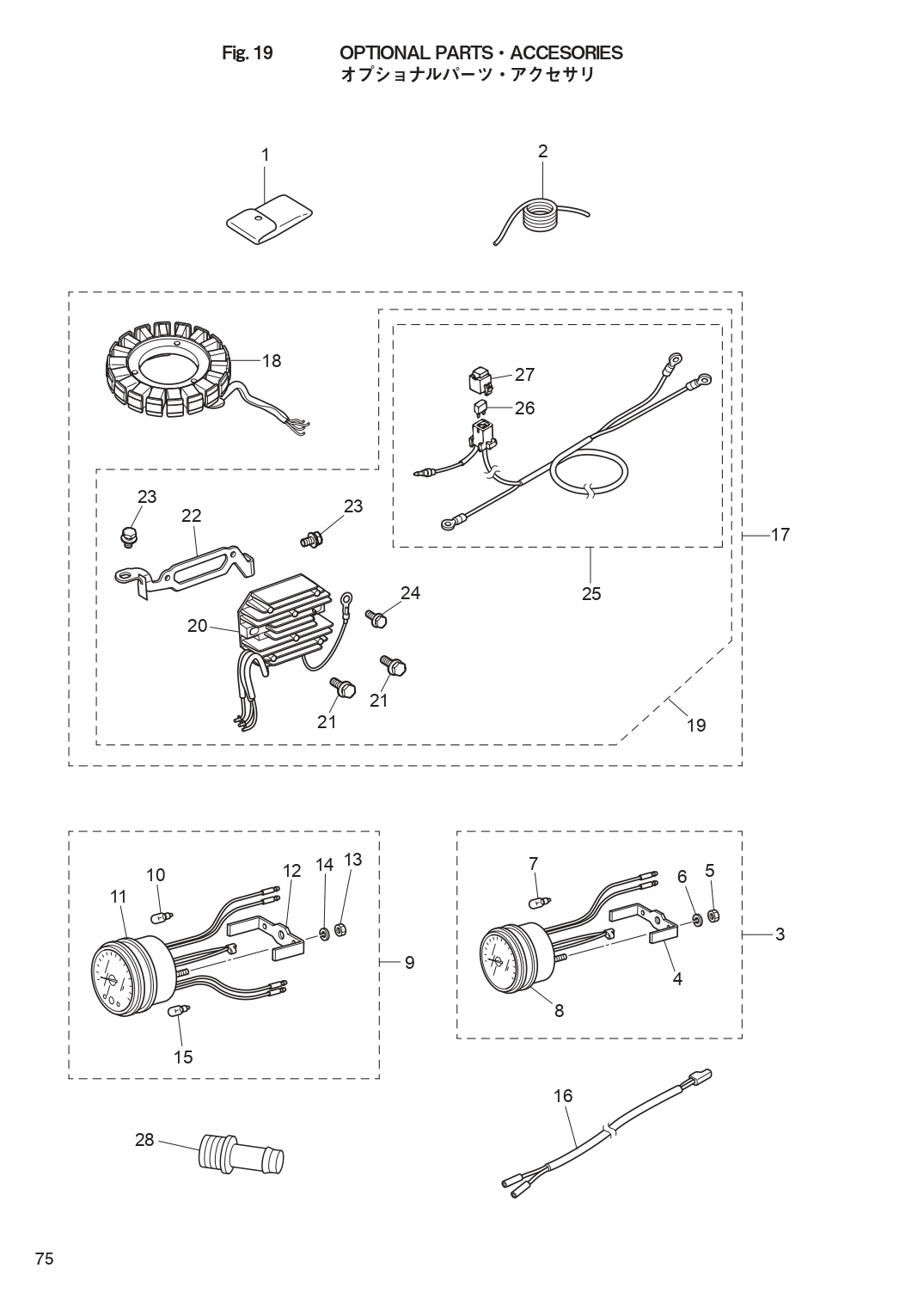

OPTIONAL PARTS ACCESSORIES для Tohatsu MFS9.9E - 2017 года выпуска`
-
№АртикулНазвание
-
13BJ-72100-0 TOOL KITTOOL KIT
-
23B7-72201-0 SAFETY ROPE φ5-1600SAFETY ROPE φ5-1600
-
33B7-72530-2 TACHOMETER ASSYTACHOMETER ASSY
-
43B7-72661-0 * FITTING PLATE* FITTING PLATE
-
5930103-0500 * NUT* NUT
-
6941303-0500 * SPRING WASHER* SPRING WASHER
-
73B7-72659-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
83B7-72656-0 * METER DAMPER* METER DAMPER
-
93N8-72640-1 TACHOMETER W/OIL LAMPTACHOMETER W/OIL LAMP
-
103B7-72659-0 * METER BULB 12V-1.7W* METER BULB 12V-1.7W
-
113B7-72656-0 * METER DAMPER* METER DAMPER
-
123B7-72661-0 * FITTING PLATE* FITTING PLATE
-
13930103-0500 * NUT* NUT
-
14941303-0500 * SPRING WASHER* SPRING WASHER
-
153B7-72658-0 * OIL BULB 12V-1.7W* OIL BULB 12V-1.7W
-
16361-72539-0 TACHOMETER LEAD WIRE L=6000TACHOMETER LEAD WIRE L=6000
-
173RS-06128-0 ALTERNATOR KITALTERNATOR KIT
-
183RT-06023-0 * ALTERNATOR ASSY* ALTERNATOR ASSY
-
193RS-76160-0 * RECTIFIER KIT* RECTIFIER KIT
-
203RS-76060-0 ** RECTIFIER COMPLETE** RECTIFIER COMPLETE
-
21910103-5620 ** BOLT** BOLT
-
223RS-76163-0 ** RECTIFIER BRACKET** RECTIFIER BRACKET
-
23910103-5612 ** BOLT** BOLT
-
24910103-5612 ** BOLT** BOLT
-
253BJ-76161-0 ** EXTENSION CORD L=3000** EXTENSION CORD L=3000
-
263T5-76247-0 *** FUSE 20A*** FUSE 20A
-
271E0-34093-0 *** CAP
Yellow*** CAP
Yellow -
283T1-72405-0 HOSE JOINT（WATER-WORKS)HOSE JOINT（WATER-WORKS)
