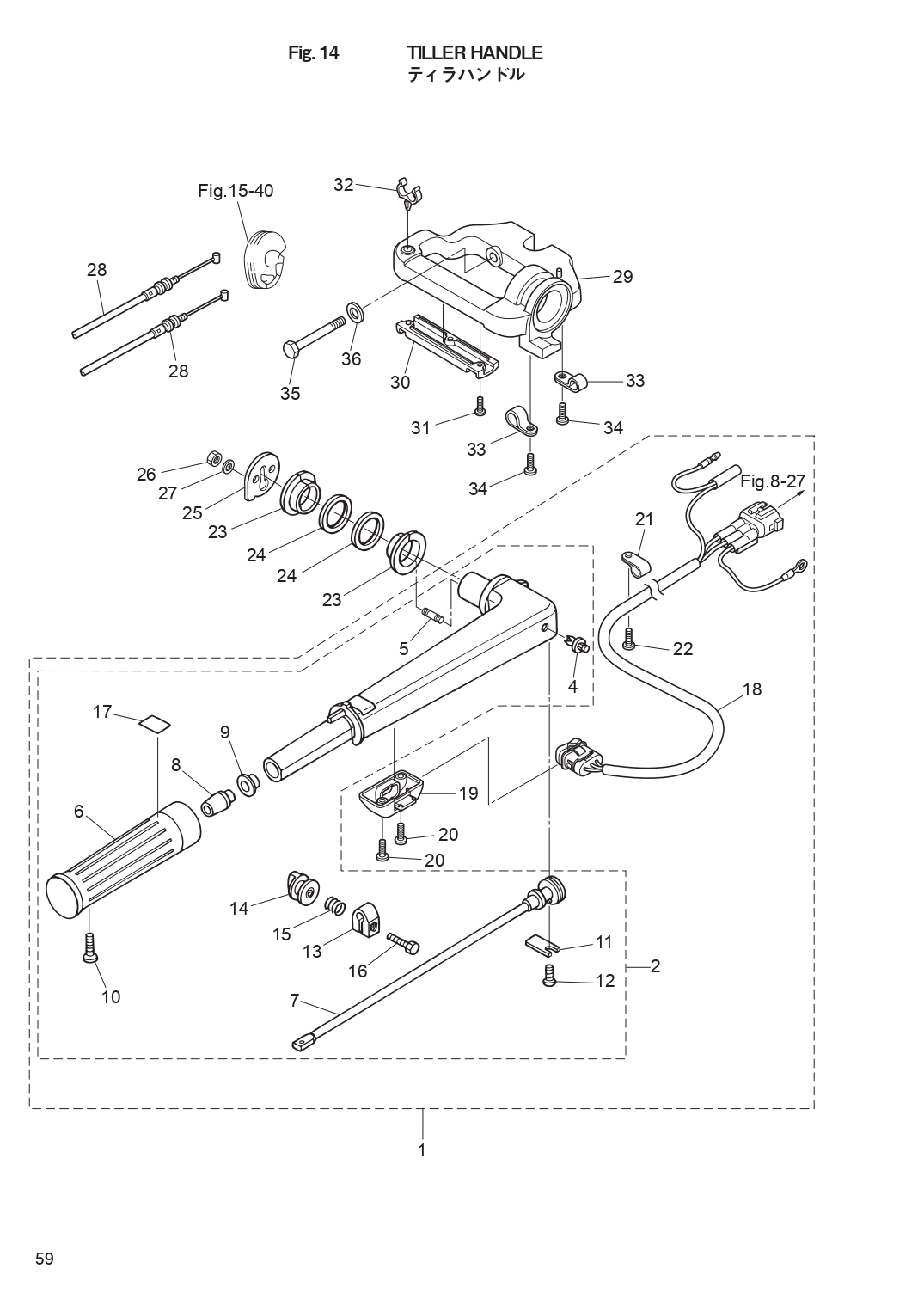

TILLER HANDLE для Tohatsu MFS9.9D - 2017 года выпуска`
-
№АртикулНазвание
-
23SBQ63003-0 * TILLER HANDLE ASSY* TILLER HANDLE ASSY
-
4350-67154-0 ** PLASTIC RIVET 6.5** PLASTIC RIVET 6.5
-
53B2-63104-1 ** STUD** STUD
-
63R3-63012-0 ** GRIP** GRIP
-
73V1-63041-0 ** THROTTLE SHAFT** THROTTLE SHAFT
-
83H6-63048-0 ** THROTTLE SHAFT DAMPER** THROTTLE SHAFT DAMPER
-
93H6-63510-0 ** BUSHING 14-15.8-7** BUSHING 14-15.8-7
-
10920803-0518 ** SCREW** SCREW
-
113B2-63063-0 ** THROTTLE SHAFT SUPPORT** THROTTLE SHAFT SUPPORT
-
129215E3-0612 ** SCREW** SCREW
-
133V1-63035-1 ** FRICTION PIECE** FRICTION PIECE
-
143V1-63077-0 ** ADJUSTING NUT** ADJUSTING NUT
-
153V1-63036-0 ** SPRING** SPRING
-
16910103-0625 ** BOLT** BOLT
-
173V9-72019-0 ** THROTTLE DECAL** THROTTLE DECAL
-
233V1-63102-0 BUSHINGBUSHING
-
243V1-63108-1 WASHER 39-52-1WASHER 39-52-1
-
253SA-63107-0 COVERCOVER
-
26930103-0600 NUTNUT
-
27940103-0600 WASHERWASHER
-
283V1-63600-0 THROTTLE WIRETHROTTLE WIRE
-
293V1Q62001-1 STEERING BRACKETSTEERING BRACKET
-
303V1-62004-0 CORD HOLDERCORD HOLDER
-
31921503-0408 SCREWSCREW
-
323V2-62004-0 CORD HOLDER
for EF TypeCORD HOLDER
for EF Type -
353R3-62094-2 BOLT 10-80BOLT 10-80
-
369401E3-1000 WASHERWASHER
