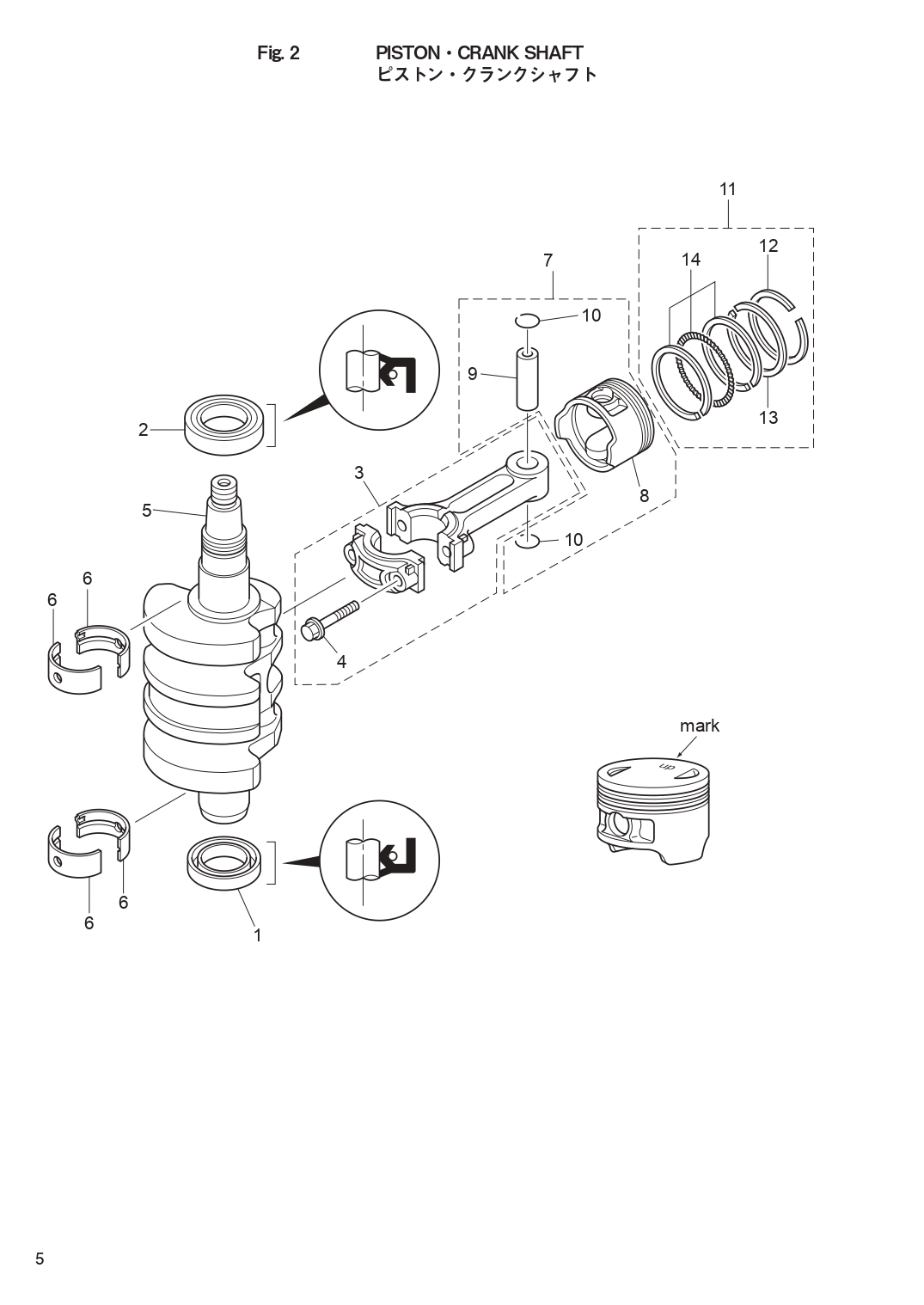

PISTON CRANK SHAFT для Tohatsu MFS9.9D - 2017 года выпуска`
-
№АртикулНазвание
-
13R3-00121-0 OIL SEAL 32-44-9
LowerOIL SEAL 32-44-9
Lower -
23BJ-00121-0 OIL SEAL 36-50-7
UpperOIL SEAL 36-50-7
Upper -
33R0-00040-1 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
43H6-00059-0 * CONNECTING ROD BOLT* CONNECTING ROD BOLT
-
53BJ-00030-0 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
63AE-07408-0 PLAIN SHAFT BEARING
Blue see Srevice ManualPLAIN SHAFT BEARING
Blue see Srevice Manual -
63AE-07407-0 PLAIN SHAFT BEARING
Red see Srevice ManualPLAIN SHAFT BEARING
Red see Srevice Manual -
73FS-87130-0 PISTON REPAIR KITPISTON REPAIR KIT
-
83AE-00001-1 * PISTON* PISTON
-
93AE-00021-0 * PISTON PIN* PISTON PIN
-
103H6-00024-0 * PISTON PIN CLIP* PISTON PIN CLIP
-
113FS-87123-0 PISTON RING SETPISTON RING SET
-
123AC-00011-0 * PISTON RING
1st* PISTON RING
1st -
133AC-00012-0 * PISTON RING
2nd* PISTON RING
2nd -
143AC-00013-0 * PISTON RING-OIL
Oil* PISTON RING-OIL
Oil
