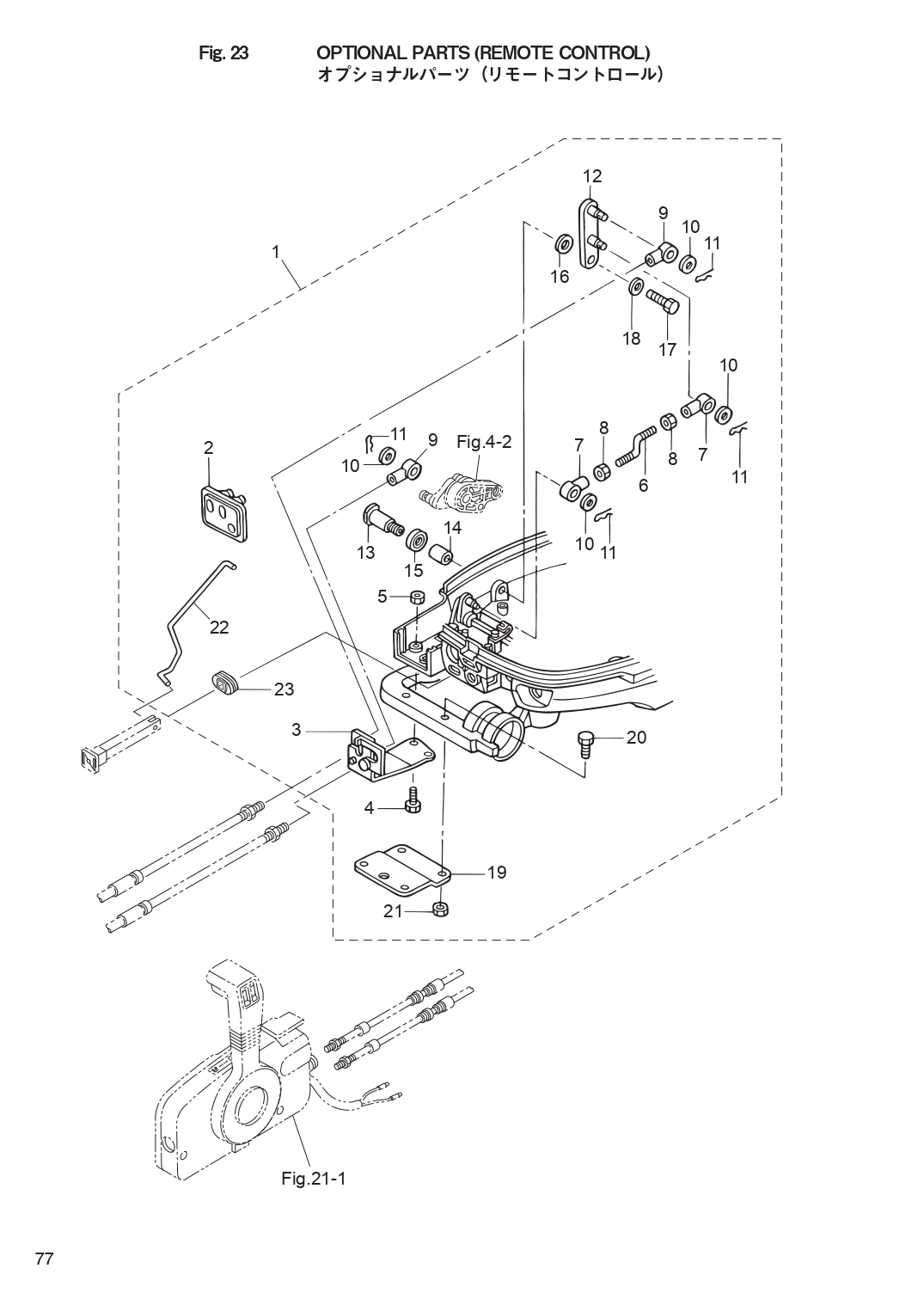

OPTIONAL PARTS (REMOTE CONTROL) для Tohatsu MFS9.8B - 2017 года выпуска`
-
№АртикулНазвание
-
13V2-83880-2 REMOTE CONTROL FITTING ASSY
for MF/EF/EFT TypeREMOTE CONTROL FITTING ASSY
for MF/EF/EFT Type -
23V1-83732-0 * GROMMET* GROMMET
-
33V1-83820-0 * CABLE CLIP ASSY* CABLE CLIP ASSY
-
49101E3-0616 * BOLT* BOLT
-
59301E3-0600 * NUT* NUT
-
63V1-66134-0 * SHIFT LEVER ROD* SHIFT LEVER ROD
-
73R0-83715-0 * CABLE JOINT 4.5-40.5* CABLE JOINT 4.5-40.5
-
8930103-0500 * NUT* NUT
-
93B7-83715-2 * CABLE JOINT* CABLE JOINT
-
103AA-83719-0 * WASHER 8.5-18-1.6* WASHER 8.5-18-1.6
-
11951603-0800 * SNAP PIN d=8* SNAP PIN d=8
-
123V2-66128-0 * SHIFT ARM (REMOTE CONTROL)
Mark 3V2* SHIFT ARM (REMOTE CONTROL)
Mark 3V2 -
133V1-66142-0 * PIVOT* PIVOT
-
14369-67105-0 * HOOK LEVER BUSHING* HOOK LEVER BUSHING
-
15338-67147-0 * SEAL RING 13.8-22-3.7* SEAL RING 13.8-22-3.7
-
16941403-1400 * WAVE WASHER d=14* WAVE WASHER d=14
-
179101E3-0612 * BOLT* BOLT
-
18346-67115-0 * WASHER 6.5-21-1* WASHER 6.5-21-1
-
19369-83830-2 * STEERING HOOK PLATE* STEERING HOOK PLATE
-
209101E3-5830 * BOLT* BOLT
-
219301E3-0800 * NUT* NUT
-
223V2-67192-0 * CHOKE ROD* CHOKE ROD
-
233V2-67193-0 * GROMMET* GROMMET
Все узлы модели:
- • OPTIONAL PARTS (REMOTE CONTROL)
- OPTIONAL PARTS (ACCESSORIES)
- ASSEMBLY KIT PARTS
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- CYLINDER HEAD OIL PUMP
- PULLEY TIMING BELT
- INTAKE MAINFOLD FUEL PUMP
- CARBURETOR
- RECOIL STARTER
- MAGNETO ELECTRIC PARTS
- DRIVE SHAFT HOUSING
- GEAR CASE
- BRACKET (MF EF MODEL)
- BRACKET (EP MODEL)
- BRACKET (EFT EPT MODEL)
- POWER TILT
- TILLER HANDLE
- BOTTOM COWL
- SHIFT
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
