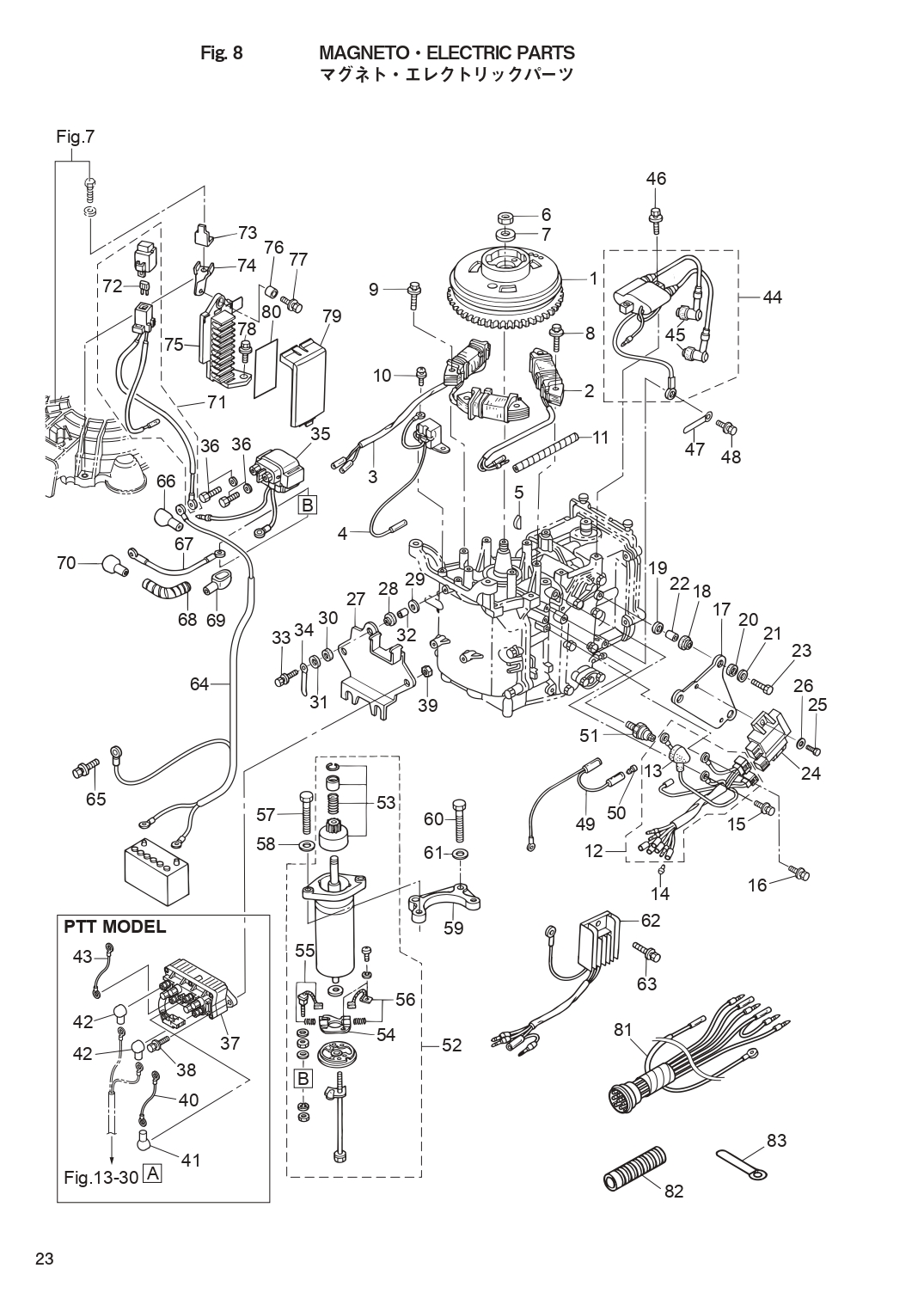

MAGNETO ELECTRIC PARTS для Tohatsu MFS9.8B - 2017 года выпуска`
-
№АртикулНазвание
-
13AA-06091-0 FLYWHEEL W/GEAR
FF-51FLYWHEEL W/GEAR
FF-51 -
23AA-06021-0 EXCITER COILEXCITER COIL
-
33AA-06023-0 ALTERNATOR ASSY
for E TypeALTERNATOR ASSY
for E Type -
43V1-06071-0 PULSAR COILPULSAR COIL
-
53T5-10131-0 KEY 13.4-5-4
MagnetoKEY 13.4-5-4
Magneto -
6369-00132-0 NUT 12-P1.25NUT 12-P1.25
-
7940121-1200 WASHERWASHER
-
8910103-5630 BOLT
Exciter CoilBOLT
Exciter Coil -
9910103-5630 BOLT
Alternator for E TypeBOLT
Alternator for E Type -
10910103-5512 BOLT
Pulsar CoilBOLT
Pulsar Coil -
113V1-76148-0 SPIRAL TUBE PROTECTOR φ10-100
Alternator & Exciter Cord for E TypeSPIRAL TUBE PROTECTOR φ10-100
Alternator & Exciter Cord for E Type -
123AA-06167-0 CD UNIT CORD ASSYCD UNIT CORD ASSY
-
133KY-07612-0 * GROMMET* GROMMET
-
143A3-76037-0 CABLE TERMINAL PLUG
Remote Control Light Green & WhiteCABLE TERMINAL PLUG
Remote Control Light Green & White -
143A3-76037-0 CABLE TERMINAL PLUG
Stop Switch Brown & Black for EP/EPT TypeCABLE TERMINAL PLUG
Stop Switch Brown & Black for EP/EPT Type -
15910103-5612 BOLT
Ground CableBOLT
Ground Cable -
16910103-5612 BOLT
for MF TypeBOLT
for MF Type -
173V1-06061-1 CD UNIT BRACKETCD UNIT BRACKET
-
183T5-06920-0 RUBBER MOUNT 8.5-18-7RUBBER MOUNT 8.5-18-7
-
193C8-66308-0 WASHER 6-16-1.5
Cylinder Block SideWASHER 6-16-1.5
Cylinder Block Side -
203B7-06305-0 RUBBER MOUNT 9-16-4.3RUBBER MOUNT 9-16-4.3
-
213C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
223A0-76079-0 COLLAR 6.2-9-7.4COLLAR 6.2-9-7.4
-
23910103-0625 BOLTBOLT
-
243AA-06060-0 CD UNITCD UNIT
-
253V1-60108-0 PRE-COATED BOLT 6-16PRE-COATED BOLT 6-16
-
263C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
273V1-06900-1 ELECTRIC BRACKET ASSY
for E TypeELECTRIC BRACKET ASSY
for E Type -
283T5-06920-0 RUBBER MOUNT 8.5-18-7
for E TypeRUBBER MOUNT 8.5-18-7
for E Type -
293C8-66308-0 WASHER 6-16-1.5
Cylinder Block Side for E TypeWASHER 6-16-1.5
Cylinder Block Side for E Type -
303B7-06305-0 RUBBER MOUNT 9-16-4.3
for E TypeRUBBER MOUNT 9-16-4.3
for E Type -
313C8-66308-0 WASHER 6-16-1.5
Solenoid Switch Side for E TypeWASHER 6-16-1.5
Solenoid Switch Side for E Type -
323A0-76079-0 COLLAR 6.2-9-7.4
for E TypeCOLLAR 6.2-9-7.4
for E Type -
33910103-0620 BOLT
for E TypeBOLT
for E Type -
343T4-06972-1 CLAMP 6.5-87P
for EP/EPT TypeCLAMP 6.5-87P
for EP/EPT Type -
353H8-76040-0 STARTER SOLENOID
for E TypeSTARTER SOLENOID
for E Type -
36910103-5610 BOLT
for E TypeBOLT
for E Type -
373Z0-72580-0 PTT SOLENOID SWITCH (A)
for PT TypePTT SOLENOID SWITCH (A)
for PT Type -
389101E3-5620 BOLT
for EPT TypeBOLT
for EPT Type -
399301E3-0600 NUT
for EPT TypeNUT
for EPT Type -
403C8-72582-0 SOLENOID SWITCH CORD (A) L=80
Red for PT TypeSOLENOID SWITCH CORD (A) L=80
Red for PT Type -
413Y1-76145-0 TERMINAL CAP 8-13-28
Red Cord for PT TypeTERMINAL CAP 8-13-28
Red Cord for PT Type -
423Y1-76145-0 TERMINAL CAP 8-13-28
PTT Cord for PT TypeTERMINAL CAP 8-13-28
PTT Cord for PT Type -
433C8-72583-1 SOLENOID SWITCH CORD (B) L=150
Black for PT TypeSOLENOID SWITCH CORD (B) L=150
Black for PT Type -
443V1-06040-0 IGNITION COIL W/R-CAPIGNITION COIL W/R-CAP
-
453H6-06999-0 * PLUG CAP W/RESISTANCE* PLUG CAP W/RESISTANCE
-
46910103-5625 BOLTBOLT
-
473PR-06972-0 CLAMP 6.5-47.5P
Alternator & Exciter CordCLAMP 6.5-47.5P
Alternator & Exciter Cord -
48910103-5616 BOLTBOLT
-
493V5-72678-0 SEPARATE CORD (BLK)
Yellow & BlackSEPARATE CORD (BLK)
Yellow & Black -
503A3-76037-0 CABLE TERMINAL PLUG
Yellow Separate CordCABLE TERMINAL PLUG
Yellow Separate Cord -
513H6-07611-0 OIL PRESSURE SWITCHOIL PRESSURE SWITCH
-
523AA-76010-0 STARTER MOTOR ASSY
for E TypeSTARTER MOTOR ASSY
for E Type -
53350-76015-0 * PINION ASSY* PINION ASSY
-
543AA-76014-0 * BRUSH HOLDER* BRUSH HOLDER
-
553AA-76012-0 * POSITIVE BRUSH
Spring* POSITIVE BRUSH
Spring -
563AA-76013-0 * NEGATIVE BRUSH
Spring* NEGATIVE BRUSH
Spring -
579161F4-0830 BOLT
Starter MotorBOLT
Starter Motor -
589401E3-0800 WASHER
Starter MotorWASHER
Starter Motor -
593V1-76011-1 STARTER MOTOR BRACKET
for E TypeSTARTER MOTOR BRACKET
for E Type -
609161F4-0830 BOLT
BracketBOLT
Bracket -
619401E3-0800 WASHER
BracketWASHER
Bracket -
623AA-76065-0 RECTIFIER COMPLETE
for E TypeRECTIFIER COMPLETE
for E Type -
63910103-5616 BOLTBOLT
-
643AC-76120-0 BATTERY CABLE L=2500
for E TypeBATTERY CABLE L=2500
for E Type -
65910103-5610 BOLTBOLT
-
663AA-76145-0 TERMINAL CAP 13-13-28
RedTERMINAL CAP 13-13-28
Red -
673B2-76147-2 STARTER CABLE L=200
for E TypeSTARTER CABLE L=200
for E Type -
683V1-76148-0 SPIRAL TUBE PROTECTOR φ10-100
Starter CableSPIRAL TUBE PROTECTOR φ10-100
Starter Cable -
693Y0-76145-0 TERMINAL CAP 8-18-28
RedTERMINAL CAP 8-18-28
Red -
703Y1-76145-0 TERMINAL CAP 8-13-28
RedTERMINAL CAP 8-13-28
Red -
713V1-76066-0 FUSE WIRE ASSY L=185
for E TypeFUSE WIRE ASSY L=185
for E Type -
723T5-76247-0 * FUSE 20A* FUSE 20A
-
733R0-76064-0 FUSE HOLDER BRACKET
for E TypeFUSE HOLDER BRACKET
for E Type -
743V1-06284-1 CABLE TERMINAL HOLDER STAY
for E TypeCABLE TERMINAL HOLDER STAY
for E Type -
753AA-06281-1 CABLE TERMINAL HOLDER
for E TypeCABLE TERMINAL HOLDER
for E Type -
76174-35012-0 COLLAR 6-8-6COLLAR 6-8-6
-
77910103-5612 BOLTBOLT
-
78910103-5616 BOLTBOLT
-
793AA-06902-1 COVER
for E TypeCOVER
for E Type -
803V1-72028-0 WIRING DIAGRAM DECAL
for EF/EFT TypeWIRING DIAGRAM DECAL
for EF/EFT Type -
803V2-72028-1 WIRING DIAGRAM DECAL
for EP/EPT TypeWIRING DIAGRAM DECAL
for EP/EPT Type -
813V2-76110-0 CORD ASSY
for EPT TypeCORD ASSY
for EPT Type -
823V1-06133-0 PROTECTOR φ24-70
for MF TypePROTECTOR φ24-70
for MF Type -
833T4-06972-1 CLAMP 6.5-87P
for MF TypeCLAMP 6.5-87P
for MF Type
