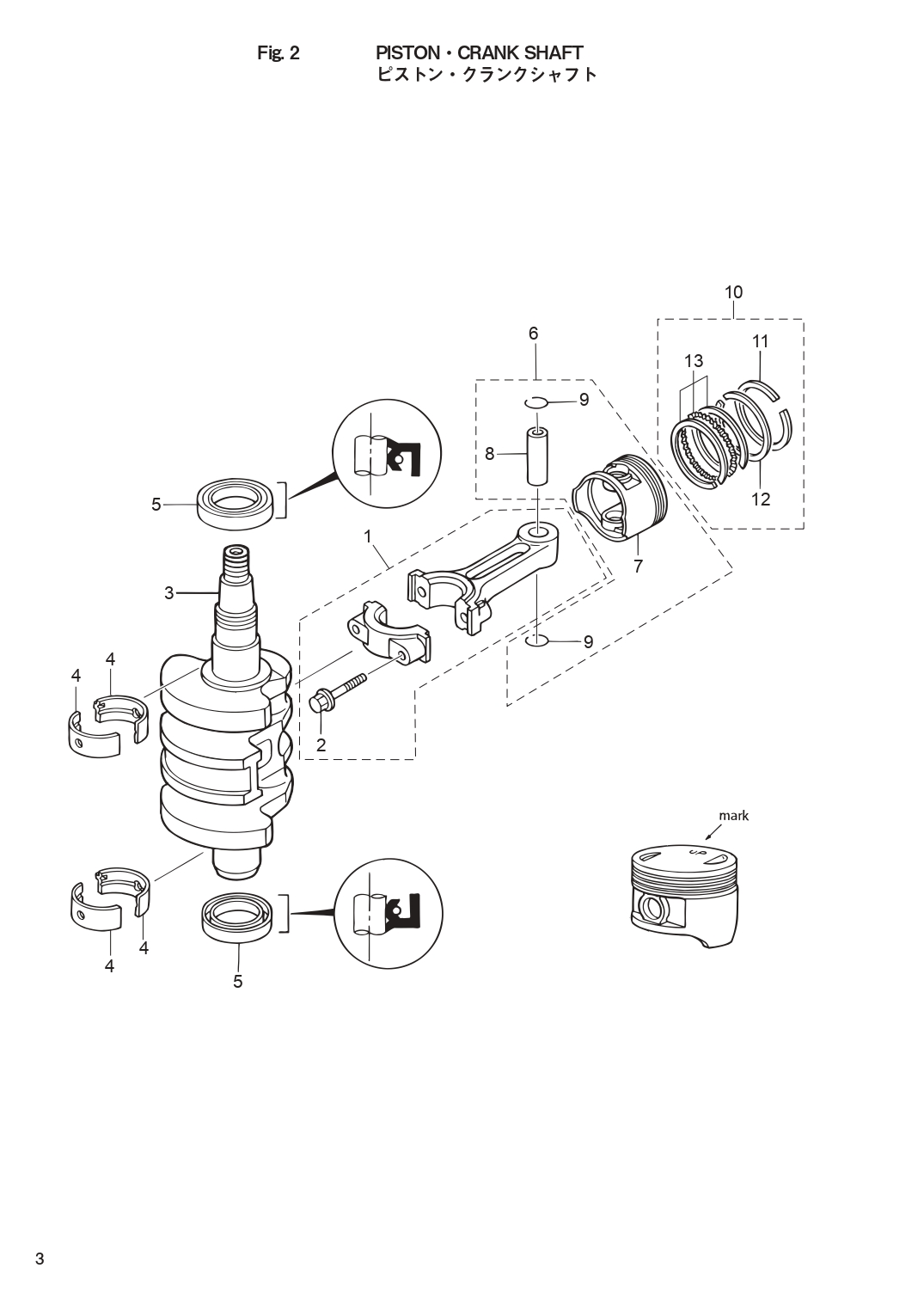

PISTON CRANK SHAFT для Tohatsu MFS8B - 2017 года выпуска`
-
№АртикулНазвание
-
13V1-00040-1 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
23H6-00059-0 * CONNECTING ROD BOLT* CONNECTING ROD BOLT
-
33V1-00030-1 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
43V1-07408-0 PLAIN SHAFT BEARING 30-33-15
Brown see Service ManualPLAIN SHAFT BEARING 30-33-15
Brown see Service Manual -
43V1-07407-0 PLAIN SHAFT BEARING 30-33-15
Black see Service ManualPLAIN SHAFT BEARING 30-33-15
Black see Service Manual -
53V1-00121-0 OIL SEAL 30-45-8OIL SEAL 30-45-8
-
63FK-87130-0 PISTON REPAIR KIT
STDPISTON REPAIR KIT
STD -
63FK-87131-0 PISTON REPAIR KIT (0.5 O/S)
OPTPISTON REPAIR KIT (0.5 O/S)
OPT -
73V1-00001-1 * PISTON
STD* PISTON
STD -
73V1-00004-1 * PISTON (0.5 O/S)
OPT* PISTON (0.5 O/S)
OPT -
8332-00021-1 * PISTON PIN* PISTON PIN
-
9350-00024-1 * PISTON PIN CLIP* PISTON PIN CLIP
-
103FK-87123-0 PISTON RING SET
STDPISTON RING SET
STD -
103FK-87124-0 PISTON RING SET (0.5 O/S)
OPTPISTON RING SET (0.5 O/S)
OPT -
113V1-00011-0 * PISTON RING
STD 1st* PISTON RING
STD 1st -
113V1-00014-0 * PISTON RING (0.5 O/S)
OPT 1st* PISTON RING (0.5 O/S)
OPT 1st -
123V1-00012-0 * PISTON RING
STD 2nd* PISTON RING
STD 2nd -
123V1-00015-0 * PISTON RING (0.5 O/S)
OPT 2nd* PISTON RING (0.5 O/S)
OPT 2nd -
133V1-00013-0 * PISTON RING-OIL
STD Oil* PISTON RING-OIL
STD Oil -
133V1-00016-0 * PISTON RING-OIL (0.5 O/S)
OPT Oil* PISTON RING-OIL (0.5 O/S)
OPT Oil
