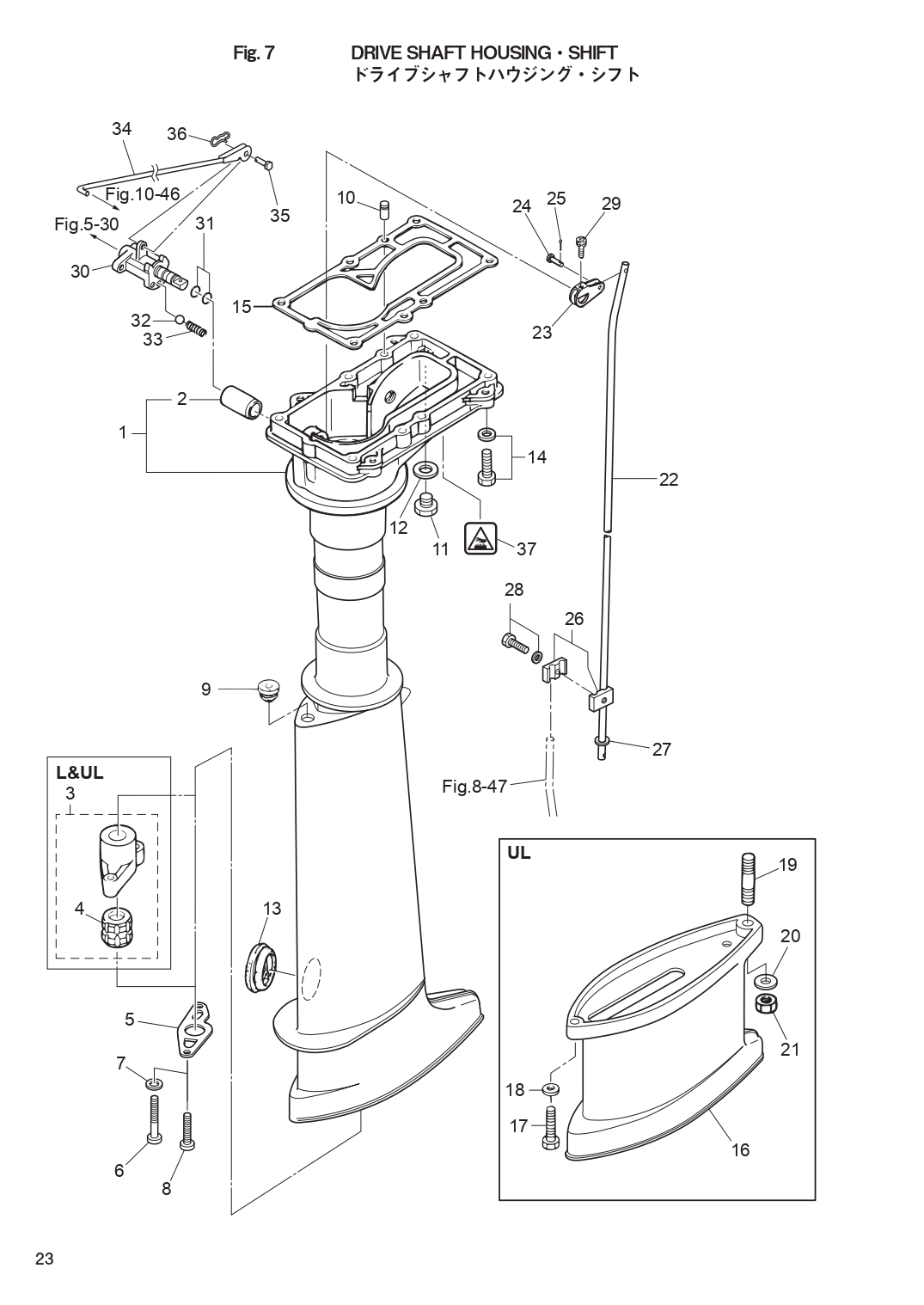

DRIVE SHAFT HOUSING SHIFT для Tohatsu MFS6C - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3H6Q61020-3 DRIVE SHAFT HOUSING ASSY (S)
    for Transom "S"
    DRIVE SHAFT HOUSING ASSY (S)
    for Transom "S"
  • 1
    3H6Q61030-4 DRIVE SHAFT HOUSING ASSY (L)
    for Transom "L" use 369-60003-0
    DRIVE SHAFT HOUSING ASSY (L)
    for Transom "L" use 369-60003-0
  • 1
    3ASQ61030-3 DRIVE SHAFT HOUSING ASSY (L)
    for Transom "UL" use 3AB-60003-0
    DRIVE SHAFT HOUSING ASSY (L)
    for Transom "UL" use 3AB-60003-0
  • 2
    301-61021-0 * BUSHING
    * BUSHING
  • 3
    369-64331-2 DRIVE SHAFT BUSHING ASSY
    Slate Color Bushing for Transom "L"
    DRIVE SHAFT BUSHING ASSY
    Slate Color Bushing for Transom "L"
  • 3
    3AS-64331-0 DRIVE SHAFT BUSHING ASSY
    Dark Brown Bushing for Transom "UL"
    DRIVE SHAFT BUSHING ASSY
    Dark Brown Bushing for Transom "UL"
  • 4
    369-60003-0 * DRIVE SHAFT BUSHING
    Slate Color for Transom "L"
    * DRIVE SHAFT BUSHING
    Slate Color for Transom "L"
  • 4
    3AB-60003-0 * DRIVE SHAFT BUSHING
    Dark Brown for Transom "UL"
    * DRIVE SHAFT BUSHING
    Dark Brown for Transom "UL"
  • 5
    369-64332-1 STOPPER
    STOPPER
  • 6
    3H6-64333-1 PRE-COATED SCREW 5-25
    for Transom "L"&"UL"
    PRE-COATED SCREW 5-25
    for Transom "L"&"UL"
  • 7
    9401E3-0500 WASHER
    for Transom "L"&"UL"
    WASHER
    for Transom "L"&"UL"
  • 8
    9215E3-0510 SCREW
    for Transom "S"
    SCREW
    for Transom "S"
  • 9
    369-66043-1 GROMMET 10.7-3.5
    GROMMET 10.7-3.5
  • 10
    345-01111-0 DOWEL PIN 6-12
    DOWEL PIN 6-12
  • 11
    9106E3-0808 BOLT
    BOLT
  • 12
    332-60006-0 GASKET 8.1-15-1
    GASKET 8.1-15-1
  • 13
    369-61016-0 GROMMET 29-3
    GROMMET 29-3
  • 14
    9101E3-5630 BOLT
    BOLT
  • 15
    3H6-61012-0 DRIVE SHAFT HOUSING GASKET
    DRIVE SHAFT HOUSING GASKET
  • 16
    369Q61110-2 EXTENSION HOUSING
    for Transom "UL"
    EXTENSION HOUSING
    for Transom "UL"
  • 17
    9161E3-0625 BOLT
    for Transom "UL"
    BOLT
    for Transom "UL"
  • 18
    9401E3-0600 WASHER
    for Transom "UL"
    WASHER
    for Transom "UL"
  • 19
    9152E3-0825 STUD
    for Transom "UL"
    STUD
    for Transom "UL"
  • 20
    9401E3-0800 WASHER
    for Transom "UL"
    WASHER
    for Transom "UL"
  • 21
    930103-0800 NUT
    for Transom "UL"
    NUT
    for Transom "UL"
  • 22
    369-66214-0 SHIFT ROD (S)
    for Transom "S"
    SHIFT ROD (S)
    for Transom "S"
  • 22
    3GR-66215-0 SHIFT ROD (L)
    for Transom "L"&"UL"
    SHIFT ROD (L)
    for Transom "L"&"UL"
  • 23
    369-66225-0 SHIFT ROD LEVER
    SHIFT ROD LEVER
  • 24
    369-66223-0 PIN
    PIN
  • 25
    951503-1210 SPLIT PIN
    SPLIT PIN
  • 26
    369-66241-0 SHIFT ROD JOINT ASSY
    SHIFT ROD JOINT ASSY
  • 27
    940103-0600 WASHER
    WASHER
  • 28
    910103-5616 BOLT
    BOLT
  • 29
    910903-6416 BOLT
    BOLT
  • 30
    3GR-66130-0 SHIFT LEVER SHAFT ASSY
    SHIFT LEVER SHAFT ASSY
  • 31
    301-66136-0 O-RING 1.9-8.8
    O-RING 1.9-8.8
  • 32
    3GR-66116-0 CERAMIC BALL 7.7
    CERAMIC BALL 7.7
  • 33
    3GR-66112-0 SPRING
    SPRING
  • 34
    3GR-66134-1 SHIFT LEVER ROD
    SHIFT LEVER ROD
  • 35
    3GR-66223-0 PIN
    PIN
  • 36
    3EF-65307-0 SNAP PIN
    SNAP PIN
  • 37
    3GR-76191-0 HIGH TEMPERATURE CAUTION DECAL
    HIGH TEMPERATURE CAUTION DECAL
