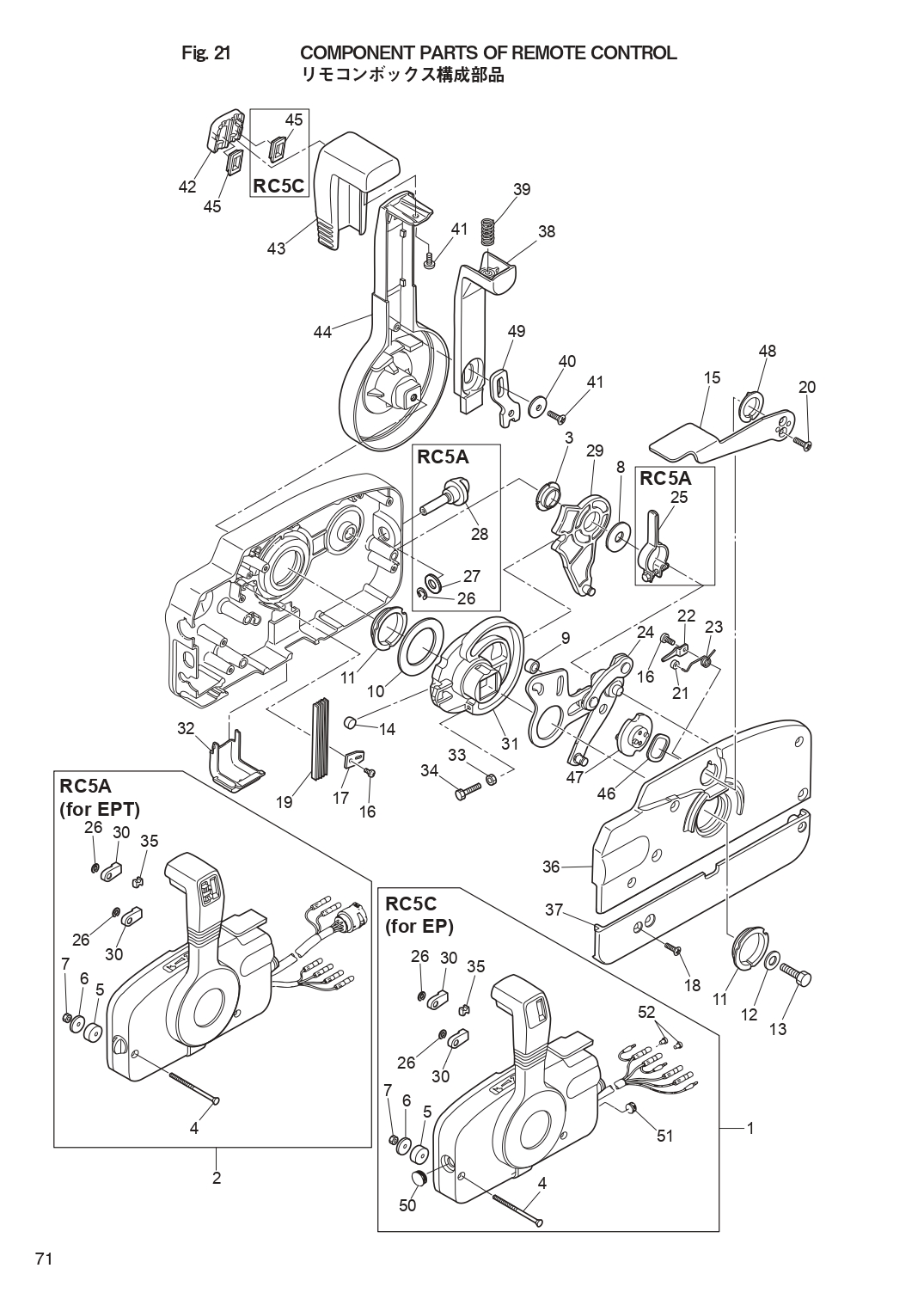

COMPONENT PARTS OF REMOTE CONTROL для Tohatsu MFS6BZ - 2017 года выпуска`
-
№АртикулНазвание
-
13B7Q84350-4 REMOTE CONTROL HEAD ASSY (RC5C)
for EP TypeREMOTE CONTROL HEAD ASSY (RC5C)
for EP Type -
33A3-84432-0 * BUSHING* BUSHING
-
43A3-84375-0 * SCREW* SCREW
-
53A3-84374-0 * SPACER* SPACER
-
6353-84371-0 * WASHER* WASHER
-
7930103-0600 * NUT* NUT
-
83A3-84383-0 * WASHER* WASHER
-
93A3-84421-0 * ROLLER* ROLLER
-
103A3-84422-0 * THRUST PLATE* THRUST PLATE
-
113A3-84431-0 * BUSHING* BUSHING
-
12940103-0800 * WASHER* WASHER
-
133A3-84442-0 * BOLT* BOLT
-
14353-84388-0 * DETENT ROLLER* DETENT ROLLER
-
153B7Q84312-0 * FREE THROTTLE LEVER* FREE THROTTLE LEVER
-
16921503-0406 * SCREW* SCREW
-
173A3-84423-0 * DETENT RETAINER* DETENT RETAINER
-
18921603-0518 * SCREW* SCREW
-
193A3-84307-0 * DETENT SPRING* DETENT SPRING
-
20921603-0512 * SCREW* SCREW
-
213A3-84424-0 * FREE THROTTLE ROLLER* FREE THROTTLE ROLLER
-
223A3-84426-0 * ROLLER RETAINER* ROLLER RETAINER
-
233A3-84425-0 * FREE THROTTLE SPRING* FREE THROTTLE SPRING
-
243A3-84365-1 * THROTTLE ARM* THROTTLE ARM
-
26945303-0600 * E-RING d=6
RC5C* E-RING d=6
RC5C -
293A3-84381-0 * SHIFT GEAR ASSY* SHIFT GEAR ASSY
-
303A3-83314-2 * CABLE TERMINAL* CABLE TERMINAL
-
313A3-84364-2 * DRIVE GEAR* DRIVE GEAR
-
323A3-84429-0 * WIRE COVER* WIRE COVER
-
33930103-0500 * NUT* NUT
-
34910103-0525 * BOLT* BOLT
-
353A3-84376-0 * GROMMET* GROMMET
-
363B7Q84441-0 * REAR HOUSING* REAR HOUSING
-
373B7Q84366-0 * REAR PANEL* REAR PANEL
-
383A3-84401-0 * NEUTRAL LOCK ARM* NEUTRAL LOCK ARM
-
393A3-84403-0 * NEUTRAL LOCK SPRING* NEUTRAL LOCK SPRING
-
403A3-84407-0 * WASHER* WASHER
-
41921503-0510 * SCREW* SCREW
-
423A3-84451-0 * TILT SWITCH COVER* TILT SWITCH COVER
-
433A3-84404-0 * GRIP* GRIP
-
443B7Q84343-0 * CONTROL LEVER* CONTROL LEVER
-
453A3-84452-0 * TILT SWITCH PLUG
RC5C* TILT SWITCH PLUG
RC5C -
463A3-84368-0 * WAVE WASHER* WAVE WASHER
-
473A3-84391-0 * FREE THROTTLE DRUM* FREE THROTTLE DRUM
-
483A3-84435-0 * BUSHING* BUSHING
-
493A3-84406-0 * PLATE* PLATE
-
50361-84414-0 * GROMMET
RC5C* GROMMET
RC5C -
51361-84415-0 * GROMMET
RC5C* GROMMET
RC5C -
523A3-76037-0 * CABLE TERMINAL PLUG
RC5C* CABLE TERMINAL PLUG
RC5C
