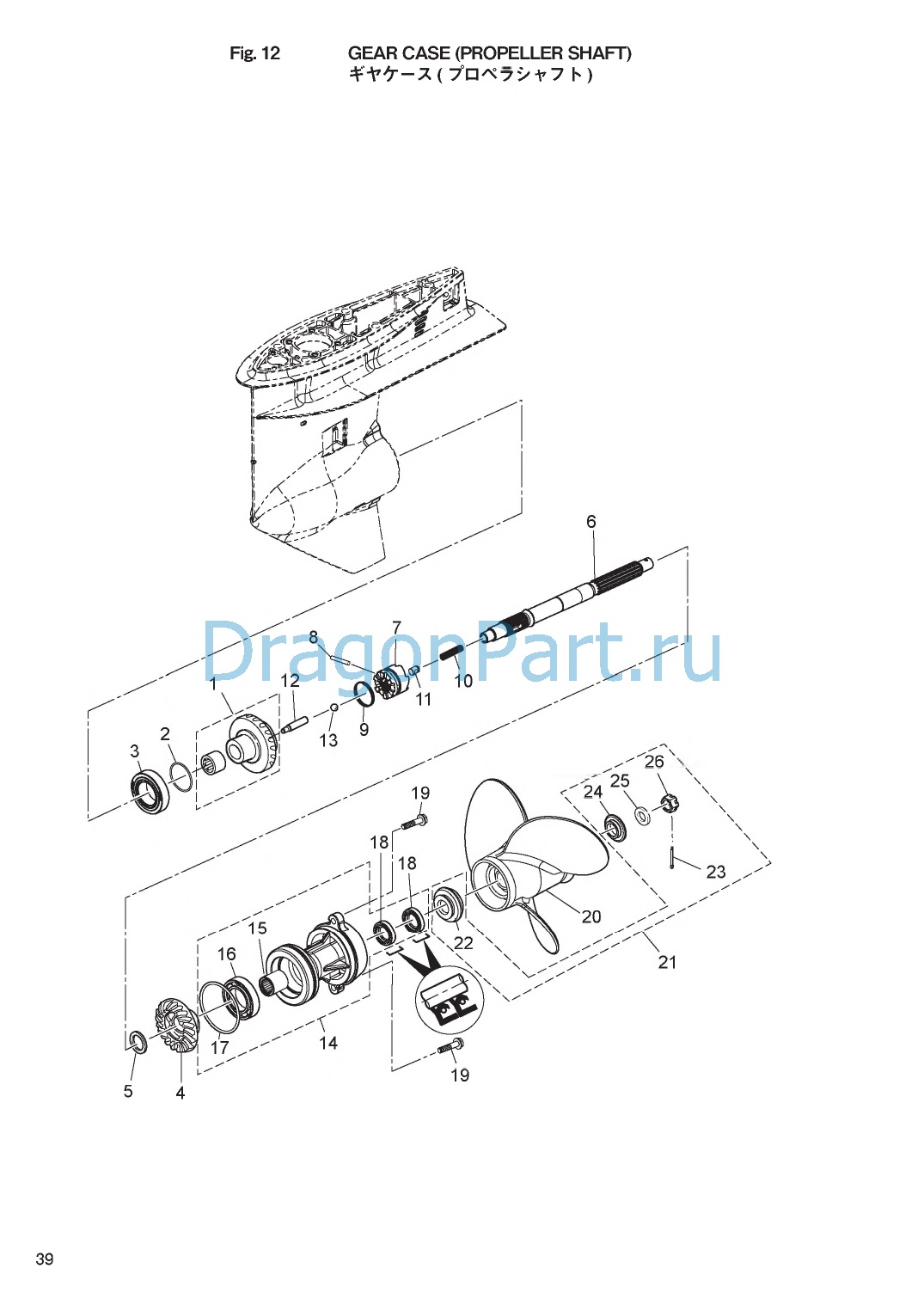

GEAR CASE (PROPELLER SHAFT) для Tohatsu MFS40A - 2017 года выпуска`
-
№АртикулНазвание
-
13KY-64010-0 BEVEL GEAR ASSYBEVEL GEAR ASSY
-
2353-64038-0 SHIM 36-44-0.1
t=0.1SHIM 36-44-0.1
t=0.1 -
2353-64037-0 SHIM 36-44-0.15
t=0.15SHIM 36-44-0.15
t=0.15 -
2353-64036-0 SHIM 36-44-0.3
t=0.3SHIM 36-44-0.3
t=0.3 -
3345-60215-0 TAPERED ROLLER BEARING 32007TAPERED ROLLER BEARING 32007
-
43KY-64030-0 BEVEL GEARBEVEL GEAR
-
53KY-64032-0 WASHER 22.1-26-3WASHER 22.1-26-3
-
63KY-64211-0 PROPELLER SHAFTPROPELLER SHAFT
-
73KY-64215-0 CLUTCHCLUTCH
-
83C8-64217-0 PINPIN
-
93C8-64219-1 SNAPSNAP
-
103C8-64221-0 SPRINGSPRING
-
113C8-64222-0 SPRING RETAINERSPRING RETAINER
-
123KY-64223-0 PUSH RODPUSH ROD
-
13965002-0803 BALL 3/8BALL 3/8
-
143KYQ87323-0 PROPELLER SHAFT HOUSING ASSY
3KYW87323-0 for White Color ModelPROPELLER SHAFT HOUSING ASSY
3KYW87323-0 for White Color Model -
153KY-60102-0 * ROLLER BEARING* ROLLER BEARING
-
169601-0-6007 * BALL BEARING 6007* BALL BEARING 6007
-
173KY-60103-0 * O-RING* O-RING
-
183F3-60223-0 * OIL SEAL 22-37-8* OIL SEAL 22-37-8
-
199101E3-5830 BOLTBOLT
-
20348B64108-1 PROPELLER ASSY (7")
OPT 4 x 290 x 180PROPELLER ASSY (7")
OPT 4 x 290 x 180 -
203T5B64518-0 PROPELLER ASSY (9")
OPT 3x311x229PROPELLER ASSY (9")
OPT 3x311x229 -
203T5B64523-0 PROPELLER ASSY (11")
OPT 3 x 290 x 279PROPELLER ASSY (11")
OPT 3 x 290 x 279 -
203T5B64525-0 PROPELLER ASSY (12")
OPT 3 x 283 x 305PROPELLER ASSY (12")
OPT 3 x 283 x 305 -
203T5B64527-0 PROPELLER ASSY (13")
40ps STD 3 x 277 x 330PROPELLER ASSY (13")
40ps STD 3 x 277 x 330 -
203T5B64529-0 PROPELLER ASSY (14")
50ps STD 3 x 279 x 356PROPELLER ASSY (14")
50ps STD 3 x 279 x 356 -
203T5B64532-0 PROPELLER ASSY (15")
OPT 3 x 278 x 381PROPELLER ASSY (15")
OPT 3 x 278 x 381 -
203KYB64534-0 PROPELLER ASSY (16")
OPT 3 x 406 x 279PROPELLER ASSY (16")
OPT 3 x 406 x 279 -
203KYB64536-0 PROPELLER ASSYC17")
OPT 3 x 432 x 280PROPELLER ASSYC17")
OPT 3 x 432 x 280 -
213TW-87326-0 PROPELLER HARDWARE KITPROPELLER HARDWARE KIT
-
223C8-64231-0 * THRUST HOLDER* THRUST HOLDER
-
23951503-0325 * SPLIT PIN 3-25* SPLIT PIN 3-25
-
243TW-64232-0 * STOPPER* STOPPER
-
253TW-64124-0 * WASHER 17-40-3* WASHER 17-40-3
-
26353-64121-0 * PROPELLER NUT M16P1.5* PROPELLER NUT M16P1.5
