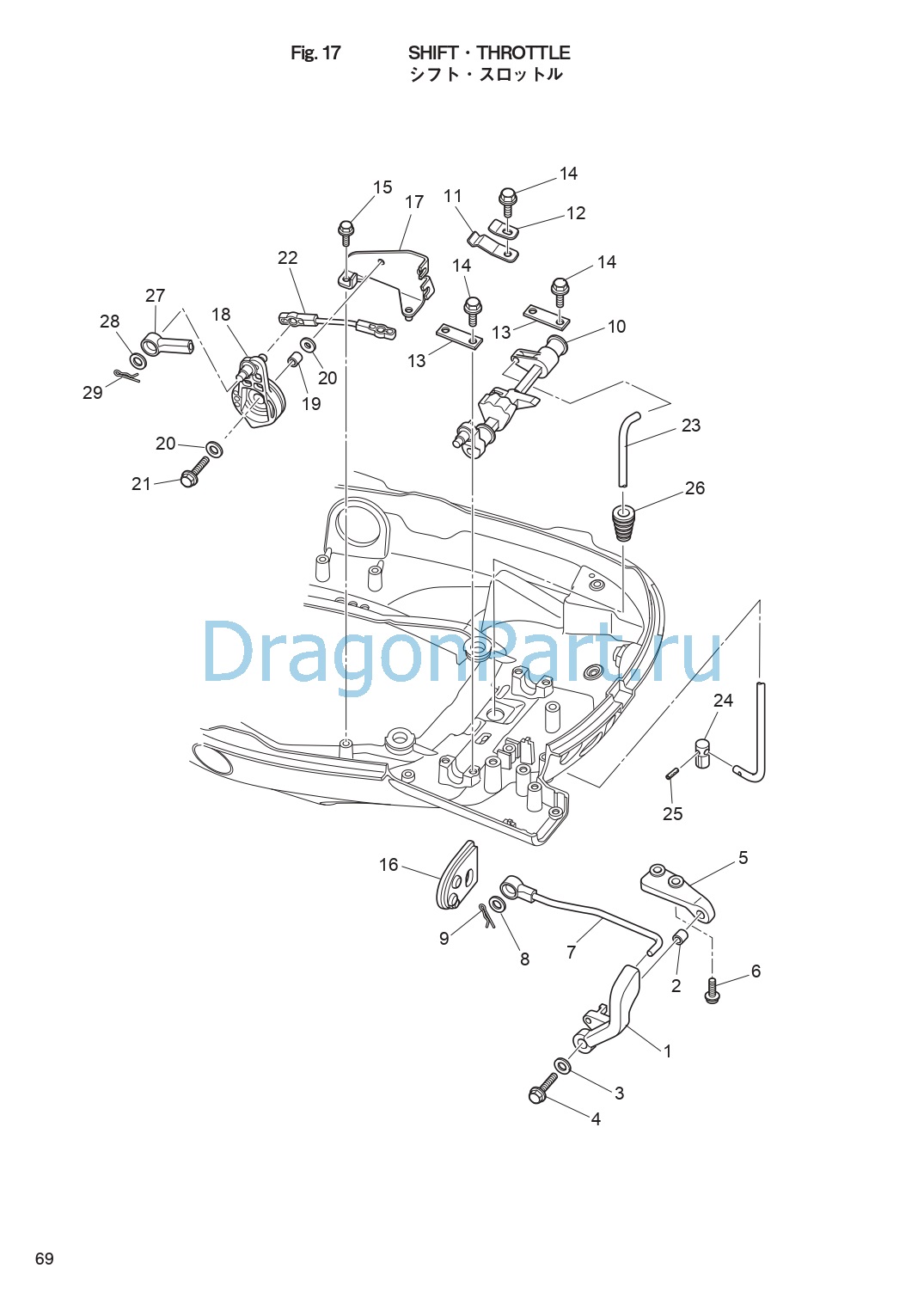

SHIFT THROTTLE для Tohatsu MFS30C - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3Y3-66110-0 SHIFT LEVER
    for MF/EF/EFG Type
    SHIFT LEVER
    for MF/EF/EFG Type
  • 2
    3H6-63619-1 COLLAR 6.5-10.5-10
    for MF/EF/EFG Type
    COLLAR 6.5-10.5-10
    for MF/EF/EFG Type
  • 3
    346-67115-0 WASHER 6.5-21-1
    for MF/EF/EFG Type
    WASHER 6.5-21-1
    for MF/EF/EFG Type
  • 4
    9101E3-0625 BOLT
    for MF/EF/EFG Type
    BOLT
    for MF/EF/EFG Type
  • 5
    3NVQ67480-0 SHIFT LEVER BRACKET
    for MF/EF/EFG Type
    SHIFT LEVER BRACKET
    for MF/EF/EFG Type
  • 6
    9101E3-5616 BOLT
    for MF/EF/EFG Type
    BOLT
    for MF/EF/EFG Type
  • 7
    3NW-66134-0 SHIFT LEVER ROD
    for MF/EF/EFG Type
    SHIFT LEVER ROD
    for MF/EF/EFG Type
  • 8
    3AA-83719-0 WASHER 8.5-18-1.6
    WASHER 8.5-18-1.6
  • 9
    951603-0800 SNAP PIN d=8
    for MF/EF/EFG Type
    SNAP PIN d=8
    for MF/EF/EFG Type
  • 10
    3NV-66130-0 SHIFT LEVER SHAFT ASSY
    SHIFT LEVER SHAFT ASSY
  • 11
    3GF-66113-1 SHIFT LEVER STOPPER
    SHIFT LEVER STOPPER
  • 12
    3C8-66116-0 SHIFT LEVER STOPPER
    SHIFT LEVER STOPPER
  • 13
    3V1-66145-0 HOLDER
    HOLDER
  • 14
    9101E3-5612 BOLT
    BOLT
  • 15
    9101E3-5612 BOLT
    Throttle Wire Bracket
    BOLT
    Throttle Wire Bracket
  • 16
    3NV-63621-0 GROMMET
    for MF/EF/EFG Type
    GROMMET
    for MF/EF/EFG Type
  • 17
    3NV-63508-0 THROTTLE WIRE BRACKET
    THROTTLE WIRE BRACKET
  • 18
    3NV-63622-0 THROTTLE DRUM ASSY
    THROTTLE DRUM ASSY
  • 19
    3KY-76079-0 COLLAR 6.5-10.5-9.3
    COLLAR 6.5-10.5-9.3
  • 20
    3C8-66308-0 WASHER 6-16-1.5
    WASHER 6-16-1.5
  • 21
    910103-0620 BOLT
    BOLT
  • 22
    3NV-63617-0 THROTTLE ROD
    THROTTLE ROD
  • 23
    3R0-66211-0 SHIFT ROD
    SHIFT ROD
  • 24
    3AL-66241-1 SHIFT ROD JOINT
    SHIFT ROD JOINT
  • 25
    951403-0312 SPRING PIN 3-12
    SPRING PIN 3-12
  • 26
    3M2-66226-0 GROMMET 17-3
    GROMMET 17-3
  • 27
    3B7-83715-2 CABLE JOINT
    for EP/EH/EPT/EHT Type
    CABLE JOINT
    for EP/EH/EPT/EHT Type
  • 28
    3AA-83719-0 WASHER 8.5-18-1.6
    for EP/EH/EPT/EHT Type
    WASHER 8.5-18-1.6
    for EP/EH/EPT/EHT Type
  • 29
    951603-0800 SNAP PIN d=8
    for EP/EH/EPT/EHT Type
    SNAP PIN d=8
    for EP/EH/EPT/EHT Type
