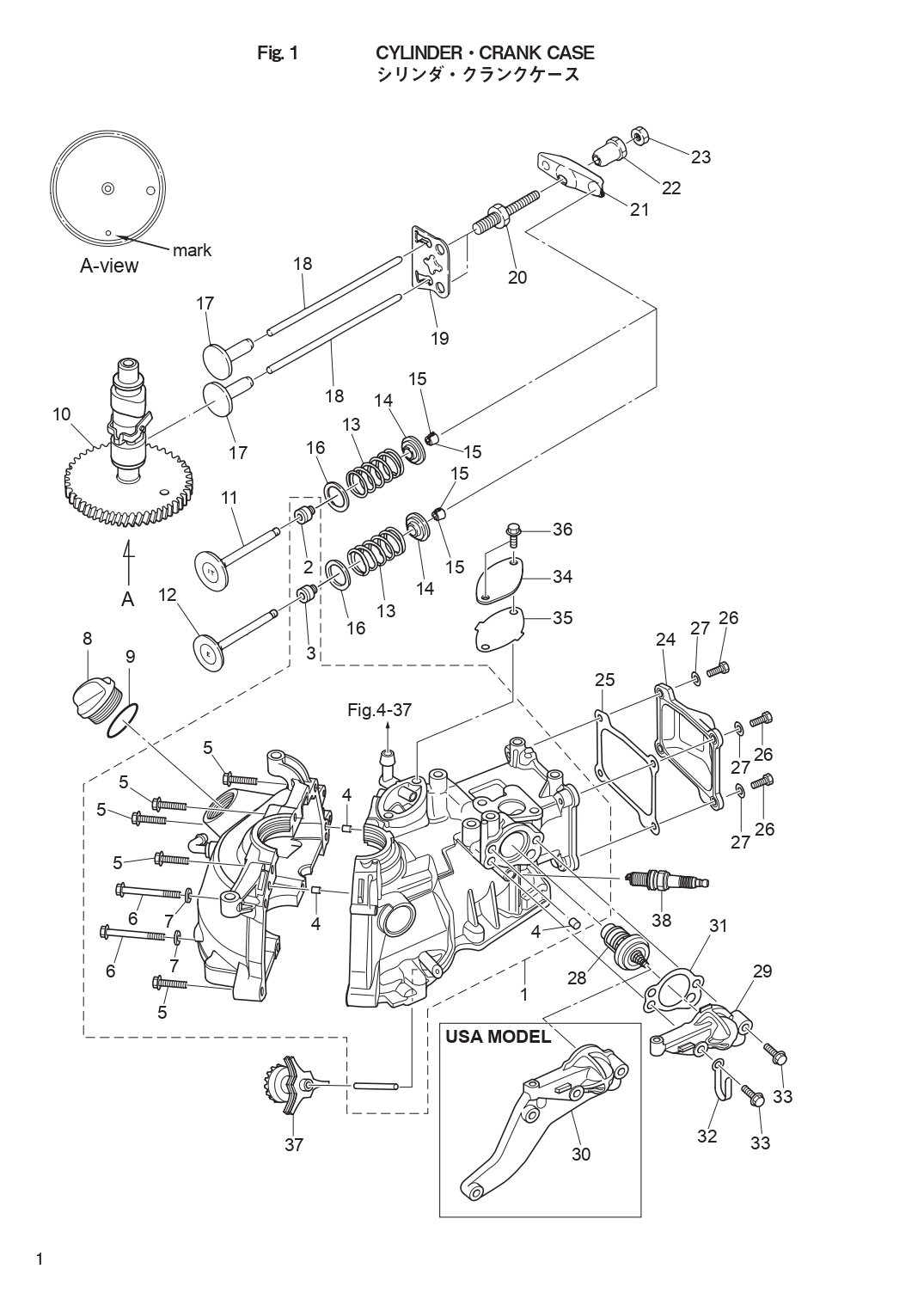

CYLINDER CRANK CASE для Tohatsu MFS2.5B - 2017 года выпуска`
-
№АртикулНазвание
-
13GTB01100-2 CYL BLOCK & CRANKCASE ASSY
NippleCYL BLOCK & CRANKCASE ASSY
Nipple -
23R3-07204-0 * INTAKE VALVE STEM SEAL
Black* INTAKE VALVE STEM SEAL
Black -
33R3-07206-0 * EXHAUST VALVE STEM SEAL
Green* EXHAUST VALVE STEM SEAL
Green -
4345-01111-0 * DOWEL PIN 6-12* DOWEL PIN 6-12
-
59101F4-5635 * BOLT* BOLT
-
69161F9-0675 * BOLT* BOLT
-
79401E3-0600 * WASHER* WASHER
-
83R0-71015-1 OIL FILLER CAPOIL FILLER CAP
-
93R0-07422-0 O-RING 3.1-24.4O-RING 3.1-24.4
-
103GT-07810-0 CAMSHAFT ASSYCAMSHAFT ASSY
-
113AB-07201-0 INTAKE VALVEINTAKE VALVE
-
123V1-07202-0 EXHAUST VALVEEXHAUST VALVE
-
133AE-07203-0 VALVE SPRING L=35VALVE SPRING L=35
-
143V1-07221-0 RETAINERRETAINER
-
153H6-07223-0 COTTERCOTTER
-
163H6-07205-0 VALVE SPRING SEATVALVE SPRING SEAT
-
173AB-07231-0 LIFTERLIFTER
-
183H6-07232-0 PUSH RODPUSH ROD
-
193AB-07233-0 PLATEPLATE
-
203H6-07234-0 PIVOT BOLTPIVOT BOLT
-
213AB-07235-0 ROCKER ARMROCKER ARM
-
223H6-07236-0 PIVOTPIVOT
-
233H6-07937-0 ADJUSTING NUTADJUSTING NUT
-
243ABB01021-0 CYLINDER HEAD COVERCYLINDER HEAD COVER
-
253AB-01024-1 CYLINDER HEAD COVER GASKETCYLINDER HEAD COVER GASKET
-
26910103-0616 BOLTBOLT
-
273C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
283H6-01030-0 THERMOSTAT
Mark 52B PRVTHERMOSTAT
Mark 52B PRV -
293ABB01031-0 THERMOSTAT CAP
STDTHERMOSTAT CAP
STD -
303GTB01031-0 THERMOSTAT CAP
for USA Model Bracket,Fuel PumpTHERMOSTAT CAP
for USA Model Bracket,Fuel Pump -
313AB-01032-0 THERMOSTAT CAP GASKETTHERMOSTAT CAP GASKET
-
32398-06972-0 CLAMP 6.5-67PCLAMP 6.5-67P
-
339101E3-5630 BOLTBOLT
-
343AB-07431-0 BREATHER CHAMBER COVERBREATHER CHAMBER COVER
-
353AB-07432-0 GASKETGASKET
-
36910103-5616 BOLTBOLT
-
373AB-07640-0 SLINGERSLINGER
-
389701-1-1103 SPARK PLUG(DCPR6E)
NGKSPARK PLUG(DCPR6E)
NGK -
13GTB01100-2 CYL BLOCK & CRANKCASE ASSY
NippleCYL BLOCK & CRANKCASE ASSY
Nipple
