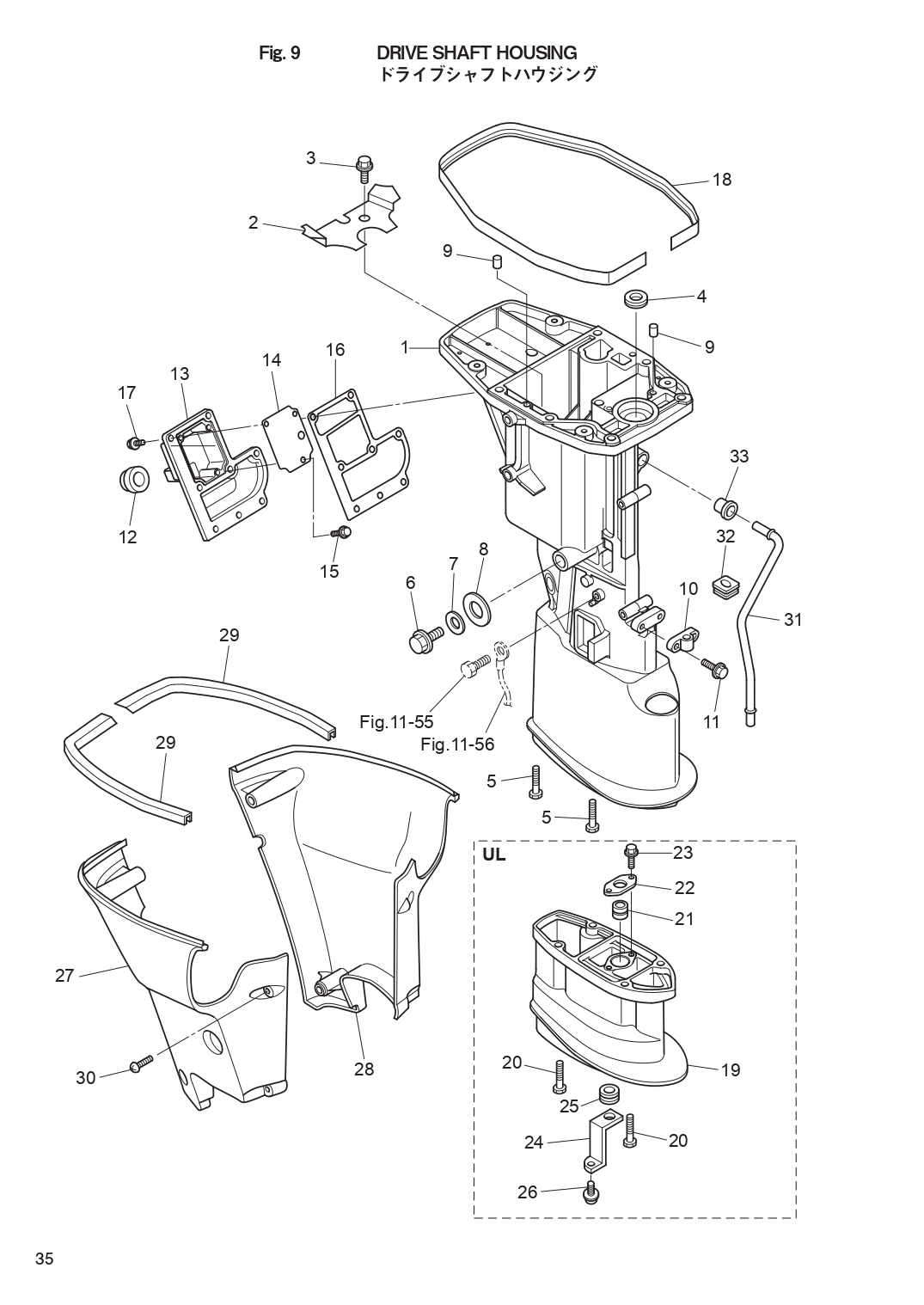

DRIVE SHAFT HOUSING для Tohatsu MFS20D - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3BKQ61020-2 DRIVE SHAFT HOUSING ASSY (S)
    for Transom "S"
    DRIVE SHAFT HOUSING ASSY (S)
    for Transom "S"
  • 1
    3BKQ61030-1 DRIVE SHAFT HOUSING ASSY (L)
    for Transom "L"&"UL"
    DRIVE SHAFT HOUSING ASSY (L)
    for Transom "L"&"UL"
  • 2
    3V9-07440-0 GUIDE PLATE
    GUIDE PLATE
  • 3
    910103-5612 BOLT
    BOLT
  • 4
    350-01215-1 OIL SEAL 12.8-25-7
    OIL SEAL 12.8-25-7
  • 5
    3BJ-60001-0 BOLT 8-31
    BOLT 8-31
  • 6
    3R3-07705-1 DRAIN BOLT 14-14
    DRAIN BOLT 14-14
  • 7
    3R3-07406-0 WASHER 14.5-24-1
    WASHER 14.5-24-1
  • 8
    3R3-67017-0 GROMMET 20-60
    GROMMET 20-60
  • 9
    345-01111-0 DOWEL PIN 6-12
    DOWEL PIN 6-12
  • 10
    3V6-66037-0 CAM ROD HOLDER
    CAM ROD HOLDER
  • 11
    9101E3-5620 BOLT
    BOLT
  • 12
    3BJ-61207-0 IDLE EXHAUST PORT GROMMET
    IDLE EXHAUST PORT GROMMET
  • 13
    3BJQ61208-0 IDLE EXHAUST PORT COVER
    IDLE EXHAUST PORT COVER
  • 14
    3BJ-62114-0 PLATE
    PLATE
  • 15
    9101E3-0512 BOLT
    BOLT
  • 16
    3BJ-61220-0 IDLE EXHAUST PORT GASKET
    IDLE EXHAUST PORT GASKET
  • 17
    9101F4-5616 BOLT
    BOLT
  • 18
    3R3-67116-0 ENGINE BASEMENT SEAL L=835
    ENGINE BASEMENT SEAL L=835
  • 19
    3BJQ61110-0 EXTENSION HOUSING
    for Transom "UL"
    EXTENSION HOUSING
    for Transom "UL"
  • 20
    3BJ-60001-0 BOLT 8-31
    for Transom "UL"
    BOLT 8-31
    for Transom "UL"
  • 21
    3BJ-60003-0 DRIVE SHAFT BUSHING
    for Transom "UL"
    DRIVE SHAFT BUSHING
    for Transom "UL"
  • 22
    3V1-64332-0 STOPPER
    for Transom "UL"
    STOPPER
    for Transom "UL"
  • 23
    9101E3-5612 BOLT
    for Transom "UL"
    BOLT
    for Transom "UL"
  • 24
    3Z0-65203-0 LOCK PLATE
    for Transom "UL"
    LOCK PLATE
    for Transom "UL"
  • 25
    3V1-65204-0 WATER PIPE AUXILIARY MOUNT 13-2.5
    for Transom "UL"
    WATER PIPE AUXILIARY MOUNT 13-2.5
    for Transom "UL"
  • 26
    9215E3-0510 SCREW
    for Transom "UL"
    SCREW
    for Transom "UL"
  • 27
    3R3Q67003-1 DRIVE SHAFT HOUSING COVER (R)
    Starboard Side
    DRIVE SHAFT HOUSING COVER (R)
    Starboard Side
  • 28
    3R3Q67004-1 DRIVE SHAFT HOUSING COVER (L)
    Port Side
    DRIVE SHAFT HOUSING COVER (L)
    Port Side
  • 29
    3R3-61213-0 SEAL L=360
    SEAL L=360
  • 30
    3R0-61217-0 TAPPING SCREW 6-60
    TAPPING SCREW 6-60
  • 31
    3H8-65100-0 WATER PIPE (S)
    for Transom "S"
    WATER PIPE (S)
    for Transom "S"
  • 31
    3H8-65110-0 WATER PIPE (L)
    for Transom "L"
    WATER PIPE (L)
    for Transom "L"
  • 31
    3BJ-65120-0 WATER PIPE (UL)
    for Transom "UL"
    WATER PIPE (UL)
    for Transom "UL"
  • 32
    3R3-65204-0 WATER PIPE AUXILIARY MOUNT
    WATER PIPE AUXILIARY MOUNT
  • 33
    3R3-65206-1 WATER PIPE SEAL (UPPER)
    WATER PIPE SEAL (UPPER)
