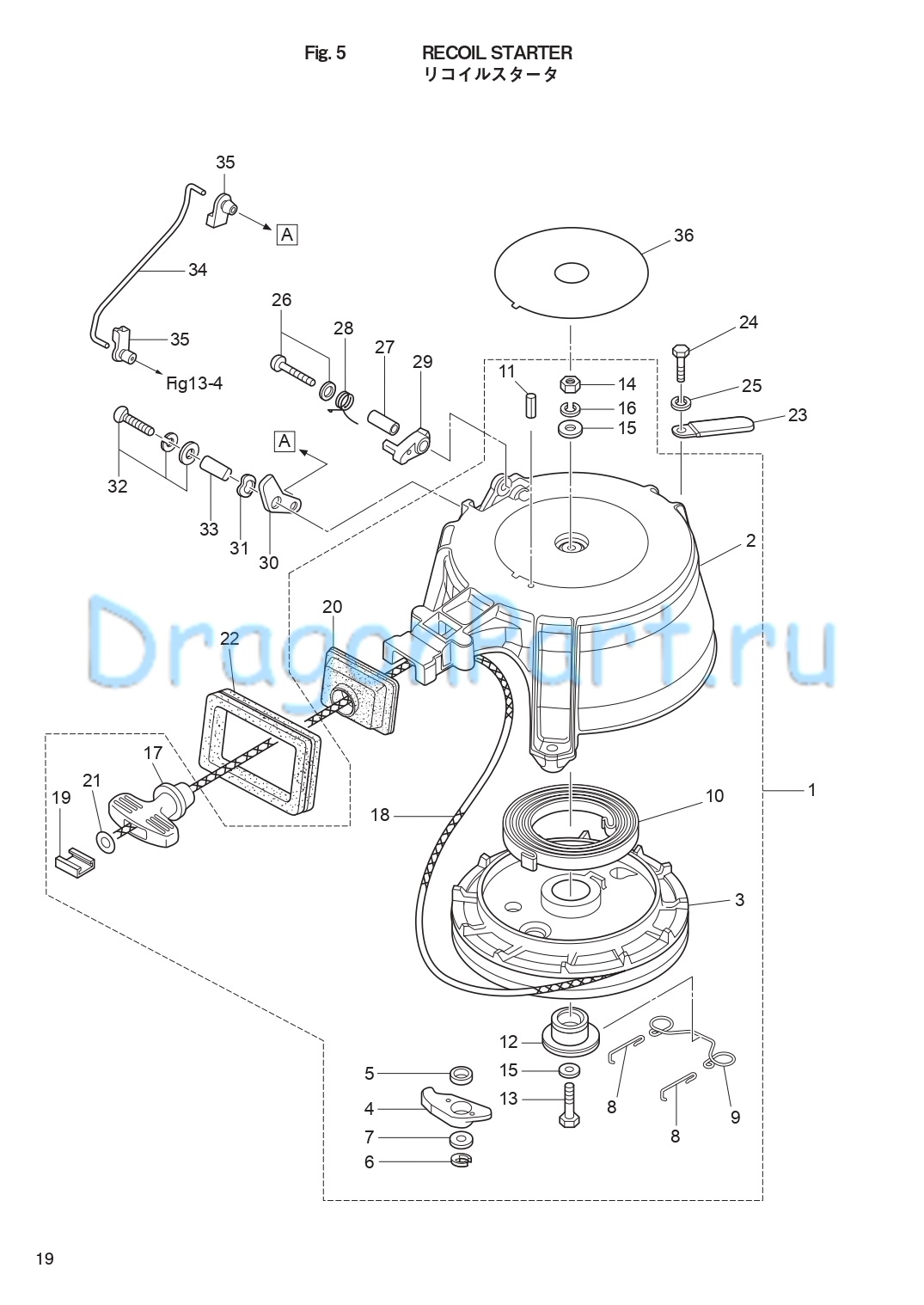

RECOIL STARTER для Tohatsu M9.9D2 - 2017 года выпуска`
-
№АртикулНазвание
-
1350-05000-3 RECOIL STARTER ASSYRECOIL STARTER ASSY
-
2350-05105-1 * STARTER CASE* STARTER CASE
-
3350-05104-1 * REEL ASSY* REEL ASSY
-
4345-05003-1 * RATCHET* RATCHET
-
5345-05135-1 * BUSHING 14.7-15.9-6* BUSHING 14.7-15.9-6
-
6945303-0500 * E-RING d=5* E-RING d=5
-
7346-67115-0 * WASHER 6.5-21-1* WASHER 6.5-21-1
-
8350-05123-0 * RETURN SPRING* RETURN SPRING
-
9350-05124-0 * RETURN SPRING* RETURN SPRING
-
10345-05004-1 * STARTER SPRING* STARTER SPRING
-
11951403-0316 * SPRING PIN 3-16* SPRING PIN 3-16
-
12350-05132-0 * STARTER SHAFT* STARTER SHAFT
-
139101F4-0635 * BOLT* BOLT
-
14930103-0600 * NUT* NUT
-
15940121-0600 * WASHER* WASHER
-
16941322-0600 * SPRING WASHER* SPRING WASHER
-
17338-05019-0 * STARTER HANDLE* STARTER HANDLE
-
18350-05013-1 * STARTER ROPE Ø5-1600* STARTER ROPE Ø5-1600
-
19338-05131-0 * ROPE ANCHOR* ROPE ANCHOR
-
20350-05116-1 * SEALING PLATE* SEALING PLATE
-
21350-05136-0 * O-RING 2.5-4.5* O-RING 2.5-4.5
-
223KM-67503-0 STARTER SEALSTARTER SEAL
-
233PR-06972-0 CLAMP 6.5-47.5PCLAMP 6.5-47.5P
-
243M3-02319-0 BOLT 30mm
Recoil StarterBOLT 30mm
Recoil Starter -
25940103-0600 WASHERWASHER
-
26921503-5430 SCREWSCREW
-
27338-05255-0 COLLAR 4-6-21COLLAR 4-6-21
-
28338-05216-0 STARTER LOCK SPRINGSTARTER LOCK SPRING
-
29338-05252-0 STARTER LOCKSTARTER LOCK
-
30350-05253-0 STARTER LOCK CAMSTARTER LOCK CAM
-
31941403-0800 WAVE WASHER d=8WAVE WASHER d=8
-
32921503-7616 SCREWSCREW
-
333M2-05215-0 COLLAR 6.1-8-4COLLAR 6.1-8-4
-
34350-05217-0 STARTER LOCK RODSTARTER LOCK ROD
-
35345-05223-1 ROD SNAP 3.5-2ROD SNAP 3.5-2
-
363NV-72181-0 CAUTION DECAL (B)CAUTION DECAL (B)
