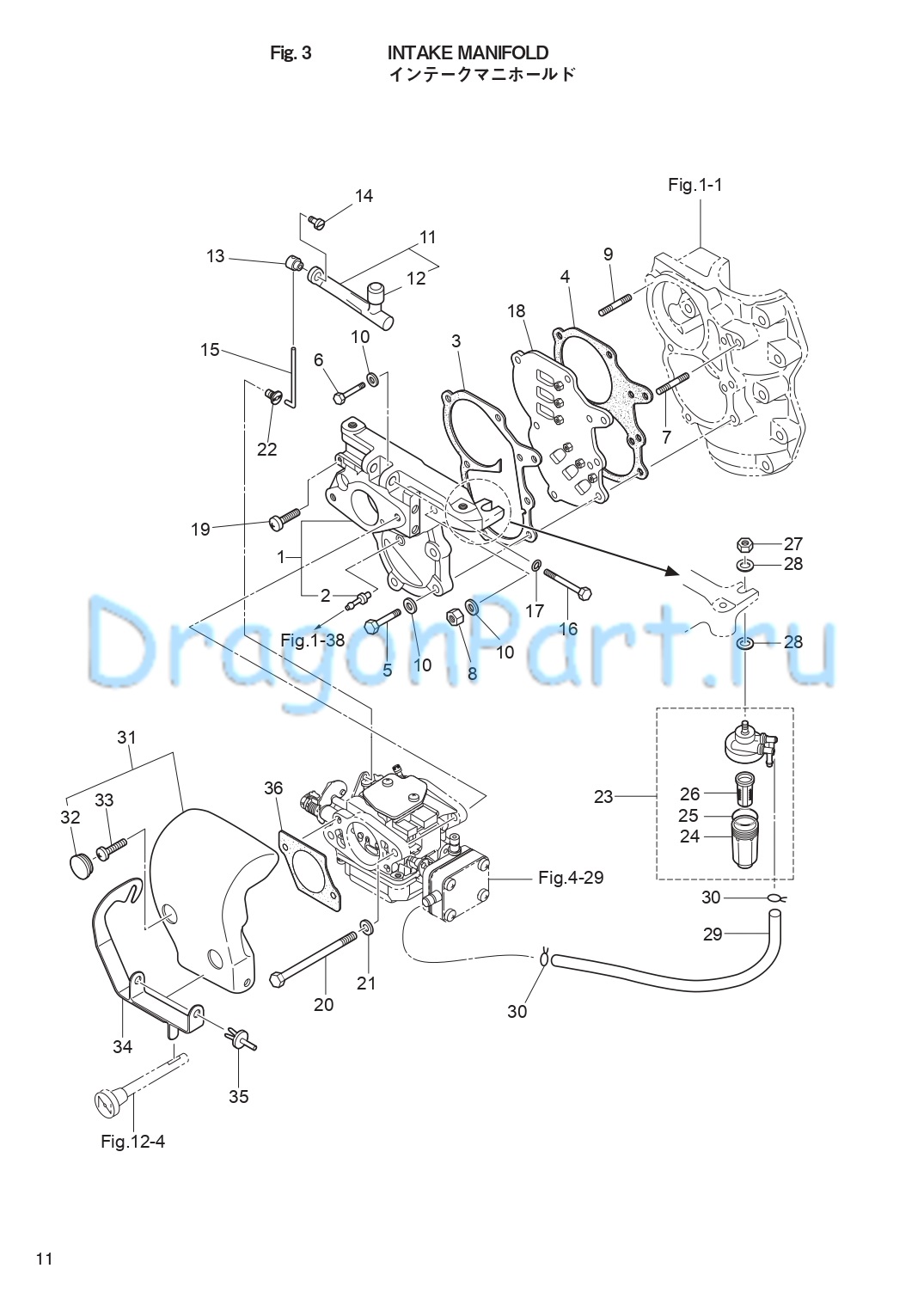

INTAKE MAINFOLD для Tohatsu M9.9D2 - 2017 года выпуска`
-
№АртикулНазвание
-
13M2B02010-1 INTAKE MANIFOLD ASSY
BlackINTAKE MANIFOLD ASSY
Black -
2338-01131-1 * NIPPLE 4.8-5* NIPPLE 4.8-5
-
3350-02104-2 INTAKE MANIFOLD GASKET
Intake Manifold SideINTAKE MANIFOLD GASKET
Intake Manifold Side -
4350-02105-3 INTAKE MANIFOLD GASKET
Crankcase SideINTAKE MANIFOLD GASKET
Crankcase Side -
5916124-0628 BOLTBOLT
-
6916124-0635 BOLTBOLT
-
7915324-0625 STUDSTUD
-
8930121-0600 NUTNUT
-
9915324-0630 STUDSTUD
-
10940121-0600 WASHERWASHER
-
113M2-03167-0 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
123M2-03171-0 * THROTTLE ROLLER* THROTTLE ROLLER
-
13350-03176-0 THROTTLE LEVER ENDTHROTTLE LEVER END
-
14910903-0506 BOLTBOLT
-
15350-03174-0 RODROD
-
16916103-0550 BOLTBOLT
-
17940103-0500 WASHERWASHER
-
18362-02100-1 REED VALVE ASSYREED VALVE ASSY
-
199215F1-0620 SCREWSCREW
-
20916103-0680 BOLTBOLT
-
21940103-0600 WASHERWASHER
-
223G2-67196-0 ROD SNAP 3.4-1.6ROD SNAP 3.4-1.6
-
233AD-02230-0 FUEL FILTER ASSYFUEL FILTER ASSY
-
243AD-02237-0 * CUP* CUP
-
253AD-02235-0 * O-RING* O-RING
-
263AD-02234-0 * FILTER* FILTER
-
27930103-0800 NUTNUT
-
28334-66233-0 WASHER 8.1-16-1.5WASHER 8.1-16-1.5
-
2998AB-50-220 HOSE
Fuel Filter-Fuel Pump 98AB-501000HOSE
Fuel Filter-Fuel Pump 98AB-501000 -
30338-02215-0 CLIP Ø10CLIP Ø10
-
313G2-02411-0 INTAKE SILENCERINTAKE SILENCER
-
32345-67117-0 * GROMMET 17-2.7* GROMMET 17-2.7
-
33922553-0512 SCREWSCREW
-
343G2-67152-0 CHOKE LEVERCHOKE LEVER
-
35350-67154-0 PLASTIC RIVET 6.5PLASTIC RIVET 6.5
-
363G2-02414-1 INTAKE SILENCER GASKETINTAKE SILENCER GASKET
