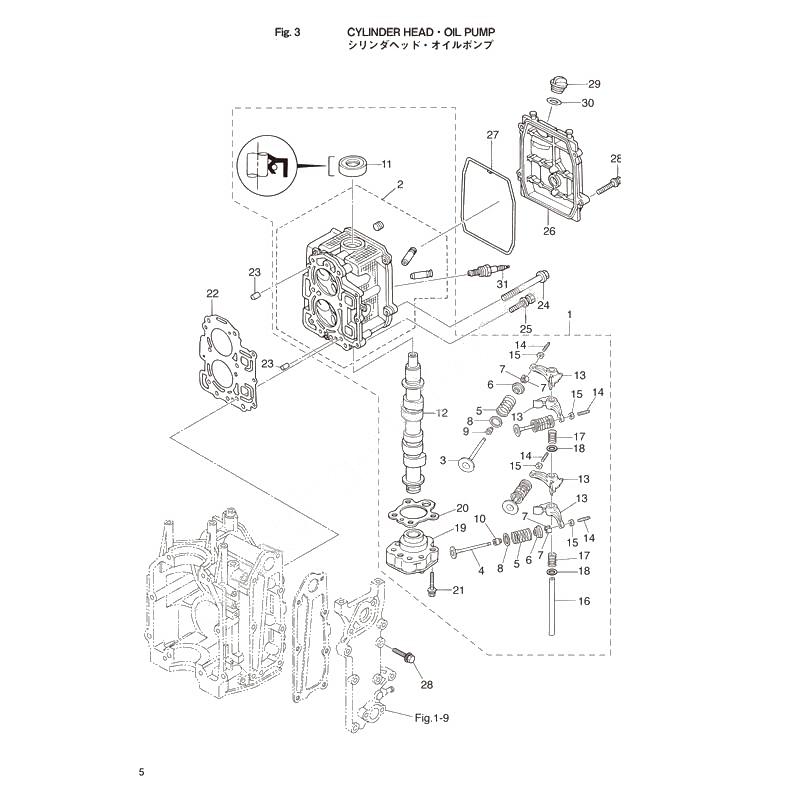

Cylinder head oil pump для Tohatsu MFS8B - 2016 года выпуска`
-
№АртикулНазвание
-
13V1B01000-4 シリンダーヘッドコンプリートシリンダーヘッドコンプリート
-
23V1B01001-0 Cylinder Head Comp.Cylinder Head Comp.
-
33V1-07201-0 Intake ValveIntake Valve
-
43V1-07202-0 Exhaust ValveExhaust Valve
-
53AA-07203-0 Valbe SpringValbe Spring
-
63V1-07221-0 RetainerRetainer
-
73H6-07223-0 CotterCotter
-
83V1-07205-0 Seat,Valve SpringSeat,Valve Spring
-
93R3-07204-0 Seal, In Valve Stem
ブラックSeal, In Valve Stem
ブラック -
103R3-07206-0 Seal, EX Valve Stem
グリーンSeal, EX Valve Stem
グリーン -
113H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
123Y4-07810-0 CamshaftCamshaft
-
133Y2-07935-0 Rocker armRocker arm
-
143R0-07238-0 ScrewScrew
-
153H8-07237-0 NutNut
-
163Y2-07920-0 Shaft rocker armShaft rocker arm
-
173AA-07225-0 Rocker Shaft SpringRocker Shaft Spring
-
183R3-07227-0 Washer, 13.2-21.8-2Washer, 13.2-21.8-2
-
193V1-07600-0 Oil PumpOil Pump
-
203V1-07653-0 Gasket,Oil PumpGasket,Oil Pump
-
21910114-5635 New partNew part
-
9101E3-5635 New partNew part
-
223V1-01005-0 Cykinder Head GasketCykinder Head Gasket
-
23345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
243H8-01012-1 ボルト 8-50ボルト 8-50
-
25910114-5625 BoltBolt
-
263V1B01021-0 Cover Cylinder HeadCover Cylinder Head
-
273V1-01024-0 Gasket HeadcoverGasket Headcover
-
28910103-5625 Bolt
シリンダーヘッドカバーBolt
シリンダーヘッドカバー -
293R0-71015-1 Filler Cap,Engine OilFiller Cap,Engine Oil
-
303R0-07422-0 Oリング 3.1-24.4Oリング 3.1-24.4
-
31DCPR6E NGK スパークプラグ《1本》 (一体型) (10)
NGKNGK スパークプラグ《1本》 (一体型) (10)
NGK
