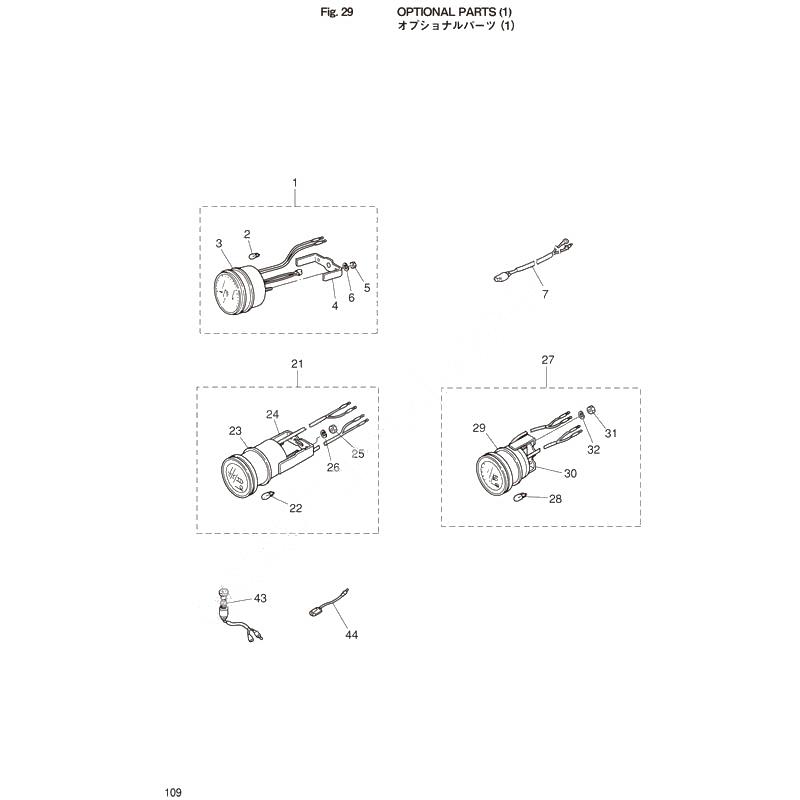

Optional parts (1) для Tohatsu MD50B2 - 2016 года выпуска`
-
№АртикулНазвание
-
13B7-72530-2 Tachometer Ass'y
EFモデルTachometer Ass'y
EFモデル -
23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
33B7-72656-0 Damper, MeterDamper, Meter
-
43B7-72661-0 Plate, FittingPlate, Fitting
-
5930103-0500 NutNut
-
6941303-0500 Spring WasherSpring Washer
-
73T5-72539-0 Lead Wire, Tachometer
EFモデルLead Wire, Tachometer
EFモデル -
213E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
223B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
233B7-72655-0 Damper, MeterDamper, Meter
-
243B7-72664-0 Plate FittingPlate Fitting
-
25930203-0400 NutNut
-
26941303-0400 Spring WasherSpring Washer
-
273E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
283B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
293B7-72655-0 Damper, MeterDamper, Meter
-
303B7-72662-0 Plate, FittingPlate, Fitting
-
31930203-0400 NutNut
-
32941303-0400 Spring WasherSpring Washer
-
43353-72521-1 Switch Meter Lamp
EPモデルSwitch Meter Lamp
EPモデル -
44353-72546-0 Assist Cord(Red)
EPモデルAssist Cord(Red)
EPモデル
