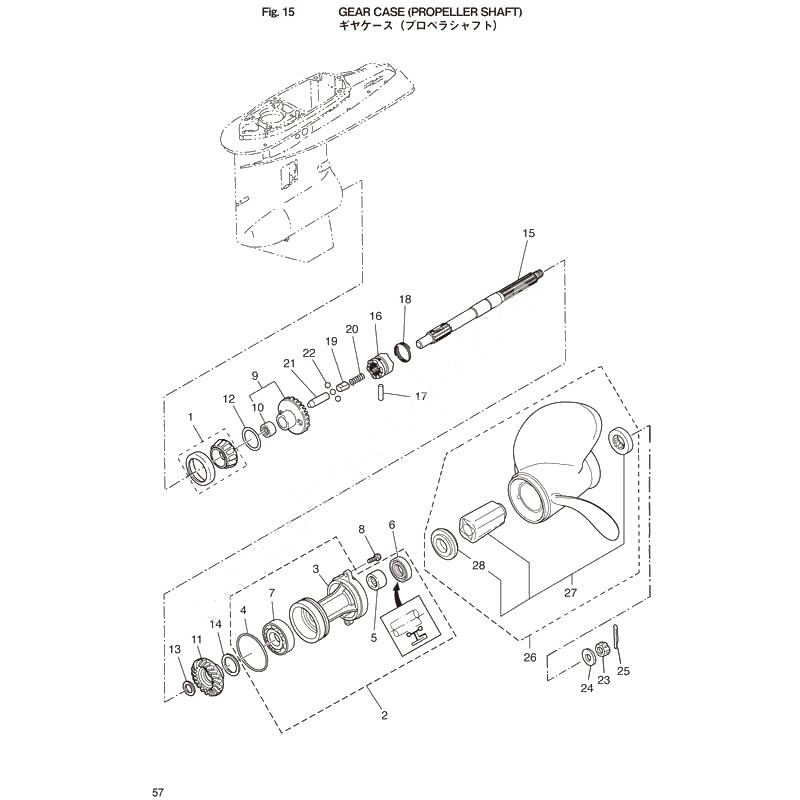

GEAR CASE (PROPELLER SHAFT) для Tohatsu MD115A2 - 2016 года выпуска`
-
№АртикулНазвание
-
13C7-60215-0 Bearing 30209Bearing 30209
-
23B7Q87323-1 Propeller shaft housing assyPropeller shaft housing assy
-
33B7Q60101-1 Propeller shaft housingPropeller shaft housing
-
43B7-60103-0 O-RingO-Ring
-
53B7-60211-0 Needle Bearing, 30-40-30Needle Bearing, 30-40-30
-
63B7-60111-0 Oil SealOil Seal
-
79601-0-6208 Ball BearingBall Bearing
-
83C7-60108-2 ボルト 8-30 プレコートボルト 8-30 プレコート
-
93C7-64010-0 Bevel Gear A Ass'yBevel Gear A Ass'y
-
103B7-64011-0 Needle Bearing, 25-32-26Needle Bearing, 25-32-26
-
113T1-64093-0 Bevel Gear CBevel Gear C
-
123B7-64016-0 Shim, 47-57-0.1
選択Shim, 47-57-0.1
選択 -
133B7-64035-0 Washer, t=3.0
選択Washer, t=3.0
選択 -
143B7-64037-0 Shim, 42-50-0.1
選択Shim, 42-50-0.1
選択 -
153B7-64211-0 Propeller ShaftPropeller Shaft
-
163T1-64215-2 ClutchClutch
-
173B7-64218-0 Clutch PinClutch Pin
-
183B7-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
193T1-64222-0 スプリングホルダークラッチスプリングホルダークラッチ
-
20346-64221-0 Spring ClutchSpring Clutch
-
213T1-64223-0 Push RodPush Rod
-
223T1-64224-0 BallBall
-
23353-64121-0 Nut PropellerNut Propeller
-
24345-64124-0 Washer 17-32-3Washer 17-32-3
-
25951503-0325 Split PinSplit Pin
-
263HKB64545-0 プロペラアッシ (21)
OPT 3x335x533プロペラアッシ (21)
OPT 3x335x533 -
273HK-64238-0 Propeller Hub KitPropeller Hub Kit
-
283HK-64235-0 Forward thrust washerForward thrust washer
