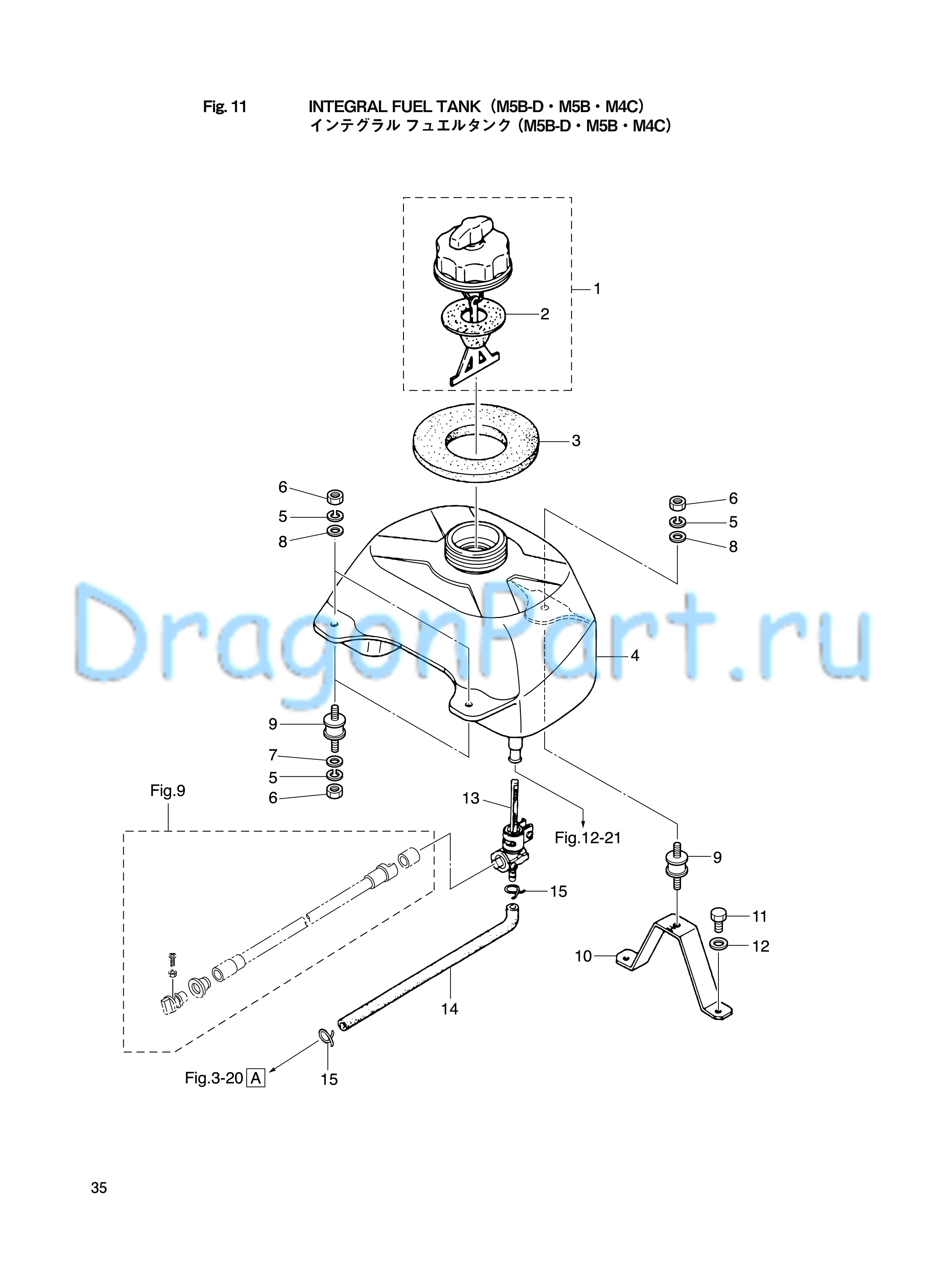

INTEGRAL FUEL TANK для Tohatsu M5B - 2016 года выпуска`
-
№АртикулНазвание
-
1393-70020-6 FUEL TANK CAP ASSYFUEL TANK CAP ASSY
-
23D6-70021-0 * TANK FILLER CAP GASKET* TANK FILLER CAP GASKET
-
3369-70036-2 FUEL TANK SEALFUEL TANK SEAL
-
4369-70316-4 FUEL TANKFUEL TANK
-
5941303-0600 SPRING WASHERSPRING WASHER
-
6930103-0600 NUTNUT
-
73C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
8345-05122-1 WASHER 6.5-23-1.5WASHER 6.5-23-1.5
-
9369-70057-0 FUEL TANK MOUNT
STDFUEL TANK MOUNT
STD -
93F9-70057-0 FUEL TANK MOUNT
OPT Large SizeFUEL TANK MOUNT
OPT Large Size -
10369-70312-1 FUEL TANK STAYFUEL TANK STAY
-
119101F4-0616 BOLTBOLT
-
12940103-0600 WASHERWASHER
-
13369-70311-0 FUEL COCK ASSY
Fuel Valve for M5B,M4CFUEL COCK ASSY
Fuel Valve for M5B,M4C -
14369-70315-0 FUEL HOSE
Fuel Valve-F/Pump for M5B,M4CFUEL HOSE
Fuel Valve-F/Pump for M5B,M4C -
15338-02215-0 CLIP ?10
for M5B,M4CCLIP ?10
for M5B,M4C
