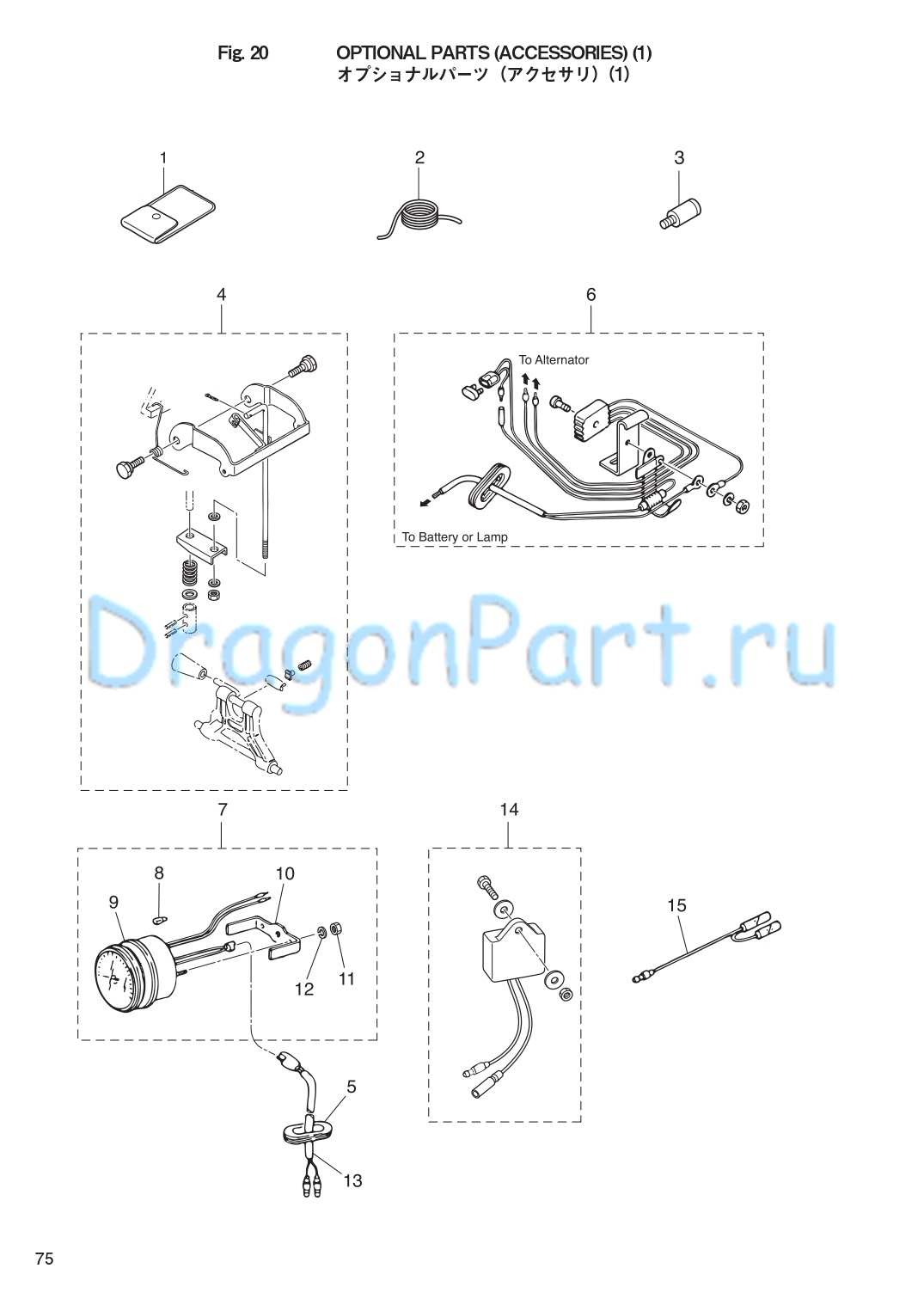

OPTIONAL PARTS (ACCESSORIES) (1) для Tohatsu M30H - 2016 года выпуска`
-
№АртикулНазвание
-
13C8-72100-1 TOOL KITTOOL KIT
-
23B7-72201-0 SAFETY ROPE
for M25/30H & 25JETSAFETY ROPE
for M25/30H & 25JET -
3336-60007-0 FLUSHING PLUGFLUSHING PLUG
-
43P0-66901-0 REVERSE LOCK SHIFT LEVER KITREVERSE LOCK SHIFT LEVER KIT
-
5345-67169-0 GROMMET
for M25/30H & 25JETGROMMET
for M25/30H & 25JET -
6346-76160-2 RECTIFIER KIT
M25/30H & 25JET for MFRECTIFIER KIT
M25/30H & 25JET for MF -
73B7-72530-2 TACHOMETER ASSY
for M25/30H & 25JETTACHOMETER ASSY
for M25/30H & 25JET -
83B7-72659-0 * METER BULB* METER BULB
-
93B7-72656-0 * METER DAMPER* METER DAMPER
-
103B7-72661-0 * FITTING PLATE* FITTING PLATE
-
11930103-0500 * NUT* NUT
-
12941303-0500 * SPRING WASHER* SPRING WASHER
-
13361-72539-0 TACHOMETER LEAD WIRE
for M25/30H & 25JETTACHOMETER LEAD WIRE
for M25/30H & 25JET -
143P0-72679-0 TACHOMETER UNIT KIT
for M25/30H & 25JETTACHOMETER UNIT KIT
for M25/30H & 25JET -
15361-72542-0 SEPARATE CORD
White for M25/30H & 25JETSEPARATE CORD
White for M25/30H & 25JET -
15361-72543-0 SEPARATE CORD
Yellow for M25/30H & 25JETSEPARATE CORD
Yellow for M25/30H & 25JET
