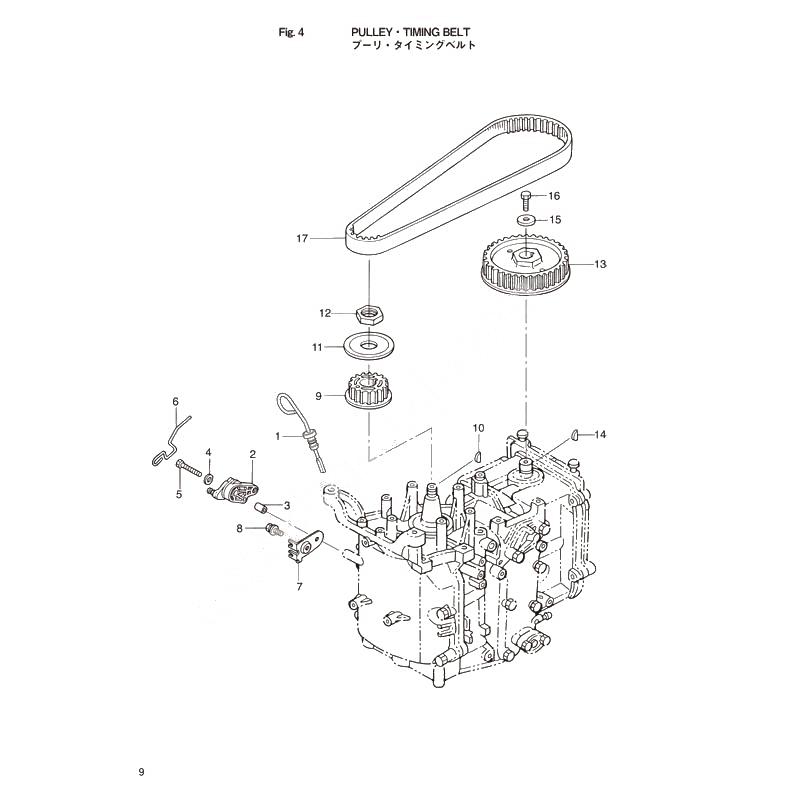

Pulley timing belt для Tohatsu MFS8A3 - 2015 года выпуска`
-
№АртикулНазвание
-
13V1-07421-0 Oil Lebel GaugeOil Lebel Gauge
-
23V1-63622-0 Throttle DramThrottle Dram
-
3346-67114-1 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
43C8-66308-0 ワッシャ 6-16-1.5ワッシャ 6-16-1.5
-
5910103-0630 New partNew part
-
9101E3-0630 New partNew part
-
63V1-63617-1 Throttle RodThrottle Rod
-
73V1-63508-1 BracketBracket
-
3V1-63508-0 BracketBracket
-
8910103-5612 BoltBolt
-
93V1-10060-0 Drive Pulley
タイミングプーリーDrive Pulley
タイミングプーリー -
103T5-10131-0 Key, Drive Pulley
クランクシャフトKey, Drive Pulley
クランクシャフト -
113V1-10063-0 Belt GuideBelt Guide
-
123V1-10068-0 NutNut
-
133H8-10062-2 Driven Pulley
カムシャフト プーリーDriven Pulley
カムシャフト プーリー -
14309-00131-0 Key, Magneto
カムシャフトKey, Magneto
カムシャフト -
153H8-10066-0 Washer, 6.5-19-3.2Washer, 6.5-19-3.2
-
163AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
173V1-10045-0 Timing BeltTiming Belt
